A motor grader is a piece of mechanical equipment that uses a scraper blade installed between its front and rear axles and can be flexibly raised and lowered, rotated and extended to level the ground. It is mainly used in road engineering.
A bulldozer is a machine that uses a tractor as the prime mover and a bulldozer with a soil-cutting blade. It is used to clear land, road structures or similar tasks and has a wide range of applications.
Here are the core differences between the two:
1. Main functions/Fonctions principales/Funciones principales

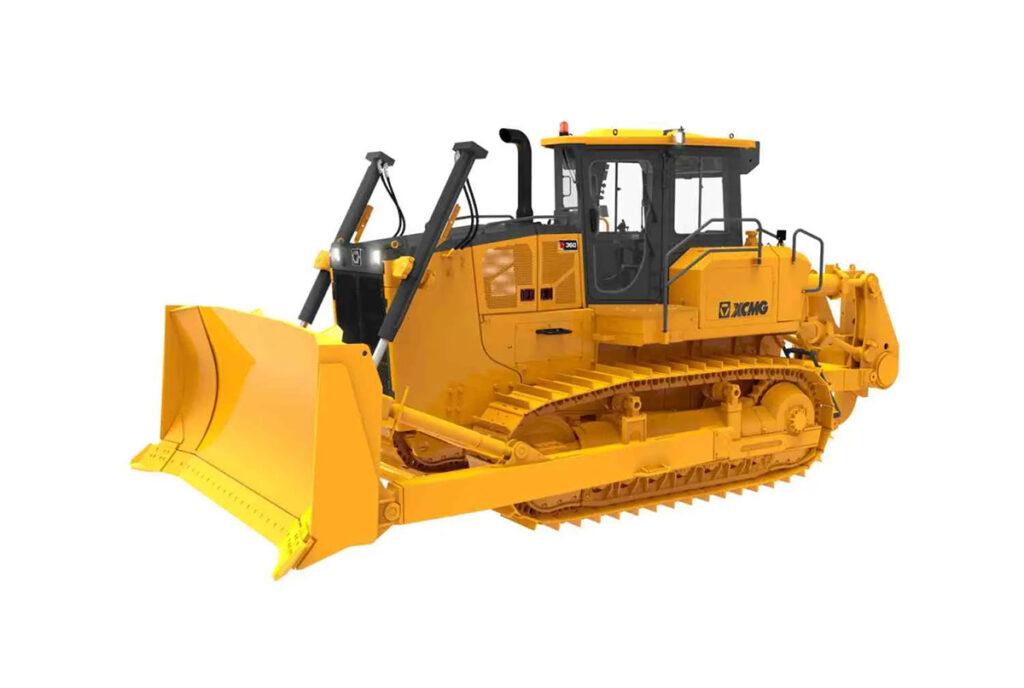

• Bulldozer/excavadora
o Function: Mainly “pushing”, it is mainly used for large-scale earthwork operations, such as excavation, landfill, short-distance material handling, obstacle removal or rough terrain leveling.
o Features: large thrust, high efficiency, suitable for processing complex ground such as hard soil and rocks, but the leveling accuracy is low.

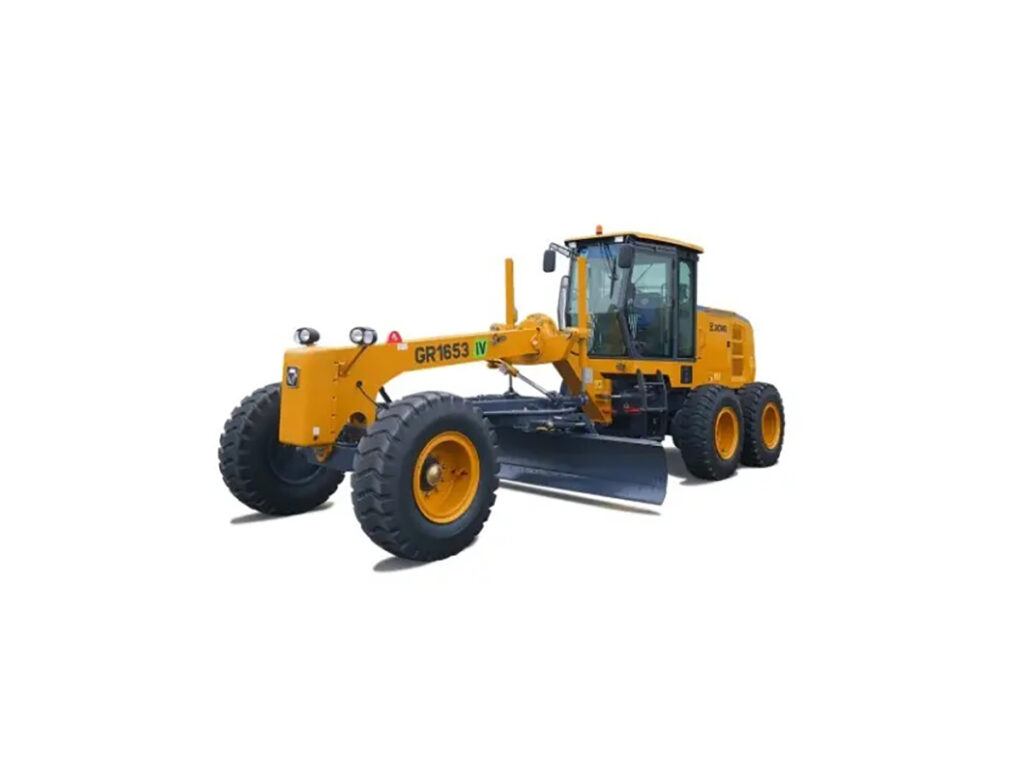

• Motor grader/Niveleuse/Motoniveladora
o Function: Mainly “fine leveling”, used to trim road slope, shape inclined surfaces or accurately level (such as highways, airport runways, etc.).
Features: It has high operating precision and can handle loose sand, gravel and soil, but its ability to handle hard ground or large earthwork is relatively weak.
2. Structural differences/ Différences structurelles/Diferencias estructurales
• Bulldozer/excavadora
o Blade: A wide, sturdy straight blade or angle blade (U-shaped blade) is installed at the front end and fixed to the front frame. It can only be raised or lowered or tilted at a small angle.
o Travel mode: mostly tracked, with low ground pressure, suitable for soft or rugged terrain.
o Power: The engine has high power and emphasizes traction.
• Motor grader/Niveleuse/Motoniveladora
o Blade: A long blade is installed in the middle or rear (rotatable 360°), which supports multi-angle adjustment (horizontal tilt, vertical lifting, lateral extension) and has high flexibility.
o Travel mode: usually tire-type, with strong maneuverability and suitable for working on hard roads.
o Additional functions: Some models are equipped with a scarifier or bulldozer for auxiliary operations.
3. Application scenarios/Scénarios d’application/Escenarios de aplicación
• Bulldozer/excavadora
o Mines, construction sites, disaster sites (e.g. clearing debris).
o Mountain excavation and road construction, river clearing, and large earth pile leveling.
o Short distance (usually <100 meters) earth transport.
• Motor grader/Niveleuse/Motoniveladora
o Final leveling of highway and railway subgrades.
o Ditch repair in farmland water conservancy projects.
o Slope control in large areas such as parking lots and sports fields.
4. Operation/Fonctionnement/Operación
• Bulldozer: “Squeeze” materials by advancing the blade, relying on the mechanical thrust to perform work.
• Motor grader/Niveleuse: “Scrapes” the ground by rotating and adjusting the angle of the blade, similar to a “carving” operation.
5. Summary/Résumé/Resumen
The difference between bulldozers/excavadora/ and graders/Motoniveladora/Niveleuse lies not only in their structure, but also in their uses. Graders are mainly used for leveling roads or sites, and then compacting them with rollers or other subsequent operations. They can also be used for earthwork operations, but due to the limitations of traction and blade capacity, their effects are far inferior to those of bulldozers. Bulldozers are mainly used for earthwork operations, such as excavating rivers and moving earth and stone over short distances. Leveling is also one of the functions of bulldozers, but their efficiency is not as high as that of graders/Motoniveladora/Niveleuse.
• Generally speaking, bulldozers have more working conditions and uses than motor graders/Niveleuse.
D’une manière générale, les bulldozers ont plus de conditions de travail et d’utilisations que les niveleuses.
En términos generales, las excavadoras tienen más condiciones de trabajo y usos que las motoniveladoras.
