Product Details:
Key Features and Applications
Reliable Power System

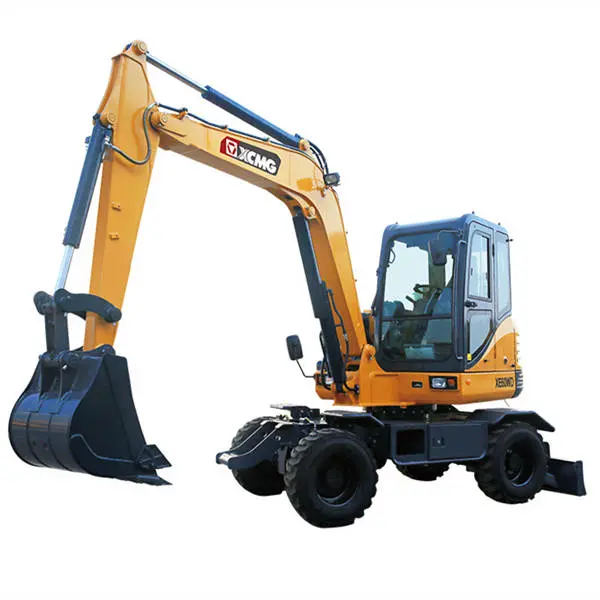

The XE60WD is powered by a Yanmar engine that complies with Tier 2 emission standards. This engine is selected for its high torque output and fuel efficiency, ensuring the excavator can handle demanding earthmoving tasks while maintaining lower operational costs.
High Mobility and Site Accessibility
Unlike crawler models, this wheel excavator can travel at speeds up to 30 km/h, allowing it to move quickly between urban job sites without the need for additional transport equipment. The tire-based chassis is designed to minimize surface damage, making it suitable for city streets and paved roads.
Advanced Hydraulic Efficiency
The machine features an optimized hydraulic system that provides precise control and smooth multi-function movements. This ensures accuracy during delicate operations such as trenching near utility lines or fine grading in landscaping.
Versatile Application Scenarios
The XE60WD is a multi-purpose tool used in various industrial sectors:
-
Municipal Engineering: Ideal for road repairs and underground pipe installations.
-
Urban Construction: Efficient for foundation work in confined building sites.
-
Agriculture & Forestry: Suitable for orchard management, trenching, and water conservancy maintenance.
Technical Specifications
| Item | Unit | Parameter |
| Operating Weight | kg | 5900 |
| Bucket Capacity | m³ | 0.23 |
| Engine Model | – | Yanmar 4TNV94L |
| Rated Power/Speed | kW/rpm | 36.2 / 2100 |
| Max. Travel Speed | km/h | 30 |
| Swing Speed | r/min | 11 |
| Gradeability | ° | 30 |
| Bucket Digging Force | kN | 48.3 |
| Arm Digging Force | kN | 32.5 |
Dimensions and Operating Range
| Operating Range Item | Unit | Value |
| Max. Digging Height | mm | 5755 |
| Max. Dumping Height | mm | 4030 |
| Max. Digging Depth | mm | 3510 |
| Max. Digging Reach | mm | 6115 |
| Min. Swing Radius | mm | 2475 |
Supplier Support
We provide comprehensive procurement support for the XCMG XE60WD wheel excavator. Our services include the provision of technical documentation, logistical coordination for international shipping, and assistance with equipment configuration. To support long-term operational uptime, relevant maintenance components and spare parts are available through our supply network to meet international B2B standards.
Frequently Asked Questions
What type of engine is used in the XCMG XE60WD?
The XE60WD is equipped with a Yanmar 4TNV94L engine, providing 36.2 kW of power and meeting standard industrial performance requirements for small excavators.
How fast can this wheel excavator travel between job sites?
The machine features a maximum travel speed of 30 km/h, allowing it to be driven directly on roads for short-distance relocation, which saves on transportation costs.
What is the standard bucket capacity for the XE60WD?
The standard bucket capacity is 0.23 m³, which is optimized for small-to-medium digging and loading tasks in urban or agricultural projects.
What is the maximum digging depth of this 6-ton model?
The XE60WD offers a maximum digging depth of 3,510 mm, providing sufficient reach for typical municipal utility and foundation work.
