Is the RP903 asphalt paver the right choice for your road construction projects?

Q: What should I do if the hydraulic system does not move after starting the equipment in a low temperature environment?

① Check whether the hydraulic oil preheating system is turned on (it needs to be preheated above 20℃). If not, turn on the preheat switch and wait for 30 minutes; ② Check the oil level of the hydraulic tank (it needs to be higher than 2/3 of the scale). If it is insufficient, supplement the special L-HM 46 hydraulic oil of XCMG; ③ Check whether the suction filter of hydraulic pump is blocked (low temperatures can easily lead to impurity accumulation). If it is blocked, please replace the filter (it is recommended to replace it every 500 hours).

Q: How to diagnose the waveform on the pavement during paving?

① Check whether the laying speed is stable (it needs to be kept within 0.1 m/min. If the fluctuation is too great, adjust the speed controller); ② Check whether the leveling system (laser receiver of paver is blocked or not. If it is blocked, clean the lens and recalibrate it.); ③ Check the speed of the cloth auger (which needs to match the asphalt paving speed). If it is abnormal, adjust the frequency of the screw conveyor drive motor.

Q: What should I do if the temperature of the screed is uneven (local temperature difference > 10℃) after heating?

① Check whether the heating pipe in the corresponding area is damaged (measure the resistance with a multimeter. Normal at 10–15 Ω. If there is any abnormality, replace the heating pipe); ② Clean the carbon deposits on the bottom plate of the screed (clean it with a special scraper to avoid affecting heat conduction); ③ Check whether the temperature sensor is offset (it needs to be closely attached to the bottom plate. If offset, re-fix it).

Q: What is the reason for a sudden increase in engine fuel consumption during the operation of the equipment?

① Check whether the air filter is blocked (three-stage filtering system needs to be checked step by step. If it is blocked, please replace the filter); ② Check the atomization condition of the engine injector (if atomization is not good, disassemble and clean it. It is recommended to test the fuel injectors every 2000 hours); ③ Check whether the intelligent power regulation system is faulty (a diagnostic computer needs to be connected to calibrate the parameters. If not, restore the factory settings).

For road construction machinery, the asphalt paver plays an important role in ensuring smooth and durable pavement. Among the various models available, the RP903 stands out as a reliable and efficient choice for a wide range of paving projects. This article delves into the features, advantages, specifications, and applications of the RP903 asphalt paver, helping you make an informed decision for your next road paving endeavor.

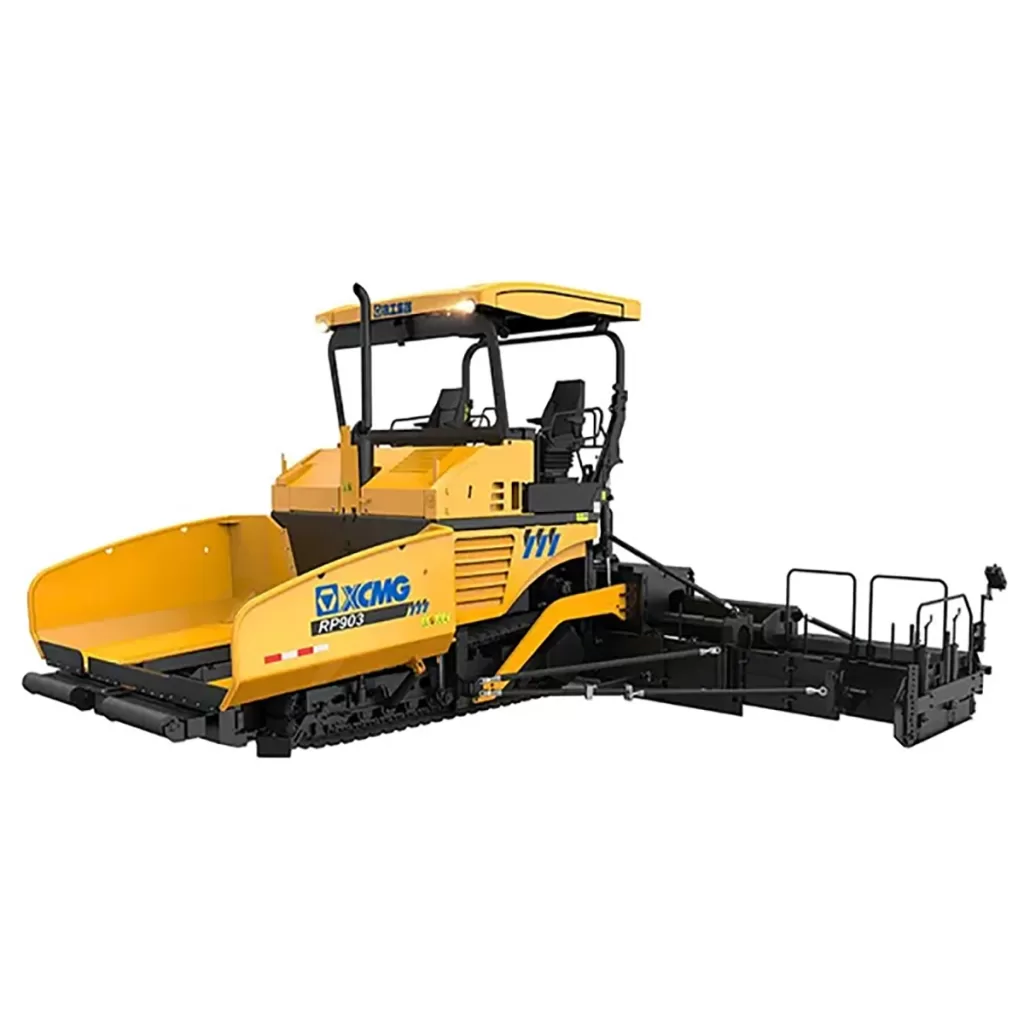

is the rp903 asphalt paver the right choice for your road construction projects

What is an asphalt paver?

An asphalt paver is a kind of road construction machinery specially used for paving asphalt on roads, bridges, parking lots and other surfaces. It distributes, shapes, and partially compacts the asphalt mixture, ensuring a uniform and smooth finish. Especially RP903, which is a high-performance model from the 3 series, is famous for its reliable quality and excellent running performance.

The Unique Advantages of the RP903 Asphalt Paver

1.Advanced Technologies for Superior Performance

RP903 adopts the most advanced technologies today, including full hydraulic drive, computer control, left-right independent drive, ultrasonic material level sensing control, electronic automatic leveling and ram compaction. These functions help to:

· Good paving Stability: ensure consistent and stable paving operations.

· Uniform Material Conveyance/Distribution: guarantees even distribution of asphalt mixture.

· High Pre-Compactness: achieves higher initial compaction, reducing the need for additional compaction work.

· Good Road Evenness: results in smoother asphalt road surfaces with minimal irregularities.

· Comfortable Operations: ergonomic control device and well-designed cab improve the comfort of operators.

· Convenient maintenance: simplifies the maintenance tasks and reduces downtime.

· Energy-Saving and Environment-Friendly: operates efficiently, minimizing energy consumption and environmental impact.(Source:https://zj.lmjx.net/tanpuji/xcmg/rp903/param/)

2.High quality Components improve reliability

RP903 uses imported products in its key supporting components, ensuring the highest level of manufacturing quality and reliability among similar imported products. This makes it very suitable for paving asphalt concrete materials on roads, with high accuracy and durability.

3.Multifunctional Applications

RP903 is suitable for paving various grades of highway pavement, and it is a multifunctional choice for different road construction projects. Its ability to handle all kinds of paving widths and thicknesses increases its flexibility.

Specification of product

Item	Unit	Parameter
Total Weight	t	24.3~28
Dimensions (L×W×H)	mm	7180×3000×4060
Basic Paving Width	m	3.0~5.85
Maximum Paving Width	m	9.15
Maximum Paving Thickness	mm	500
Theoretical Productivity	t/h	900
Hopper Capacity	t	15
Engine Power	kW	162

Key Performance Features

· Classic 162 kW Shangchai Power: offers reliable performance and strong power output.

· Standard E600T Double Support Hydraulic Telescopic Screed: the maximum asphalt paving width is 9.15 m, providing flexibility for different project requirements.

· Optional 9.5 four-support hydraulic telescopic screed: the overall rigidity is increased by 30%, and the 4/9 mm double-speed high-precision adjustable amplitude mechanism is adopted, so that the preloading density is higher.

· Distribution device: it Can be lifted by one button with a lifting range of 200 mm, which can meet the conditions of different working thickness.

Major application occasions

1. Municipal road building

RP903 is widely used in municipal road construction, including urban branch roads, residential roads and municipal pipeline roads. Its flexible turning capability (minimum turning radius of 5.2 m) and narrow paving width (minimum of 2.5 m) make it ideal for these applications.

2. Rural road transformation

In rural road reconstruction projects, such as the “every village has a hardened road” plan, the lightweight design (with a total mass of 26 tons) and low-temperature start-up performance (-30℃) of RP903 make it a precious asset. It can easily pass through narrow country roads and operate effectively in cold weather.

3. Road construction of industrial park/factory

For the roads in industrial parks, logistics parks and large factories, the RP 903 can provide fast road construction capacity (average daily operation efficiency ≥ 1.2 km) and low noise operation (construction noise ≤ 78 dB), which can meet the environmental protection requirements of these areas.

Common problems

Q1: What should I do if the hydraulic system does not move after starting the equipment in a low temperature environment?

A: ①Check whether the hydraulic oil preheating system is turned on (it needs to be preheated above 20℃). If not, turn on the preheat switch and wait for 30 minutes;②Check the oil level of the hydraulic tank (it needs to be higher than 2/3 of the scale). If it is insufficient, supplement the special L-HM 46 hydraulic oil of XCMG;③Check whether the suction filter of hydraulic pump is blocked (low temperatures can easily lead to impurity accumulation). If it is blocked, please replace the filter (it is recommended to replace it every 500 hours).

Q2: How to diagnose the waveform on the pavement during paving?

A: ①Check whether the laying speed is stable (it needs to be kept within 0.1 m/min. If the fluctuation is too great, adjust the speed controller);②Check whether the leveling system (laser receiver of paver is blocked or not. If it is blocked, clean the lens and recalibrate it.);③Check the speed of the cloth auger (which needs to match the asphalt paving speed). If it is abnormal, adjust the frequency of the screw conveyor drive motor.

Q3: What should I do if the temperature of the screed is uneven (local temperature difference > 10℃) after heating?

A: ①Check whether the heating pipe in the corresponding area is damaged (measure the resistance with a multimeter. Normal at 10-15 Ω. If there is any abnormality, replace the heating pipe);②Clean the carbon deposits on the bottom plate of the screed (clean it with a special scraper to avoid affecting heat conduction);③Check whether the temperature sensor is offset (it needs to be closely attached to the bottom plate. If offset, re-fix it).

Q4: What is the reasons for a sudden increase in engine fuel consumption during the operation of the equipment?

A: ①Check whether the air filter is blocked (three-stage filtering system needs to be checked step by step. If it is blocked, please replace the filter);②Check the atomization condition of the engine injector (if atomization is not good, disassemble and clean it. It is recommended to test the fuel injectors every 2000 hours);③Check whether the intelligent power regulation system is faulty (a diagnostic computer needs to be connected to calibrate the parameters. If not, restore the factory settings.)

Conclusion

RP903 asphalt paver is a reliable and efficient choice for various road construction projects. Its advanced technologies, high-quality parts and multi-purpose applications make it a valuable asset of the contractors, which is expected to achieve excellent paving effect. Whether you are working on municipal roads, rural road reconstruction or industrial park construction, the RP903 is designed to meet your demand for accuracy and durability.
