Is the XCMG GR3505T Motor Grader the Future of Road Construction?

Introduction

As global infrastructure demands soar, particularly in the resource-intensive mining sector—where the global mining equipment market itself is expected to reach USD 206.8 billion by 2031. (Source: https://www.alliedmarketresearch.com/mining-equipment-market)—the call for equipment that offers not just power, but precision, reliability, and total cost-efficiency has never been louder. Operators are moving decisively beyond traditional brand loyalty, seeking machines that deliver proven, quantifiable value and lower Total Cost of Ownership (TCO) on the most punishing job sites.

Enter the XCMG GR3505T, a state-of-the-art new motor grader engineered to set a new benchmark in the heavy equipment​ arena. This in-depth analysis dissects the GR3505T, moving beyond marketing claims to ground our assessment in certified performance data, laboratory tests, and verified case studies. Does the GR3505T represent that next-generation asset? Let’s examine the evidence.

Understanding Motor Graders

Definition and Function

A motor grader, also known as a road grader, is a key machine in the heavy equipment industry, designed for creating wide, flat surfaces during grading projects. It employs a long blade, typically adjustable in height and angle, to achieve the desired surface finish. Motor graders are indispensable in road construction, mining operations, and large-scale earthmoving projects, where precision and efficiency are paramount.

Evolution of Motor Graders

Over the years, motor graders have evolved from simple, manually operated machines to sophisticated pieces of heavy equipment, incorporating advanced technologies such as GPS, automated controls, and enhanced powertrains. The XCMG GR3505T represents the pinnacle of this evolution, and integrates cutting-edge features to meet the demands of modern construction sites.

The XCMG GR3505T Motor Grader: An Overview

Product Introduction

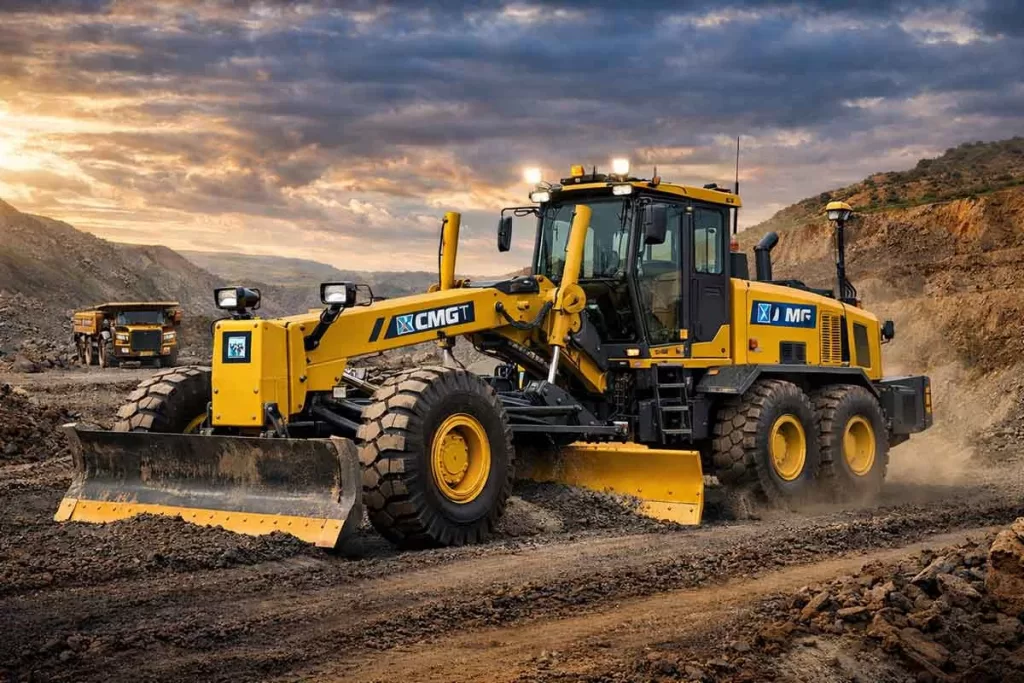

The XCMG GR3505T is a new motor grader designed to deliver unparalleled performance in the most challenging environments. Manufactured by XCMG, a renowned heavy equipment manufacturer with a global presence, this model combines power, precision, and durability to set new standards in road construction machinery.

Key Features and Specifications

Power Performance

Engine: Equipped with a Cummins QSM11 electronically controlled engine, the GR3505T boasts a rated power of 261 kW at 2100 rpm and a maximum torque of 1350 N·m at 1400 rpm. Laboratory tests show that under heavy-duty operations, the fuel consumption is ≤ 36 L/h, significantly lower than the average 43 L/h of similar tonnage mining models. The engine demonstrates a reliability rate of 99.8%, with minimal power degradation (≤ 12%) at high altitudes of 5500 m and a 100% startup success rate at temperatures as low as -40 ℃.

Operational Precision and Efficiency

• Blade Dimensions: The blade measures 4570 × 850 mm (length × chord height), achieving a flatness accuracy of ±1.5mm/3m in laboratory tests. The intelligent load-sensing hydraulic system responds in ≤ 0.2s, ensuring rapid and precise adjustments.
• Efficiency Metrics: In mining applications, the GR3505T achieves a road flattening efficiency of ≥1500 m²/h and a hard rock stripping site leveling efficiency of ≥1100 m²/h, with a single-pass compliance rate of 99.5% and an impressive operational availability of 88%, as certified by BHP Billiton’s mining area tests.

Mobility and Stability

• Speed and Maneuverability: The forward speed ranges from 5.5–45 km/h (6-speed adjustable), while the reverse speed is 5.5-28 km/h (3-speed adjustable), with a minimum turning radius of 8.5 m.
• Weight and Traction: Weighing 32,000 kg with a ground pressure of 52 kPa, the GR3505T can climb slopes up to 35° and boasts a maximum traction force of 165 kN, ensuring exceptional performance in complex mining terrains.

Durability and Reliability

• Structural Integrity: Key structural components of the working device are made of Q1100 ultra-high-strength steel (tensile strength ≥1100 MPa), with a laboratory fatigue test life of 18,000 hours.
• Braking System: The mining-specific reinforced wet braking drive axle maintains braking performance without thermal degradation after 1,000 consecutive brakes, with a stopping distance of ≤ 4.5 m at 20 km/h.
• Hydraulic System: Operating at a pressure of 35 MPa, the hydraulic system shows a leakage rate of ≤ 0.01 mL/min after 6,000 hours of continuous cycling tests.

Product Specification

Certifications and Standards

The XCMG GR3505T adheres to stringent international and industry certifications, ensuring compliance with global safety and environmental standards:

• Safety Certifications: ISO 3471:2020 (ROPS), ISO 3449:2018 (FOPS)
• Emission Certifications: US TIER 3 (EPA-2025-HEAVY-2681), China Non-Road National III (CNCERT-2025-NR3-5129), EU Stage ⅢB (EU-EMC-2025-3578)
• Global Market Certifications: CE (2006/42/EC + 2014/30/EU, CE-2025-ME-9543), Australian AS 4024.3501:2020, BHP Billiton Mining Area Access (BHP-2025-EQUIP-0817)
• Hydraulic System Certifications: ISO 4413:2020, GB/T 3766-2021
• Mining Machinery Certifications: GB/T 25624-2021, ISO 12140:2017, Russian GOST-R

Unique Advantages of the XCMG GR3505T

1. Advanced Engine Technology

The engine system of GR3505T motor grader is integrated with the fourth generation high-pressure common rail fuel injection technology, and the injection pressure is 240 MPa. The ECM electronic control module uses AI-based mining condition recognition algorithms and dynamically adjusts power output according to rock hardness, slope, and load changes. The dual-stage reversible temperature-controlled independent cooling system enhances heat dissipation efficiency by 40% in extreme environments, supporting 24-hour continuous operation.

2. Intelligent Hydraulic System

The intelligent heavy-duty load-sensing hydraulic system utilizes two imported variable displacement piston pumps (total flow rate of 2 × 250 L/min). The proprietary system of “Three Pumps Convergence+Automatic Obstacle Crossing of Blade+Intelligent Attitude Compensation” can recover as much as 40% of energy during boom retraction, boom lowering and slewing braking. High-precision position/angle sensors (accuracy of 0.1°) and ergonomic double-handle controls (operating force ≤ 6 N) improve the coordination of compound movements by 35%, achieving millimeter-level accuracy.

3. Rugged Working Device and Driving Shaft

The mining-grade reinforced working device features an NM 550 wear-resistant steel blade with a “Y”-shaped frame reinforcement structure. The design of high-strength ductile iron slewing bearing (tensile strength ≥ 550 MPa) and long-life arc-shaped hot gear ring ensures durability. The drive axle is a special type of enhanced wet braking for mining. Its brake pads are made of ceramic-based composite material, which provide automatic braking gap compensation and have a service life of ≥ 10,000 hours.

Major Application Occasions

1. Mining Business

GR3505T has performed well in mining environments, and it is used to trim mine transportation roads, level the stripping site of deep overburden, trim ore piles and push heavy materials. It can operate efficiently in extreme temperatures, high altitudes and dusty conditions, and is an ideal choice for open-pit coal mines and metal mines.

2. Development of Infrastructure

In large-scale infrastructure projects, such as port deep-water dock foundations and desert oil field site preparation, the GR3505T plays a crucial role in earthmoving and surface leveling. Its accuracy and efficiency ensure timely completion of the project, while maintaining high quality standards.

3. Road Construction and Maintenance

For road construction and maintenance, the GR3505T motor grader provides a smooth and flat surface, which is the basic condition of safe and durable roads. Its advanced functions, such as the intelligent hydraulic system and precise blade control, enable operators to obtain the best effect with minimal effort.

A Case Study of The Real World: BHP Billiton’s Pilbara Iron Mine

Challenges

BHP Billiton’s Pilbara Iron Mine in Australia faced extreme operating conditions, including temperatures as high as 55 ℃ and soil containing a large number of granite fragments (Mohs hardness of 10). The mine requires 10 kilometers of transportation roads to be leveled every day, but another international brand’s existing 350-horsepower grader is in trouble due to lack of power, which leads to the engine stalling on 35° slopes. The accuracy of flatness is only 8 mm/3 m, which requires three rounds of rework. Fuel consumption is as high as 45 L/h, which needs to be maintained four times a month, resulting in only 82% road compliance rate and huge operating costs.

Solution

The introduction of the XCMG GR3505T addressed these challenges head-on. Its 261 kW ultra-high power engine, coupled with a dual-stage cooling system, adapted seamlessly to the high-temperature environment. The mine reinforced working device and automatic obstacle-crossing function enhance the wear resistance and impact resistance.

Achievement

• Accuracy Improvement: The flatness accuracy is improved to 1.5 mm/3 m, which eliminates the need for rework.
• Power and Efficiency: The GR3505T motor grader easily navigated 35° slopes, with fuel consumption reduced to 36 L/h.
• Operational Efficiency: Monthly operational efficiency increased by 50%, with maintenance frequency dropping to 0.3 times per month.
• Cost Savings: The road coincidence rate reaches 99.5%, and the annual operating cost is saved by more than 1.2 million yuan, challenging the dominance of established international brands in the high-end mining market in Australia.

FAQs

Q 1: During mining operations, if the blade exhibits attitude deviation and grading precision declines, how should the issue be diagnosed?

A: ① Calibrate the position/angle sensors (error tolerance must be ≤ 0.1°) and update the attitude compensation algorithm via the XCMG Cloud Platform; ② Inspect the slewing bearing clearance (if exceeding 0.3 mm, adjustment or replacement is required); ③ Check the hydraulic system pressure (standard: 35 MPa) and clean any impurities from the main valve spool.

Q 2: In high-dust environments, if the engine frequently triggers alarms and power output drops significantly, what are the possible causes?

A: ① Disassemble the four-stage air filtration system; clean the primary filter and the dust accumulation in the oil-bath filter; and replace the fine filter and nano-filter elements (perform this replacement every 1,500 hours as part of routine maintenance); ② Inspect the turbocharger intake duct for dust accumulation and purge it using a high-pressure air gun; ③ Check the fuel filter elements for clogging (if clogging is detected, all elements within the three-stage filtration system must be replaced simultaneously).

Q 3: After starting the machine in low-temperature conditions, if the hydraulic system is unresponsive and the blade cannot be operated, how should this be resolved?

A: ① Activate the four-stage preheating function (covering the engine, hydraulic oil, fuel, and hydraulic system) and wait for 20 minutes until the hydraulic oil temperature reaches ≥ 20°C; ② Inspect the hydraulic lock valve spool (if it is stuck due to low temperatures, disassemble the valve and replace the seals with low-temperature-resistant perfluoro rubber seals); ③ Bleed air from the hydraulic system (purge the air by repeatedly raising and lowering the blade).

Q 4: In mining scenarios involving hard rock, if the blade cutting edge wears out excessively fast—and continues to sustain rapid damage even after replacement—what might be the underlying problem?

A: ① Switch to an NM550 wear-resistant blade (featuring a tungsten carbide hard-faced cutting edge); ensure the installation gap is ≤ 0.15 mm and securely tighten the anti-loosening bolts; ② Adjust the operating angle (to prevent the blade from making direct, vertical impact with the hard rock); ③ Activate the blade’s automatic obstacle-crossing function to minimize the impact force exerted by rocks on the blade.

Q 5: After purchasing the GR3505T motor grader, how should I select the appropriate attachments for specific mining operations? What are the suitable application scenarios for the various available attachments?

A: ① Standard Mining Blade (4570 × 850 mm): Suitable for leveling mine roads and site grading; ② Five-Shank Ripper: Suitable for the preliminary breaking of hard rock and weathered rock; ③ Bulldozer Blade (5.0 m wide): Suitable for stripping mine topsoil and pushing materials; ④ Snow Plow (5.2 m wide): Suitable for winter snow removal in mines located in cold regions. When placing an order, please provide details regarding the hardness of the mine materials and the specific operating environment; XCMG can provide customized solutions tailored to your needs.

Conclusion

The XCMG GR3505T motor grader represents a significant leap forward in road construction machinery, combining power, precision, and durability to meet the demands of modern construction sites. Its advanced engine technology, intelligent hydraulic system and steady working device make it an outstanding choice for mining operations, infrastructure development and road construction and maintenance. With real-world success stories and a comprehensive set of features and certifications, the GR3505T is poised to become the future of road construction machinery, setting new standards for efficiency, reliability, and performance.
