Key Takeaways

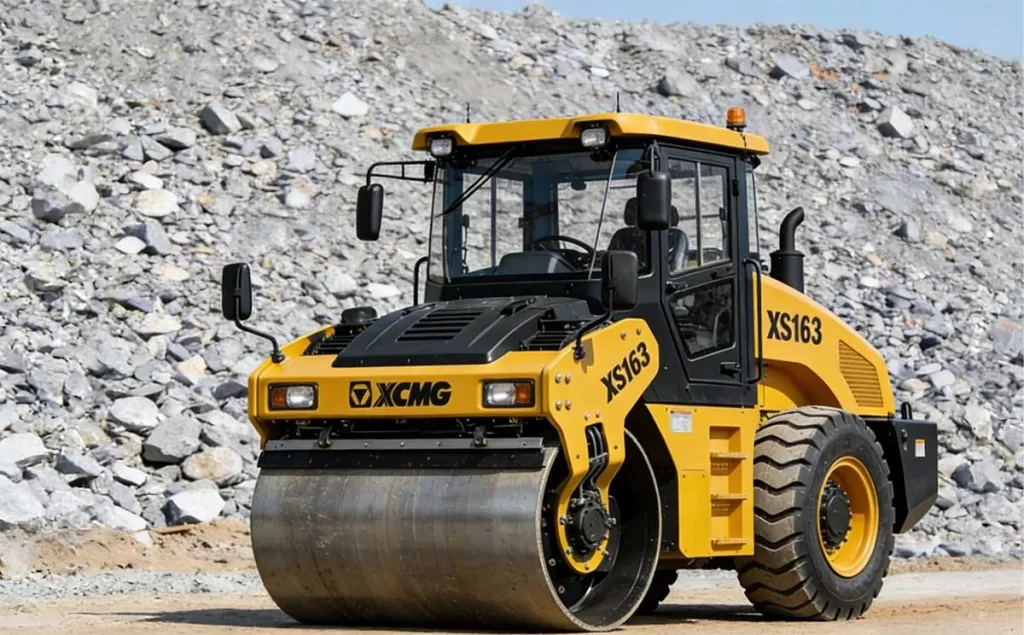

- The XCMG XS163 is a 16-ton single drum road roller built for efficient, fuel-saving, and durable construction.
- Its dual-frequency and dual-amplitude vibration system provides more than 96% compaction and smooth asphalt effect.
- XS163 has passed CE and ISO certification, providing a reliable and cost-effective scheme for global infrastructure projects.
Understanding the Core: What Is a Single Drum Roller?
In the field of architecture, the quality of a road mainly depends on their compaction quality. A well-compacted base can ensure long life, stability, wear resistance and no deformation. For contractors and project managers, choosing a suitable roller is not only a purchase, but also a key investment for the success of the project, adherence to the schedule and long-term cost control.
Among the many options available, the XCMG single drum roller, model XS163, has established itself as a benchmark for efficiency and reliability in its class. But what makes this machine different? It is important to know the category of XCMG XS163 before going into the details. A single drum roller, also known as a vibratory soil compactor, is a type of road compactor characterized by a large steel drum at the front and rubber-tired wheels at the rear. In subgrade construction, it is the main machine to compact cohesive soils, granular base and layered filler. For medium-sized projects, the model of 10 to 20 tons, such as XS163, is the industry standard. (Source: https://www.fhwa.dot.gov/)This makes the single drum roller an indispensable part of the product portfolio of any major roller supplier.
The Engineering Edge: Unique Advantages of the XCMG XS163 Road Roller
1. Dual-Frequency Technology Brings Excellent Compaction Performance
The core of any roller is its vibration system. XS163 road roller adopts advanced dual-frequency and double-amplitude system (28 Hz /1.8 mm and 35 Hz /0.9 mm). This allows operators to switch between low frequency/high amplitude subgrade deep compaction (up to 35 cm depth of influence) and high frequency/low amplitude to obtain a smooth and high density surface on asphalt surface. Laboratory and field tests show that the compactness of rock-filled subgrade is ≥ 96%, the compactness of earthwork subgrade is ≥ 98%, and the smoothness of asphalt surface is ≤ 3 mm/3 m. This versatility ensures that a single machine can handle multiple project stages efficiently.
2. Industry-Leading Fuel Efficiency and Power
Powered by a Weichai WP4.1D100E32 Stage IIIA/China National III emission-compliant engine rated at 75 kW (102 HP), the XS163 delivers ample power. What is more impressive is that its intelligent load sensing hydraulic system can dynamically match the power output with the resistance. The actual operation data shows that the average oil consumption is less than or equal to 12 liters/hour, while the industry average oil consumption of road rollers with similar size is about 14.5 liters/hour. Working for more than 2,000 hours can directly save about 5,000 liters of fuel, significantly reduce the cost and bring environmental benefit.
3. Designed for Long-Term Durability and Low Maintenance
The initial purchase price is just a part of the cost formula. The total Cost of ownership (TCO) is very important. The XCMG single drum roller XS163 is built for endurance.
Drum life: The drum is made of Q345B alloy steel, and its surface is quenched (hardness HRC 45-50). The estimated service life of accelerated laboratory wear test is 12,000 hours.
System Reliability: High-grade materials (20 CrNiMo alloy steel gears) are used for key components such as the drive axle. The hydraulic system, tested for 2,500 hours continuously, showed minimal leakage (≤ 0.02 mL/min). This sturdy structure makes MTBF (Mean Time Between Failures) as high as 9500 hours, and prolongs the overhaul cycle.
4. The Safety and Global Compliance of Certification
As a global road roller supplier, XCMG ensures the XS163 meets the highest international standards. It has a complete CE mark (according to Mechanical Directive 2006/42/EC and EMC Directive 2014/30/EU), which proves its safety in European market. It also conforms to:
- ISO 3471: 2020 for Roll-Over Protective Structures (ROPS).
- ISO 3449: 2018 for Falling Object Protective Structures (FOPS).
- ISO 14268: 2017 for roller performance test methods.
- The operator’ s cabin is even certified by TÜV Rheinland for ergonomics (Certificate Number: TÜV-R-2024-9873) , ensuring operator comfort and reducing fatigue during long shifts.
Detailed Specifications and Technical Breakdown
| Key Performance Metrics | Specification |
| Operating Weight | 16,000 kg |
| Static Linear Load | 480 N/cm |
| Centrifugal Force / Amplitude | 360 kN / 1.8mm & 0.9mm (dual) |
| Vibration Frequency | 28 Hz & 35 Hz (selectable) |
| Engine | Weichai WP4.1D100E32, 75 kW @ 2200 rpm, Max Torque 320 N·m |
| Travel Speed | 0-12 km/h (working range 2-6 km/h) |
| Min. Turning Radius | 5.2 m |
| Braking Distance | ≤ 3.5 m (at 10 km/h) |
| Drum Width | 2,130 mm |
Key Component Technology
- Vibration System: The eccentric block mechanism controlled by an electro-hydraulic valve is used. The eccentric blocks is made of QT 500-7 nodular cast iron, which has high strength and impact resistance. The closed-loop hydraulic circuit ensures the energy conversion efficiency of more than 88%.
- Hydraulic drive System: It adopts the combination of load sensing variable pump and fixed motor, and automatically adjusts the flow (0-80l/min) according to the resistance. This kind of “on-demand” power distribution is very important to its fuel economy.
- Drive axle: An integral cast steel bridge with 18 tons of bearing capacity. It has a differential locking mechanism (locking torque ≥ 2500 N・m) to enhance traction on smooth surfaces.
Operate In a Challenging Environment
A reliable roller must work consistently in bad conditions. XS163 road roller is designed for the limit.
- High heat (≥ 45 degrees Celsius): An enlarged aluminum radiator and independent hydraulic oil cooler are used to keep the best engine and system temperatures. The cabin includes a powerful 8 kW A/c unit.
- Extremely cold (≤-30 degrees Celsius): Equipped with engine block and fuel tank preheater. It uses L-HV 46 hydraulic oil with low pour point, and has the function of preheating vibration system, allowing it to run in a few minutes in freezing conditions.
- Dusty/muddy Sites: Three-stage air filtration system (efficiency 99.9%) protects the engine. The protection level of all electrical connectors is IP 67, and the protection level of the cab is IP 65 to prevent dust and moisture from entering.
Direct Competition Comparison
Based on data from the Performance Report of Medium-sized Roller in 2025 and the White Paper on Life Cycle Cost of Earth-moving Machinery in 2025 by China Construction Machinery Association, the following table clearly illustrates the advantages of XS163 compared with the two major competitors in the same level of 16 tons.
| Comparison Dimension | XCMG XS163 Single Drum Roller | Competitor A (same specifications) | Competitor B (same specifications) | Data Source |
| Functional Performance | 75kW power, 360kN max. force, Dual Freq/Amp, Compaction ≥96%, Fuel 12L/h | 72kW, 340kN, Single Freq/Amp, Compaction ≥94%, Fuel 14L/h | 70kW, 330kN, Dual Freq/Single Amp, Compaction ≥93%, Fuel 14.5L/h | CCMA Report 2025 |
| Cost Analysis | Initial: ~53,000,AnnualMaint: 2,500, TCO (10k hrs): ~$63,000 | Initial: ~50,000,AnnualMaint: 3,000, TCO (8.5k hrs): ~$62,000 | Initial: ~47,000,AnnualMaint: 3,200, TCO (8k hrs): ~$59,000 | CMLC White Paper 2025 |
| Durability & Life | MTBF: 9,500 hrs, Drum Life: 12,000 hrs, Engine O/H: 16,000 hrs | MTBF: 8,500 hrs, Drum Life: 10,000 hrs, Engine O/H: 14,000 hrs | MTBF: 8,000 hrs, Drum Life: 9,000 hrs, Engine O/H: 13,000 hrs | XCMG Lab & SGS Test Reports |
The Main Application Scenario
- Rural road construction (48%): It is very suitable for compaction of soil and gravel subgrade, and asphalt layers for upgrading county and township road.
- Municipal infrastructure (32%): It is very suitable for backfilling and tamping of roads in residential areas, park roads, parking lots and public facilities ditches.
- Construction site preparation (20%): Used for foundation backfill and compaction, site leveling before concrete pouring, creating stable platforms for material storage.
Case Study: Solving the Bottleneck of Rural Road Projects
- Pain Point: A county highway bureau lags behind in the rural highway upgrading of 15km/month. Their existing 14-ton roller can’t provide enough compaction force (320 kilonewtons), and it can only achieve 93% density. This required 4 passes, high fuel consumption (15 liters/hour), frequent maintenance and 10% project delay.
- Solution: They have deployed the XCMG XS163 road roller single-wheel roller. Its vibration force of 360 kN and dual amplitude system can optimally compact soil and aggregate layers in less times.
- Result: Compaction density reached 96% immediately, usually in one pass. The road roller‘s fuel consumption has dropped to 12 liters per hour. Monthly efficiency is increased by 25%, maintenance frequency is halved, and the monthly target is achieved 8 days ahead of schedule. The estimated cost savings were 1,200 perkilometer, amountingtoover18,000 annually for similar projects.
Frequently Asked Questions (FAQs)
Q 1: During operation, the vibration system suddenly stops working and the fault light is on. How to remove the fault?
A: ① Check the vibration hydraulic oil level (it must be above the center line of the oil meter; If the oil pollution exceeds NAS 8, please replace L-HM 46 hydraulic oil); ② check the vibration motor pressure (25 MPa standard; If not, check the output pressure of the hydraulic pump or replace worn seals); ③ read the fault code with a diagnostic tool. If it displays “eccentric block stuck,” stop the machine, disassemble the vibration mechanism, clean out foreign objects, and lubricate the eccentric shaft.
Q 2: After compaction, the pavement appears wavy and bumpy. What are the possible reasons?
A: ① Check the matching degree between the vibration frequency and running speed (suggested earthwork subgrade: 28Hz+3km/h; Suggestions for asphalt pavement: 35hz+5km/h); ② check the flatness of the steel wheel (if the deformation of the steel wheel exceeds 2 mm, it needs straightening); ③adjust the compaction route and adopt “staggered wheel compaction method” to avoid excessive overlap (it is recommended to overlap 1/3 of the width of steel wheels).
Q 3: After starting the road roller at low temperature, its vibration system cannot be started. What should we do?
A: ① Make sure that the preheating function of the vibration system is turned on (wait for 5 minutes after startup until the temperature of hydraulic oil rises above 10℃); ② check the vibration control switch wiring (low temperature may cause poor wiring contact; Tighten the plug and wrap it in insulating material); ③ check the valve core of hydraulic lock (if it is stuck, flush the valve core with low-temperature hydraulic oil or replace the low-temperature seal).
Q 4: Abnormal noise from the drive axle during operation, accompanied by a decrease in power. Is there something wrong?
A: ① Check the lubricating oil level of the drive axle (using GL-5 85 w/90 gear oil; If the level is low, it will be filled); ② disassemble and check the wear condition of differential gear (replace it if tooth wear exceeds 0.3mm); ③ check the anti-slip locking mechanism (if malfunctioning, adjust the locking spring preload or replace the clutch disc).
Q 5: The degree of compaction has never reached the standard. Even after many compaction attempts, it is still below design requirements. How do I solve the problem?
A: ① Switch to low frequency and high amplitude mode (28 Hz/1.8 mm) to increase the compaction depth; ② check the moisture content of subgrade (the optimum moisture content is 12% -15%, if it is too high, it needs drying; If it is too low, you need to water it); ③ adjust the working speed (down to 2-3 km/h) to prolong the compaction time and ensure that the compaction energy is fully transmitted.
Summary
Choosing suitable compaction equipment is a strategic decision, which has a long-term impact on the project quality and profitability. The XCMG XS163 single drum roller presents a compelling case as a road compactor that successfully balances raw performance, operational intelligence, and long-term durability. Supported by specific data such as fuel savings, compaction quality and component life, it provides a value proposition far exceeding its initial price. For contractors seeking a reliable, efficient and multifunctional partner in road and infrastructure projects, it is a step to establish a more productive and cost-effective fleet by cooperating with reputable roller suppliers to evaluate XCMG XS163.
