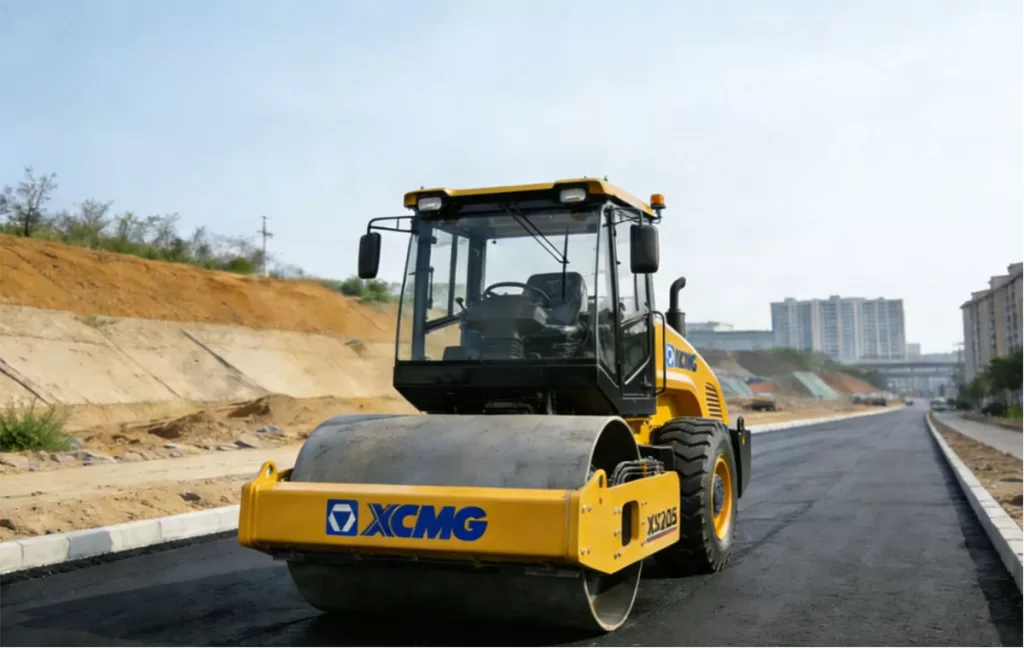

How to Select a Cost-Effective, High-Performance Heavy-Duty Road Roller? A Deep Dive into the XCMG XS205

Key Takeaways

· Its three-frequency and three-amplitude system can realize accurate compaction from deep layers to surface polishing.

· Official specifications and industry benchmarks show high efficiency and durability.

· It has the major international certifications (CE, ISO) in the global workplace.

· Analysis shows that the total cost of ownership is extremely competitive.

· It is the best choice for large-scale expressway, airport and mining applications.

What is a Road Roller Machine?

Roller is an important equipment used to compact soil, gravel, concrete or asphalt in building engineering, and it is used in the construction of roads and foundations. The primary function of a road roller is to remove air voids and increase the density of the material, ensuring a stable and durable surface. There are many types of rollers, including static steel wheel rollers, pneumatic tire rollers and vibrating rollers, each of which is suitable for specific applications.

The Rise of Chinese Road Rollers

In recent years, China road rollers has gained great traction in the global market with its advanced technology, solid structure and cost efficiency. As a leading manufacturer in China, XCMG Group has always been at the forefront of this trend, producing high-quality new road rollers that meet international standards and meet diversified construction needs.

Brief Introduction of XCMG XS205 Road Roller

The XCMG XS205 is a state-of-the-art heavy road roller designed to deliver exceptional performance in a wide range of construction scenarios. Below, we will discuss its unique advantages, product specifications and main applications.

Unique Advantages of the XCMG XS205

· Excellent compaction performance: XCMG XS205 has a working mass of 20 tons, and has three-level adjustable excitation. The static line load is 650 n/cm and the nominal amplitude is 2.0 mm/1.0 mm/0.5 mm (three-amplitude design). Laboratory tests have shown that it achieves a subgrade compaction degree of ≥ 97% for stone-filled sub grades and ≥ 99% for earthwork sub grades. The asphalt surface compaction flatness is ≤ 2 mm/3 m, with a single compaction influence depth of up to 40 cm, making it ideal for high-grade roads and large-scale site compaction.

· High power Efficiency: The road roller is equipped with Wei Chai WP 6.2 g 158 e 33 national III engine, with rated power of 117 kW (159 HP) and a maximum torque of 600 N · m (1400-1800 rpm). The fuel consumption recorded in the field test is less than or equal to 16.5 liters/hour, which is obviously lower than the industry average of 19 liters/hour for similar vehicles. It can run continuously for 100 hours without fault, and the power output stability is 99.6%.

· Enhanced maneuverability and control ability: The minimum turning radius of XS205 is 5.6 m, the running speed is 0-13km/h (running speed is 2-6km/h), and a braking distance is ≤ 3.8 m (10km/h). Its vibration frequency can be adjusted in the range of 28 Hz/35 Hz/40 Hz, and the shift response time is less than 0.3 s. The hydraulic power steering system can reduce the control workload by 40%, thus improving the comfort and productivity of the operator.

· Exceptional durability: The steel wheel is made of q 355 b alloy steel, which has a wear-resistant layer (hardness HRC 50-55) after surface quenching and spray welding. Laboratory accelerated wear tests shows that the service life is as high as 15,000 hours. The working pressure of the hydraulic system is 30 MPa, and the leakage rate is ≤ 0.02 mL/min after 3,000 hours of continuous circulation.

Main Specifications and Characteristics

The XCMG road roller XS205 is defined by a set of quantifiable performance parameters.

Core Component Technology

· Heavy-Duty Three-Frequency Three-Amplitude Vibration System: This system utilizes a high-power eccentric block combination vibration mechanism, controlled by an electro-hydraulic proportional valve to achieve precise switching between 28 Hz (low frequency, large amplitude), 35 Hz (medium frequency, medium amplitude), and 40 Hz (high frequency, small amplitude). The vibrating motor is designed with axial piston, with a displacement of 120 mL/r, which can ensure efficient energy transmission and meet the requirements of different compaction stages.

· Intelligent Heavy-Duty Hydraulic Drive System: This system features a load-sensitive variable pump and variable motor combination, equipped with XCMG’s proprietary “Intelligent Power Distribution System.” It dynamically adjusts the flow rate of hydraulic oil according to the operating resistance, ensuring stable speed and reducing fuel consumption. The built-in pressure compensation and flow regeneration devices improve the energy efficiency, while the utilization rate of the braking energy recovery system reaches 30%.

· Reinforced heavy-duty drive axle and walking system: The bearing capacity of the integral cast steel drive axle is 25 tons, and the differential is equipped with a hydraulic anti-skid locking mechanism to provide locking torque ≥ 3500 N · m. The size of walking tires is 18.00-25, which is designed for heavy engineering applications to ensure uniform ground pressure and prevent sinking under heavy loads.

Main Purpose

The XCMG XS205 road roller is versatile and can be employed in various construction scenarios, including:

1. Highway Construction

Used to compact highway subgrade, asphalt pavement and interchange sites. Its high impact force and deep compaction ability are very important for the construction of a stable subgrade meeting the standards of the Federal Highway Administration. (Source: https://www.fhwa.dot.gov/engineering/geotech/pubs/05037/) Accounting for 45% of applications, representing customers including China Communications Construction, China Railway and Provincial Highway Construction Group.

2. Large-scale Infrastructure Projects

Suitable for airport runways, industrial park sites, and large reservoir embankments, where high compaction standards are essential.Making up 35% of applications, with clients such as China State Construction, Power Construction Corporation of China, and large industrial park development companies.

3. Mining Site Rehabilitation

Effective in hardening mining sites, compacting mine roads, and backfilling mine tailings, enhancing site safety and usability.Representing 20% of applications, with clients including large mining enterprises, open-pit mining companies, and mining road construction units.

Certificates and Standards

XCMG XS205 road roller adheres to stringent international and industry certifications to ensure compliance with global safety and environmental standards. Some of the major certifications include:

· ISO 3471: 2020: Rollover Protective Structures (ROPS) for Earth-Moving Machinery.

· ISO 3449:2018: Falling-Object Protective Structures (FOPS) for Earth-Moving Machinery.

· China Non-Road National III Emission Standard: Certificate No. CNCERT-2024-NR 3-2568.

· EU Stage ⅢB Emission Certification: CertificateNo. EU-EMC-2024-2379.

· CE Certification: Directive 2006/42/EC Machinery Directive + 2014/30/EU Electromagnetic Compatibility Directive, CertificateNo. CE-2024-ME-5483.

Case Study: High-Speed Railway Construction

A high-speed railway construction group is faced with the challenges of completing 20 kilometers of subgrade compaction every month, including mixed rock fill layer and earthwork layers. Using another brand of 18-ton roller, they encountered insufficient exciting force (450 kN), resulting in a compaction degree of only 94%. This needs to be compacted five times, and the fuel consumption is 19.5 liters/hour, and it needs to be maintained twice a month. The steel wheels will also wear quickly under heavy loads, which will delay the project schedule by 12 days.

By changing to the XCMG XS205 road roller, with the help of its three-frequency and three-amplitude vibration system (maximum exciting force is 520 kN), the team achieved 97% compactness in only three times of rolling. Fuel consumption is reduced to 16.5 liters/hour, and the number of maintenance times per month is reduced to 0.5 times. The steel wheel’s lifespan increased by 50%, allowing the project to be completed 12 days ahead of schedule. This resulted in a cost saving of 3,500 yuan per kilometer, totaling more than 840,000 yuan per year.

How to Choose the Right Heavy Road Roller: A Step-by-Step Guide

Step 1: Define Your Project and Material Requirements

Take the results into consideration at the beginning. What are you doing? (soil, asphalt, rockfill?). What is the required density? How deep are these strata? What is the total area and project schedule? A heavy-duty roller like the XS205 road roller is redundant for small residential lanes, but it is essential for expressway subgrade.

Step 2: Choose the Appropriate Specifications According to Your Needs

Cross-reference your project requirements and the hard specifications of your machine.

· Weight and strength: For deep lifting of cohesive soil or rock, you need high weight and high amplitude/strength (such as 20 t/520 kN of XS205).

· Amplitude/frequency setting: More settings (such as 3 amplitudes) provide greater versatility for different materials and phases.

· Operability: If working in a closed area such as around buildings, check the turning radius and driving speeds.

· Efficiency Metrics: Compare fuel consumption and pass-to-density ratios. Machines that reach density in fewer times can save time and fuel.

Step 3: Verify Compliance with Standards

Ensure that the machine complies with the safety and emissions regulations for your area. For European projects, CE mark (Mechanical Directive 2006/42/EC) is mandatory. For environmental laws and regulations, check whether it meets the standards of EU Phase V, US EPA Tier 4 Final or China Non-Road Phase IV. The certification of XS205 road roller (such as CE and EU Stage IIIB) is very important to its qualification in many markets.

Who Should Consider the XCMG XS205 Road Roller?

Ideal use: This roller is very suitable for large civil engineering contractors, state-owned construction groups, mining companies and developers of large-scale infrastructure projects (airports, ports and dams). It is suitable for organizations that give priority to machine uptime, fuel efficiency and life cycle cost rather than absolute minimum initial purchase price. It meets the major international standards, making it a feasible choice for contractors engaged in internationally funded projects.

XCMG’s Position in the Market: As a global leader in construction  machinery, XCMG leverages its scale in r&d and manufacturing to offer products like the XS205 that compete on a feature-for-feature basis with established Western and Japanese brands, often at a more competitive price point.The XS205 road roller exemplifies this by incorporating advanced features (like the 3-amplitude system) and robust components (like SKF bearings) that are sometimes only found in higher-tier models from other manufacturers.

Frequently Asked Questions

Q 1: During heavy-duty operation, the vibration system makes abnormal noises, and the degree of compaction is reduced. How is this arranged?

A: ① Check the linkage of the eccentric blocks (after stopping, remove the vibration mechanism, and check whether the bolts of eccentric block are loose and the gap is even. Tighten them again and adjust the clearance to 0.2-0.3 mm); ② check the vibration motor working pressure (standard 30 MPa; If not, check the output pressure of the hydraulic pump or replace the plunger of the motor); ③ check the wear-resistant layer of the steel wheel (if the wear exceeds 1 mm, the wear-resistant alloy layer needs to be welded again).

Q 2: After compaction of high-grade highway, the surface flatness can’t reach the standard, and there is a wave. What is the possible reason?

A: ① Adjust the vibration frequency to match the running speed (initial pressure is recommended to be 28 Hz+3 km/h, intermediate pressure is recommended to be 35 Hz+4 km/h, and the final pressure is recommended to be 40 Hz+5 km/h); ② check the flatness of the steel wheel (if the deformation exceeds 1 mm, it needs straightening); ③ check the pressure stability of the hydraulic drive system (if the pressure fluctuation exceeds 0.5 MPa, you need to adjust the pressure compensation valve).

Q 3: The engine of the road roller starts normally in extremely low temperature environment, but the vibration system can not start. How to deal with it?

A: ① Start the triple preheating function (engine+hydraulic oil+vibration system) and wait for 10 minutes to ensure that the temperature of hydraulic oil rises to above 15℃; ② check the valve core of the hydraulic lock (it may be jammed at low temperature; Flush the valve core with low-temperature hydraulic oil or replace the low-temperature resistant seal); ③ check the wiring of the electronic proportional valve (if the connector is frozen, defrost, clean and apply antifreeze grease).

Q 4: During heavy-load operation, the drive axle is seriously overheated, accompanied by power reduction. Is there a problem?

A: ① Check the oil level and quality of the driving axle lubricating oil (use GL-5 85 w/140 heavy-duty gear oil; If it is insufficient, add engine oil; If the pollution is serious, replace the engine oil); ② dismantle and check the wear condition of differential gears (if tooth surface wear exceeds 0.5 mm, replace it); ③ check the hydraulic anti-slip locking mechanism (if stuck, adjust the hydraulic valve pressure to the standard value of 28 MPa).

Q 5: After the stone-filled subgrade is compacted, it is still partially loose, and the compaction degree is not up to standard. How can this be solved?

A: ① Switch to the low frequency and high amplitude mode (28 Hz/2.0 mm) to increase the compaction depth; ② adjust the operation speed (reduce it to 2-3 km/h), extend the local compaction time, and ensure the stones is embedded; ③ check the stone particle size (if more than 30 cm, should be crushed before compaction, or adopt layered compaction method).

Conclusion

The XCMG XS205 road roller, sourced from the reputable heavy road roller supplier cnForce, presents itself as a compelling, data-backed contender in the 20-ton vibratory roller segment. Its remarkable feature is a multifunctional three-amplitude vibration system, aiming at optimizing the compaction across different materials and project stages. Backed by specifications that indicate strong fuel efficiency and high achievable density, and built to major international certification standards, this Chinese road roller is engineered for the demands of global, large-scale construction  projects. For contractors prioritizing a balance of advanced features, operational economy, and proven durability metrics, the XS205 warrants serious consideration as a new road roller  option capable of delivering productivity and a favorable total cost of ownership in heavy-duty applications.
