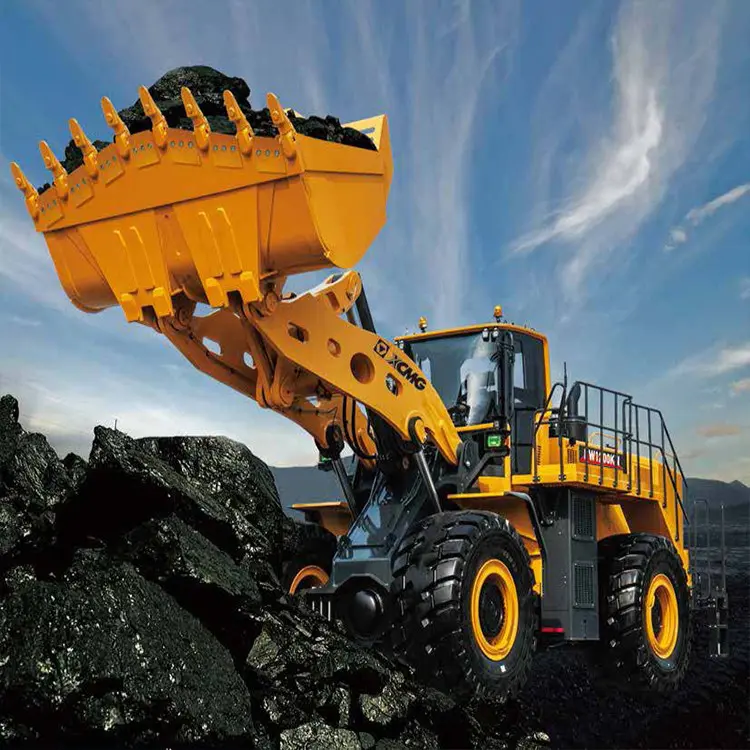

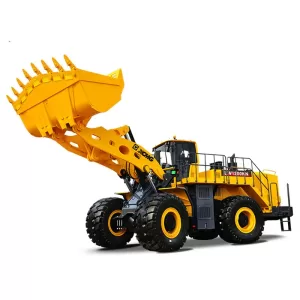

LW1200KN Large Wheel Loader
The XCMG LW1200KN is a high-performance 12-ton wheel loader engineered for large-scale earthmoving, mining, and material handling operations. As a flagship heavy-duty model, it is specifically designed to meet the rigorous demands of open-pit mines, major ports, and heavy logistics yards. The machine integrates a robust structural frame with a high-torque power system to ensure efficient loading and transport cycles. The LW1200KN focuses on operational stability and long-term durability, providing a reliable solution for international B2B infrastructure and industrial projects.
Quick Specifications
-
Rated Operating Load: 12,000 kg
-
Bucket Capacity: 6.5 m³
-
Operating Weight: 51,000 kg
-
Maximum Breakout Force: 390 kN
-
Static Tipping Load: 24,000 kg
Product Details:
Key Features and Applications
High-Efficiency Power System
The LW1200KN is equipped with a high-output industrial engine that delivers the necessary torque for heavy-duty penetration and traction. The powertrain is optimized for high-intensity work cycles, ensuring steady material handling performance while managing fuel consumption in large-scale operations.
Robust Structural Integrity
Featuring a heavy-duty box-type frame and a long wheelbase design, the machine offers excellent stability during full-load maneuvers. The structural components are reinforced to withstand high torsional stress and heavy impact loads, which are common in mining and quarrying environments.
Advanced Hydraulic Control
The loader utilizes a sophisticated hydraulic system with pilot control for smooth and precise maneuvering. The high breakout force allows for effective penetration into hard materials, significantly reducing cycle times and increasing overall site productivity.
Ergonomic Operator Environment
The cabin is designed with human-machine ergonomics as a priority, offering a wide field of vision, reduced noise levels, and an intuitive control layout. These features assist operators in maintaining precision and safety during high-frequency material handling tasks.
Simplified Maintenance Design
Critical maintenance points and pressure measurement locations are arranged for convenient access. This design approach reduces machine downtime and simplifies routine checks, supporting higher equipment utilization for fleet owners and contractors.
Technical Specifications
| Item | Unit | Parameter |
| Rated Operating Load | kg | 12,000 |
| Bucket Capacity | m³ | 6.5 |
| Machine Operating Weight | kg | 51,000 |
| Dump Clearance (at max. lift) | mm | 3,410 |
| Reach at Max. Lift | mm | 1,600 |
| Wheelbase | mm | 3,750 |
| Rated Engine Power | kW | 391 |
| Maximum Traction Force | kN | 370 |
| Maximum Breakout Force | kN | 390 |
| Total Cycle Time | s | < 11.5 |
Dimensions and Operating Range
The XCMG LW1200KN features a total length designed to accommodate high-volume loading cycles. Its dumping clearance of 3,410 mm allows it to load large mining trucks and industrial hoppers effectively. The wheelbase of 3,750 mm ensures a stable footprint and balanced weight distribution when the machine is operating with a full bucket on uneven terrain, common in open-pit applications.
Supplier Support
We provide comprehensive procurement and technical support for the XCMG LW1200KN wheel loader. Our services include assistance with configuration consulting for specific project requirements. All relevant maintenance parts and spare components for the LW1200KN are available through our supply network to ensure long-term operational uptime for international buyers.
Frequently Asked Questions
What is the primary application for the XCMG LW1200KN?
The LW1200KN is designed for heavy-duty tasks in open-pit mining, large-scale port logistics, and major infrastructure construction projects requiring high-volume material movement.
What is the rated load capacity of this loader?
This model is an 12-ton class loader with a rated operating load capacity of 12,000 kg.
What is the standard bucket capacity for the LW1200KN?
The standard bucket capacity is 6.5 m³, which is optimized for balancing high material volume with machine stability.
Is the cabin designed for long operator shifts?
Yes, the machine features an ergonomic cab with high visibility and low noise levels to ensure operator comfort and productivity during intensive work cycles.
