LW180KV Wheel Loader With Low Price
The XCMG LW180KV is a high-efficiency small wheel loader designed for versatile material handling in restricted or confined environments. With a rated load capacity of 1.8 tons, this model provides a reliable solution for small-scale earthmoving, stockpiling, and transport tasks. It is widely utilized in municipal maintenance, logistics stations, wharves, and urban construction projects. Featuring an articulated frame and compact wheelbase, the LW180KV balances structural stability with maneuverability, making it a preferred choice for contractors requiring a maneuverable machine without compromising on breakout force.
Quick Specifications
-
Rated Operating Load: 1800 kg
-
Operating Weight: 6200 kg
-
Bucket Capacity: 0.9 – 1.1 m³
-
Engine Rated Power: 58 kW
-
Maximum Travel Speed: 26 km/h
Product Details:
Key Features and Applications
High Maneuverability for Narrow Sites
The LW180KV features a specialized structural layout with a 2300mm wheelbase, allowing for a tight turning radius. This agility is essential for navigating narrow urban streets, indoor warehouse facilities, and crowded freight yards where larger loaders cannot operate effectively.
Reliable Power and Drivetrain
Equipped with a high-torque 58kW engine and a synchronized hydraulic system, the loader provides steady traction and breakout force. The powertrain is calibrated to balance fuel consumption with the strength required for penetrating soil or aggregate piles, ensuring productive work cycles.
Optimized Operator Visibility
The cab is designed with human-machine ergonomics as a priority, offering a wide field of vision and intuitive control layouts. Improved noise reduction and optimized ventilation ensure a productive and stable environment for operators during long shifts in diverse climates.
Durable Structural Build
The machine is constructed using high-strength steel for the frames and working devices. The reinforced boom and bucket linkage are engineered to withstand the stresses of high-frequency loading, providing a long service life in demanding industrial and construction settings.
Efficient Material Handling
This loader is a multi-purpose tool suitable for several applications:
-
Municipal Works: Supporting road maintenance, pipe laying, and landscaping.
-
Logistics: Efficient loading and unloading of cargo in stations and wharves.
-
Construction: Handling building materials and site grading in residential developments.
Technical Specifications
| Item | Unit | Parameter |
| Rated Operating Load | kg | 1800 |
| Machine Operating Weight | kg | 6200 |
| Bucket Capacity | m³ | 0.9 – 1.1 |
| Dump Clearance (at max. lift) | mm | 2650 |
| Reach at Max. Lift | mm | 900 |
| Wheelbase | mm | 2300 |
| Engine Rated Power | kW | 58 |
| Rated Engine Speed | rpm | 2400 |
| Max. Travel Speed | km/h | 26 |
| Max. Breakout Force | kN | 44 |
| Overall Dimensions (L×W×H) | mm | 5980 × 2060 × 2950 |

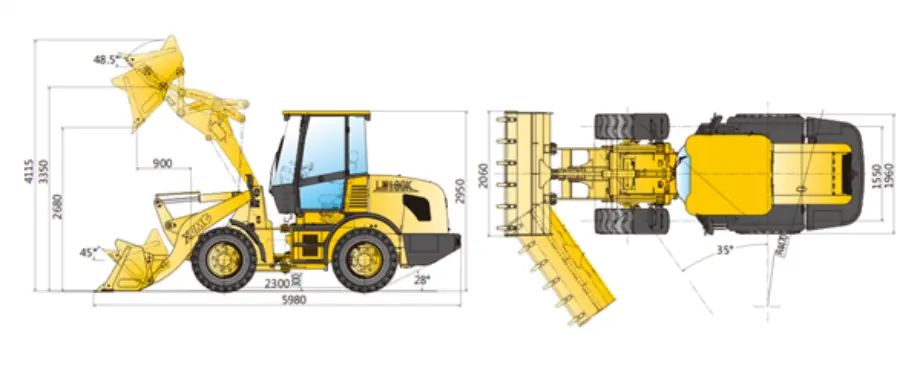

Dimensions and Operating Range
The XCMG LW180KV is designed with an overall length of 5980mm and a width of 2060mm, ensuring it remains within standard transport dimensions for easy relocation between project sites. With a maximum dumping height of 2650mm and a reach of 900mm, it can effectively load small-to-medium trucks and hoppers. The articulated steering design ensures the machine can pivot efficiently in high-density job sites.
Supplier Support
We provide technical documentation and procurement support for the XCMG LW180KV wheel loader. Our services include assistance with equipment specifications and logistical coordination for international delivery. To ensure long-term operational uptime, relevant maintenance parts and spare components for this model are available through our supply network.
Frequently Asked Questions
What is the rated lifting capacity of the XCMG LW180KV?
The LW180KV has a rated operating load capacity of 1800 kg, which is equivalent to 1.8 tons.
Is the LW180KV suitable for narrow work sites?
Yes, its compact dimensions and small turning radius make it specifically designed for confined areas such as urban streets, indoor yards, and small-scale construction zones.
What is the standard bucket capacity for this model?
The bucket capacity for the LW180KV ranges from 0.9 m³ to 1.1 m³, depending on the material density and application requirements.
What type of engine powers the LW180KV?
The machine is equipped with a high-torque engine providing a rated power of 58 kW, optimized for balancing fuel efficiency with the breakout force required for loading tasks.
