Product Details:
Key Features and Applications
Compact Maneuverability
The LW200K features a specialized structural layout with a short wheelbase, allowing for a tight turning radius. This makes the machine highly effective for navigating narrow city streets, indoor warehouse facilities, and crowded construction sites where traditional large loaders cannot operate.
Efficient Power and Transmission
Equipped with a 58 kW engine and a synchronized hydraulic system, the loader provides consistent torque and traction. The transmission system is optimized for smooth gear shifts, ensuring productive cycle times during loading, stockpiling, and transport operations.
Durable Structural Build
The machine is constructed using high-strength steel for the frame and working devices. The reinforced boom and bucket linkage are engineered to withstand the stresses of high-frequency loading, providing a long service life in demanding industrial conditions.

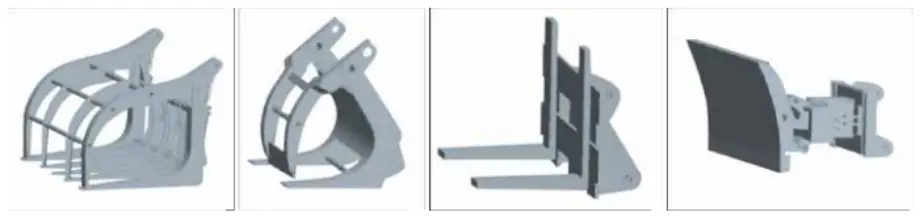

Multi-Purpose Versatility
Designed for adaptability, the LW200K can be equipped with various attachments to handle different materials. It is a reliable asset for:
-
Municipal Maintenance: Road repairs and landscaping.
-
Logistics: Moving palletized goods or bulk materials in stations and ports.
-
Construction: Small-scale grading and site preparation.
Technical Specifications
| Item | Unit | Parameter |
| Rated Operating Load | kg | 2000 |
| Machine Weight | kg | 6300 |
| Bucket Capacity | m³ | 1.0 |
| Dump Clearance at Maximum Lift | mm | 2650 |
| Dump Reach at Maximum Lift | mm | 900 |
| Wheelbase | mm | 2300 |
| Overall Dimensions (L×W×H) | mm | 6100 × 2060 × 2950 |
| Engine Rated Power | kW | 58 |
| Max. Travel Speed | km/h | 26 |
| Max. Breakout Force | kN | 55 |

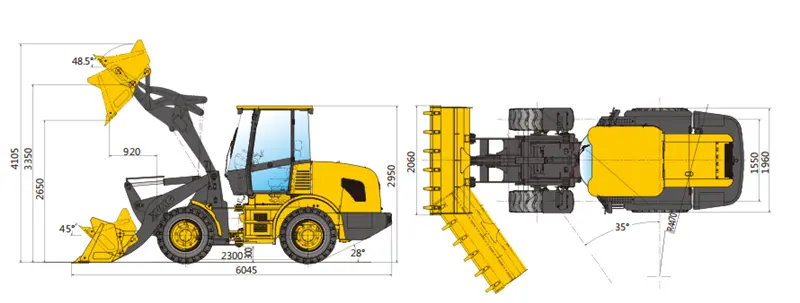

Dimensions and Operating Range
The XCMG LW200K is designed with a total length of 6100 mm and a width of 2060 mm, ensuring it remains within standard transport dimensions. With a maximum dumping height of 2650 mm, it can effectively load small-to-medium trucks and hoppers. The lifting and lowering cycle times are calibrated to optimize material handling efficiency in high-frequency duty cycles.
Supplier Support
We provide technical documentation and procurement support for the XCMG LW200K wheel loader. Our services include assistance with equipment configuration and logistical coordination for global delivery. To ensure long-term operational uptime, all relevant maintenance parts and spare components for the LW200K are available through our supply network.
Frequently Asked Questions
What is the rated lifting capacity of the XCMG LW200K?
The XCMG LW200K has a rated operating load capacity of 2000 kg, which is suitable for a wide range of light-to-medium material handling tasks.
Is the LW200K suitable for work in tight urban spaces?
Yes, its compact dimensions and small turning radius are specifically designed for confined areas such as narrow urban streets, basements, and small construction zones.
What type of engine is used in this 2-ton loader?
The machine is equipped with a high-torque engine providing a rated output of 58 kW, optimized for balancing fuel efficiency with the breakout force required for loading tasks.
What is the standard bucket capacity for this model?
The standard bucket capacity for the LW200K is 1.0 m³, providing a good balance between load volume and machine stability.
