Product Details:
Key Features and Applications
Proven Reliability and Powertrain
The LW300FN utilizes a three-element torque converter and a fixed shaft power shift transmission. This combination ensures high maturity and stable performance during heavy-duty cycles, providing the reliable power output necessary for demanding job sites.
Enhanced Maneuverability
With a 2600mm wheelbase and a turning radius of 5,165mm (measured at the tire center), the loader offers exceptional flexibility. This compact design allows for efficient operation in narrow working areas and high mobility between project locations.
High Breakout Force and Traction
The equipment delivers a breakout force of ≥13t and traction of ≥9t. These performance characteristics enable the loader to handle tough materials and penetrate hard stockpiles effectively, increasing overall site productivity.
Durable Component Design
The bucket is constructed from high-strength materials specifically selected for high wear and impact resistance. This structural reinforcement ensures a longer service life for the working tools under standard operational stress.

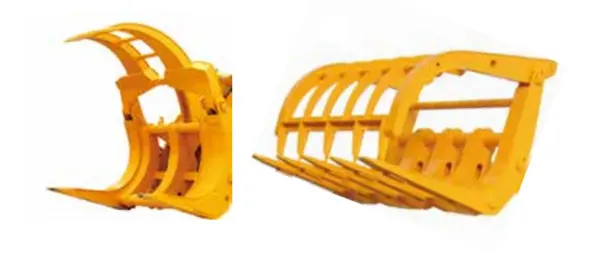

Versatile Working Configurations
The model supports diversified configurations and complete attachments to adapt to specific construction needs across different regions. Optional air conditioning (A/C) and sound insulation measures are available to provide a comfortable operating environment for the user.
Technical Specifications
| Item | Unit | Parameter |
| Rated operating load | kg | 3000 |
| Bucket capacity | m³ | 1.5 ~ 2.5 |
| Machine weight | kg | 10600 ± 200 |
| Dump clearance at maximum lift | mm | 2770 ~ 3260 |
| Reach at maximum lift | mm | 1010 ~ 1210 |
| Wheelbase | mm | 2600 |
| Overall machine dimension (L×W×H) | mm | 7050 × 2482 × 3118 |
| Tread | mm | 1850 |
| Rated Power/Speed | kW/rpm | 92 / 2200 |
| Turning radius (tire center) | mm | 5165 |
| Traction | t | ≥ 9 |
| Breakout force | t | ≥ 13 |

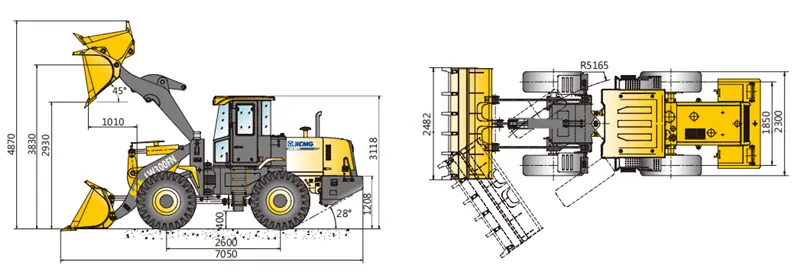

Dimensions and Operating Range
The LW300FN features an overall dimension of 7050 × 2482 × 3118 mm, providing a stable footprint for 3-ton loading operations. Its dump clearance at maximum lift ranges between 2770mm and 3260mm, allowing it to load standard trucks and hoppers efficiently. The reach at maximum lift of up to 1210mm ensures precision when placing materials at height.
Supplier Support
We provide comprehensive technical documentation and procurement support for the XCMG LW300FN wheel loader. Our services include assisting with equipment configuration and logistical coordination for international delivery. To maintain operational reliability, we offer support in sourcing relevant spare parts for this model to ensure long-term equipment uptime.
Frequently Asked Questions
What is the maximum rated load of the XCMG LW300FN?
The XCMG LW300FN has a rated operating load of 3000 kg (3 tons).
What is the standard bucket capacity for this loader?
The bucket capacity ranges from 1.5 m³ to 2.5 m³, depending on the specific configuration and material density requirements.
Does the LW300FN come with air conditioning?
Air conditioning is available as an optional configuration to enhance operator comfort in different climates.
What is the breakout force of this 3-ton wheel loader?
The LW300FN provides a breakout force of ≥13 tons, ensuring strong performance for digging and loading tasks.
