Product Details:
Key Features and Applications
High-Efficiency Power and Drive System
The LW300KN is equipped with a patented heavy-duty drive system assembly. It utilizes a low-speed engine (WP6G125E201) designed for energy conservation, making it a distinct choice in the 3-ton loader segment for projects prioritizing reduced fuel consumption without sacrificing power.
Super-Strong Carrying Capacity
The machine features a box frame structure designed for high load-bearing capabilities. This structural integrity ensures the loader can withstand the stresses of heavy-duty cycles in mining and construction environments, providing a stable platform for high-intensity work.
Optimized Working Device
The working devices have undergone comprehensive optimization to enhance breakout force and structural durability. This allows for more efficient material handling and loading speeds, improving overall productivity in aggregate yards and bulk transport scenarios.
Operator Safety and Comfort
The full-view cab is designed with human-machine ergonomics at the forefront. It provides high visibility and a safe operating environment, significantly reducing operator fatigue during long shifts.
Ground-Level Maintenance
Following the concept of “ground maintenance,” all critical maintenance and service locations are scientifically arranged to be accessible from the ground. This design simplifies routine checks and minimizes downtime for servicing.
Technical Specifications
| Item | Unit | Parameter |
| Rated Operating Load | kg | 3000 |
| Bucket Capacity | m³ | 1.5 ~ 2.5 |
| Machine Weight | kg | 10900 ± 200 |
| Dump Clearance at Maximum Lift | mm | 2770 ~ 3260 |
| Reach at Maximum Lift | mm | 1010 ~ 1210 |
| Wheelbase | mm | 2900 |
| Overall Machine Dimension (L×W×H) | mm | 7245 × 2482 × 3320 |
| Engine Model | – | WP6G125E201 |
| Rated Power/Speed | kW/rpm | 92 / 2000 |

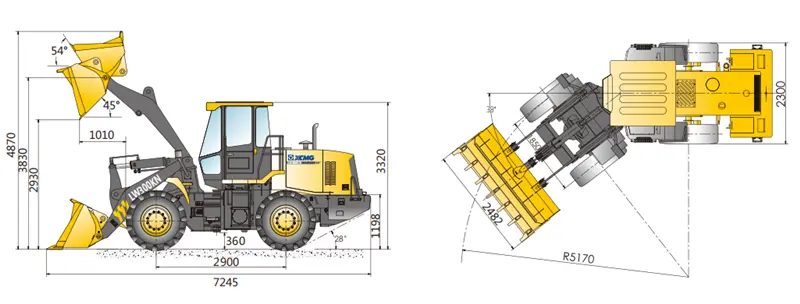

Dimensions and Operating Range
The XCMG LW300KN features a wheelbase of 2900 mm and overall dimensions of 7245 x 2482 x 3320 mm, allowing for stable operation on varied terrain. It offers a flexible dumping clearance ranging from 2770 mm to 3260 mm at maximum lift, making it compatible with a wide variety of transport vehicles and hoppers. The reach of 1010 mm to 1210 mm ensures precision during loading maneuvers.
Supplier Support
We provide comprehensive procurement support for the XCMG LW300KN wheel loader. Our services include technical documentation, configuration consulting, and logistical coordination for international delivery. We assist B2B buyers in ensuring the equipment meets specific project site requirements and operational standards.
Frequently Asked Questions
What is the maximum bucket capacity of the XCMG LW300KN?
The LW300KN supports bucket capacities ranging from 1.5 m³ to 2.5 m³, allowing for adjustments based on material density and project needs.
What are the main applications for this 3-ton wheel loader?
This equipment is widely used for bulk material transport, aggregate yard management, municipal infrastructure construction, and general earthmoving projects.
How does the LW300KN achieve energy conservation?
It features a specialized low-speed engine (WP6G125E201) and an optimized drive system designed to reduce energy loss and fuel consumption while maintaining heavy-duty performance.
Is maintenance easy on the LW300KN?
Yes, the machine is designed for “ground maintenance,” meaning service points are arranged for easy access from the ground to simplify checking and servicing procedures.
