Product Details:
Key Features and Applications
High-Efficiency Drive System
The LW300KV is equipped with a patented heavy-duty drive system assembly. The three-element torque converter and fixed-shaft power shift transmission are designed for maturity and stability, ensuring smooth power delivery and high reliability during intensive work cycles.
Superior Breakout Force and Traction
With a breakout force of ≥130kN and traction of ≥95kN, the machine delivers the penetration power required for handling tough materials. These performance metrics ensure efficient material filling and stable performance during heavy-duty stockpiling and truck-loading operations.
Optimized Structural Stability
The loader features a 2600mm wheelbase, which balances maneuverability with load-bearing stability. The reinforced front and rear frames are designed to withstand torsional stress, providing a stable platform for high-reach dumping and earthmoving on uneven terrain.
Ergonomic Operator Comfort
The cab is designed with human-machine interaction as a priority, offering a wide field of vision and noise reduction features. For diverse climate conditions, optional air conditioning (A/C) is available to build a more comfortable and productive working environment for long shifts.
Versatile Industrial Utility
This 3-ton wheel loader is a multi-purpose tool suitable for several sectors:
-
Infrastructure & Construction: Bulk material transport and site grading.
-
Aggregate & Mining: Loading stone, gravel, and sand in yards.
-
Municipal Works: Road maintenance and utility support.
-
Logistics: Efficient loading and unloading of transport vehicles and hoppers.
Technical Specifications
| Item | Unit | Parameter |
| Rated operating load | kg | 3000 |
| Bucket capacity | m³ | 1.5 ~ 2.5 |
| Machine weight | kg | 10800 ± 200 |
| Dump clearance at maximum lift | mm | 2770 ~ 3260 |
| Reach at maximum lift | mm | 1010 ~ 1210 |
| Wheelbase | mm | 2600 |
| Overall machine dimension (L×W×H) | mm | 7245 × 2482 × 3320 |
| Tread | mm | 1850 |
| Rated Power / Speed | kW / rpm | 92 / 2200 |
| Traction Force | kN | ≥ 95 |
| Breakout Force | kN | ≥ 130 |
| Turning Radius (tire center) | mm | 5165 |

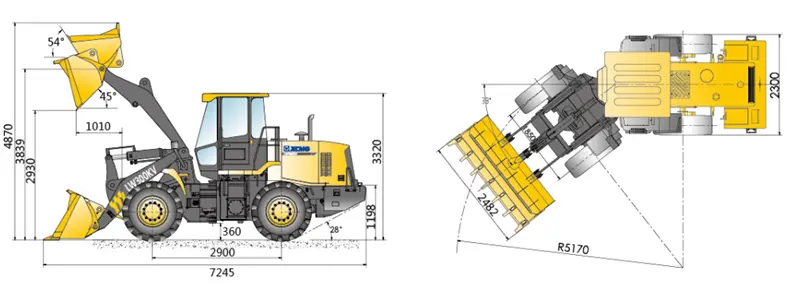

Dimensions and Operating Range
The XCMG LW300KV is designed with a total length of 7245 mm and a width of 2482 mm, providing a stable footprint for 3-ton material cycles. Its dumping clearance of up to 3260 mm at maximum lift enables it to load a wide variety of high-sided trucks and industrial hoppers. The wheelbase of 2600 mm ensures a small turning radius (5165 mm at tire center), allowing for efficient maneuvering in restricted urban construction areas and narrow logistics yards.
Supplier Support
We provide technical documentation and procurement support for the XCMG LW300KV wheel loader. Our services include assistance with equipment configuration and logistical coordination for international delivery. To ensure long-term operational uptime, relevant maintenance parts and spare components for this model are available through our supply network for international buyers and dealers.
Frequently Asked Questions
What is the standard bucket capacity of the XCMG LW300KV?
The bucket capacity ranges from 1.5 m³ to 2.5 m³, which can be selected based on the specific density of the material being handled, such as coal, earth, or stone.
What engine is used in this 3-ton loader?
The LW300KV is equipped with a high-torque engine providing a rated power of 92 kW at 2200 rpm, optimized for balancing fuel efficiency with industrial performance.
Is the LW300KV suitable for narrow job sites?
Yes, featuring a turning radius of 5165 mm (tire center) and a 2600 mm wheelbase, it is designed for high mobility in confined areas.
What is the maximum dump clearance for this model?
The dump clearance at maximum lift ranges between 2770 mm and 3260 mm, depending on the bucket and boom configuration.
