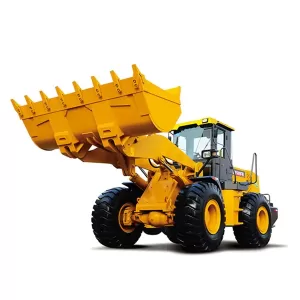

LW500FN 5 Ton Wheel Loader
The XCMG LW500FN is a heavy-duty 5-ton wheel loader engineered for high-efficiency earthmoving and material handling operations. Building on a mature technical platform, this model is widely applied in infrastructure construction, mining, ports, and logistics yards. It balances high breakout force with operational stability, making it a reliable choice for intensive loading tasks in both domestic and international markets. The LW500FN is designed to meet the demands of large-scale projects requiring consistent power and durability.
Quick Specifications
-
Rated Operating Load: 5000 kg
-
Operating Weight: 17100 ± 200 kg
-
Bucket Capacity: 2.5 – 4.5 m³
-
Engine Rated Power: 162 kW
-
Breakout Force: ≥ 162 kN
-
Wheelbase: 2900 mm
Product Details:
Key Features and Applications
High Breakout Force and Traction
The LW500FN delivers exceptional performance with a breakout force of ≥162kN and a traction force of ≥160kN. These characteristics allow the loader to penetrate hard materials easily and maintain high productivity during intensive stockpiling and loading cycles.
Optimized Structural Stability
Featuring a 2900mm wheelbase, the machine is designed for superior stability under heavy-load conditions. The high-strength frame and structural components are engineered to withstand the stresses of quarrying and mining environments, ensuring long-term reliability.
Efficient Bucket Design
The loader is equipped with a bucket made from high-strength, wear-resistant materials. Its optimized shape facilitates faster material filling and higher load retention, reducing cycle times and improving fuel efficiency per ton of material moved.
Comfortable Operating Environment
The cab is designed with sound insulation and noise reduction measures to provide a productive workspace for operators. Optional air conditioning (A/C) and an intuitive control layout help reduce operator fatigue during long shifts in varied climates.
Versatile Industrial Utility
This 5-ton wheel loader is a multipurpose tool suitable for several sectors:
-
Construction & Infrastructure: Bulk material transport and site grading.
-
Mining & Quarrying: Loading heavy minerals and aggregate handling.
-
Ports & Logistics: Efficient loading and unloading of ships and trucks.
Technical Specifications
| Item | Unit | Parameter |
| Rated operating load | kg | 5000 |
| Bucket capacity | m³ | 2.5 ~ 4.5 |
| Machine weight | kg | 17100 ± 200 |
| Dump clearance at maximum lift | mm | 3100 ~ 3760 |
| Reach at maximum lift | mm | 1100 ~ 1190 |
| Wheelbase | mm | 2900 |
| Overall machine dimension (L×W×H) | mm | 8010 × 3016 × 3350 |
| Tread | mm | 2250 |
| Rated Power / Speed | kW / rpm | 162 / 2200 |
| Traction Force | kN | ≥ 160 |
| Breakout Force | kN | ≥ 162 |
| Turning Radius (tire center) | mm | 5925 |
Dimensions and Operating Range
The XCMG LW500FN features a total length of 8010 mm and a width of 3016 mm, providing a stable footprint for 5-ton loading operations. Its dump clearance at maximum lift ranges between 3100mm and 3760mm, enabling it to load a wide variety of high-sided trucks and hoppers. The reach of up to 1190mm ensures precise material placement in logistics and construction settings.
Supplier Support
We provide technical documentation and procurement support for the XCMG LW500FN wheel loader. To ensure operational uptime, we assist in the supply of relevant spare parts and maintenance components. Our team coordinates logistics for international delivery to ensure the equipment reaches your project site efficiently.
Frequently Asked Questions
What is the maximum bucket capacity of the XCMG LW500FN?
The standard bucket capacity ranges from 2.5 m³ to 4.5 m³, depending on the specific material density and application requirements.
What is the rated engine power for this model?
The LW500FN is equipped with an engine providing a rated power of 162 kW at 2200 rpm.
What is the rated load capacity of the XCMG LW500FN?
This model is a 5-ton loader with a rated operating load capacity of 5000 kg.
Can the dump clearance be adjusted?
The dump clearance at maximum lift varies from 3100 mm to 3760 mm based on the specific boom and bucket configuration used.
