Product Details:
Key Features and Applications
Superior Structural Integrity

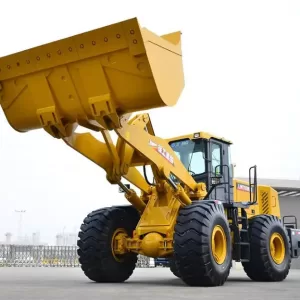

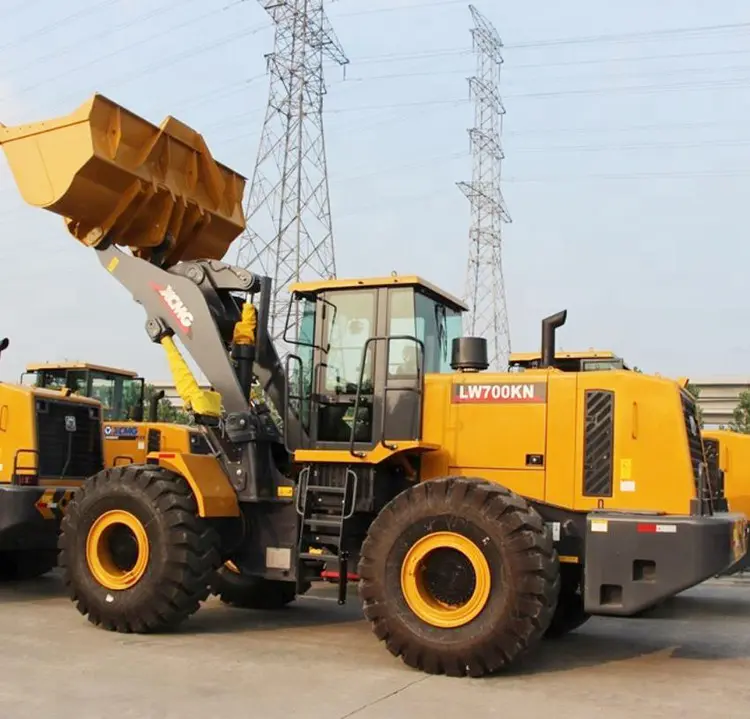

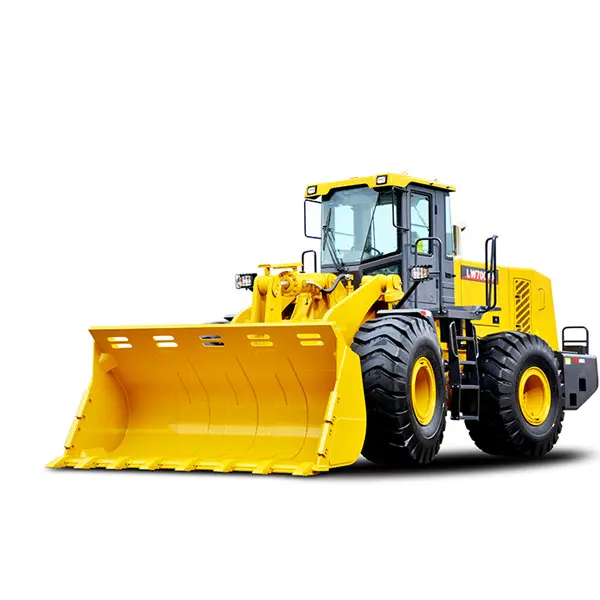

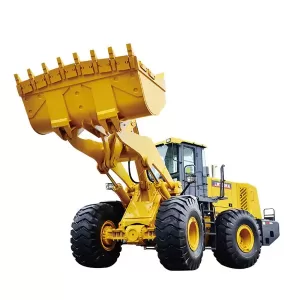

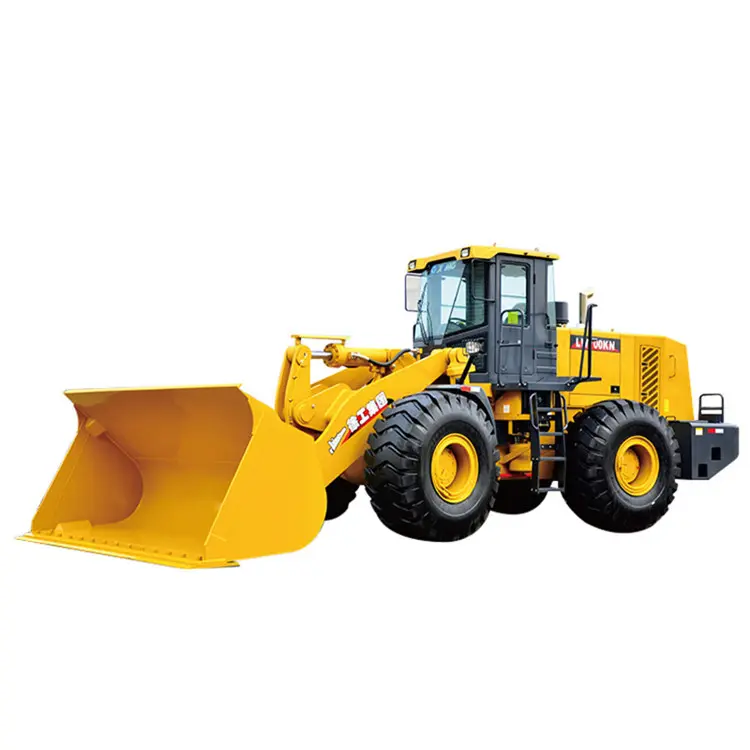

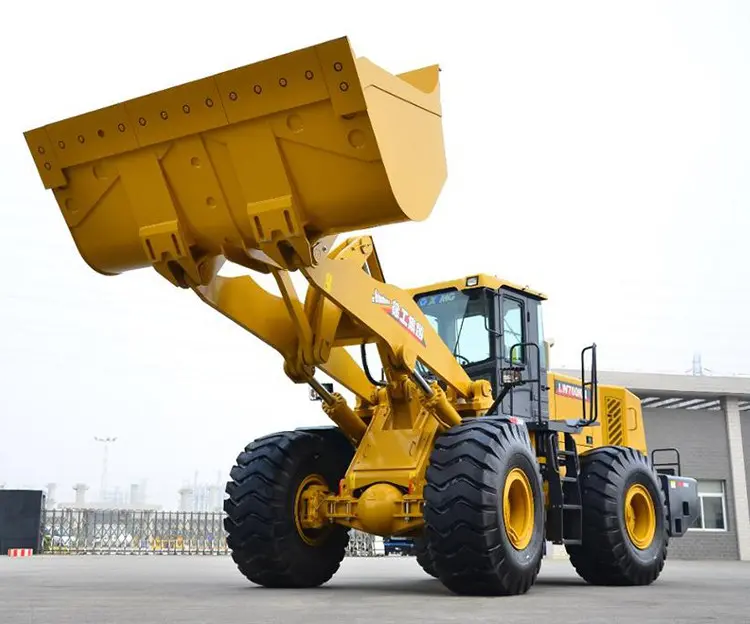

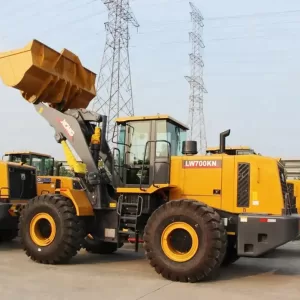

The LW700KN features a super-strong structural build, incorporating a long wheelbase and reinforced front and rear frames. The box-type design is engineered to withstand the torsional stress and heavy impact loads common in quarrying and mining environments, extending the equipment’s service life under rigorous conditions.
High-Efficiency Power and Drivetrain
Equipped with a high-performance 226 kW engine and an optimized torque converter, the loader delivers consistent traction and power. The powertrain is calibrated to provide high torque at low speeds, ensuring reliable material penetration while maintaining fuel efficiency during intensive work cycles.
Optimized Working Device
The machine utilizes a heavy-duty Z-bar linkage system that maximizes breakout force. The standard bucket is constructed from high-strength, wear-resistant materials, allowing for higher load retention and efficient loading of high-sided trucks and industrial hoppers.
Ergonomic Operating Environment
The full-view cab is designed with human-machine ergonomics as a priority. It provides the operator with maximum visibility, reduced noise levels, and intuitive control layouts. These features are essential for maintaining safety and productivity during long shifts in demanding industrial settings.
Simplified Maintenance Design
Following the concept of easy accessibility, the machine is designed with centrally located pressure measurement points and grease nipples. The “ground maintenance” layout allows for routine checks and daily servicing to be performed quickly, reducing machine downtime and improving fleet utilization.
Technical Specifications
| Item | Unit | Parameter |
| Rated Operating Load | kg | 7000 |
| Bucket Capacity | m³ | 3.5 – 6.0 |
| Machine Operating Weight | kg | 23500 |
| Dump Clearance at Maximum Lift | mm | 3200 – 3515 |
| Reach at Maximum Lift | mm | 1200 – 1315 |
| Wheelbase | mm | 3400 |
| Overall Machine Dimensions (L×W×H) | mm | 9100 × 3230 × 3515 |
| Engine Rated Power | kW | 226 |
| Max. Travel Speed | km/h | 38 |
| Max. Breakout Force | kN | ≥ 210 |
| Max. Traction Force | kN | ≥ 190 |
Dimensions and Operating Range
The XCMG LW700KN is designed with a stable footprint, featuring a total length of approximately 9100 mm and a width of 3230 mm. Its dumping clearance of up to 3515 mm (depending on configuration) enables the machine to load standard large-capacity dump trucks and hoppers. The 3400 mm wheelbase is specifically chosen to optimize weight distribution, providing maximum balance during full-bucket maneuvers in rugged terrain.
Supplier Support
We provide technical documentation and procurement support for the XCMG LW700KN wheel loader. Our services include assistance with equipment configuration and logistical coordination for international delivery. To ensure long-term operational uptime, relevant spare parts and maintenance components for this model are available through our supply network for buyers and dealers worldwide.
Frequently Asked Questions
What is the maximum rated load of the XCMG LW700KN?
The XCMG LW700KN has a rated operating load capacity of 7000 kg (7 tons).
What type of engine powers this 7-ton loader?
This model is equipped with a high-performance engine providing 226 kW of rated power, optimized for heavy-duty mining and infrastructure tasks.
Can the bucket size be adjusted for different materials?
Yes, the LW700KN can be configured with buckets ranging from 3.5 m³ for high-density materials to 6.0 m³ for lighter materials like coal, ensuring optimal loading efficiency.
What are the primary applications for the LW700KN?
It is widely used in heavy-duty sectors including open-pit mining, port bulk material handling, aggregate yards, and large-scale earthmoving projects.
Is the maintenance of this loader convenient for field operators?
Yes, the loader features a ground-accessible maintenance design, allowing service points to be reached easily to minimize service time and improve site safety.
