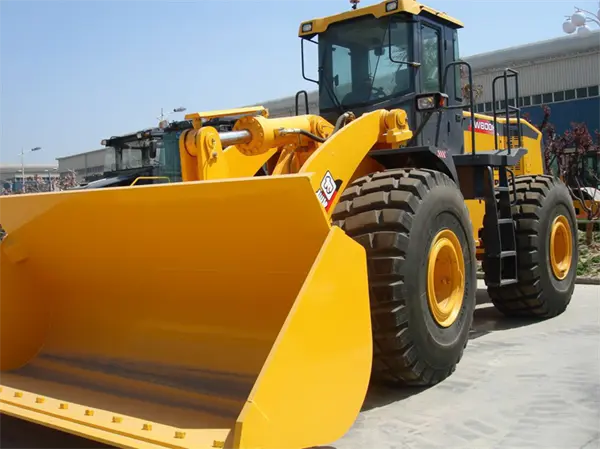

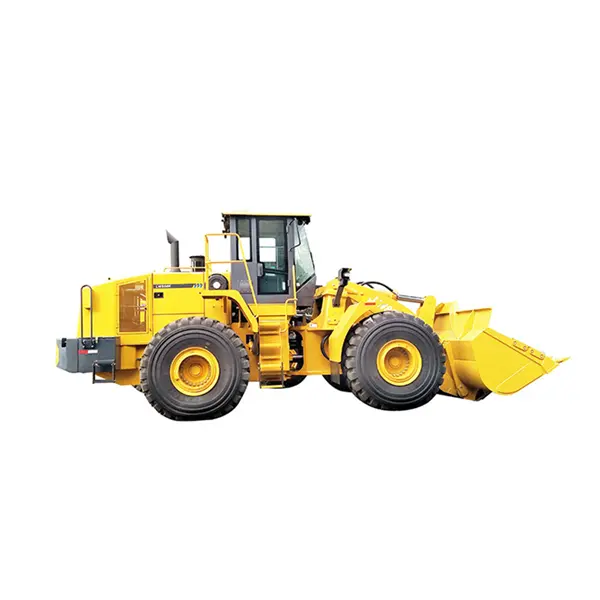

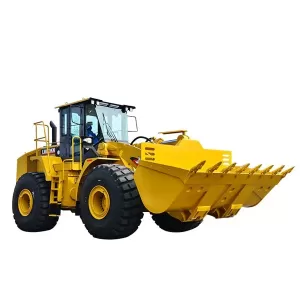

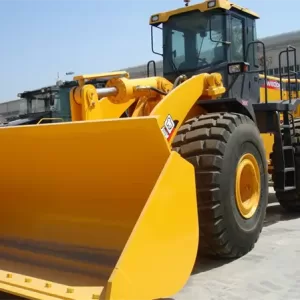

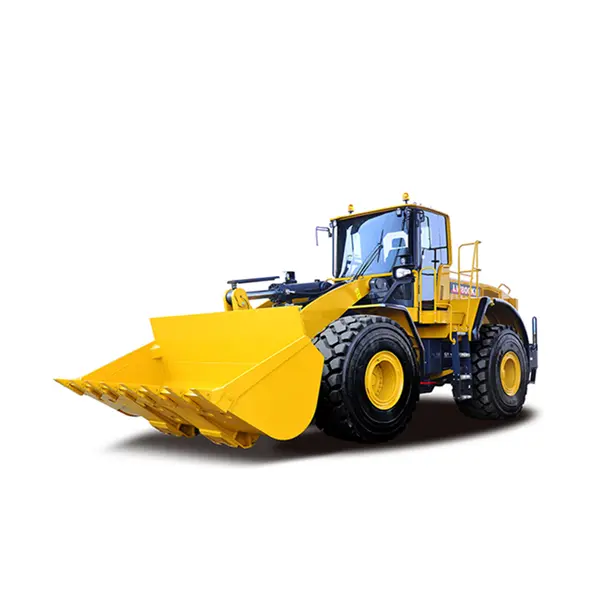

LW800KN 8 Ton Wheel Loader

Key Features and Applications

High-Performance Power System

The LW800KN is powered by an imported Cummins QSM11 electronic injection, turbocharged engine. Complying with Tier 3 emission regulations, it features an air-air inter-cooled system and high torque reserve. This enables powerful traction and rapid hydraulic response while maintaining lower fuel consumption and noise levels.

Advanced Hydraulic and Steering Technology

The hydraulic system utilizes pilot control and steering flow amplifying technology. A dual-pump combination system optimizes power consumption and increases efficiency. Lifting speed is highly efficient, with a lifting time of less than 6 seconds, ensuring short total work cycle times.

Enhanced Braking and Safety

Safety is supported by a full-hydraulic wet multi-disc brake system. The fully enclosed design prevents dirt ingress, reducing wear and eliminating the need for manual adjustment. The system operates on two independent hydraulic circuits, ensuring that if one circuit fails, the other maintains braking functionality.

Operational Efficiency and Comfort

Equipped with electromagnetic positioning technology, the loader features an automatic leveling function to reduce operator labor intensity. The single-handle guidance control and hydraulic expansion steering provide a flexible and convenient operating experience. The machine also includes an intelligent independent ventilation system that adjusts fan speed based on working conditions to save energy.

Durable Structural Design

The vehicle is built with a long wheelbase (3600 mm) and centered weight distribution to ensure stability during heavy-duty lifting. An integrated lubricating system ensures that friction parts operate normally, extending the service life of critical components.

Technical Specifications

Dimensions and Operating Range

The XCMG LW800KN is designed for large-scale job sites with an overall length of 9300 mm and a width of 3500 mm. The wheelbase of 3600 mm provides a stable platform for handling the rated 8000 kg load. Its electromagnetic automatic leveling and electromagnetic positioning assist in maintaining precision across varied dumping heights and radii, optimizing the loader for high-frequency work cycles in ports and mines.

Supplier Support

The LW800KN is designed for ease of maintenance. Engine and transmission filter elements are positioned for quick replacement to save service time. We provide complete technical documentation and parts support to ensure operational uptime. The integrated lubricating system simplifies the maintenance of friction components, ensuring the loader remains reliable in long-shift operations.

Frequently Asked Questions

What are the primary applications for the XCMG LW800KN?

The LW800KN is widely used in large ports for bulk loading, in mining for aggregate transport, and by logistics enterprises for heavy material handling.

What type of engine does the LW800KN use?

It is equipped with a high-performance Cummins QSM11 engine, which features electronic injection and turbocharging, meeting Tier 3 emission standards.

How does the braking system reduce maintenance?

The machine uses a full-hydraulic wet multi-disc brake system. Being fully enclosed, it prevents dirt and water from entering the system, reducing wear and eliminating the need for periodic adjustments.

What is the maximum breakout force of this loader?

The XCMG LW800KN provides a maximum breakout force of 260 kN, enabling it to handle tough materials and hard stockpiles effectively.
