Product Details:
Key Features and Applications
Optimized Low-Profile Design

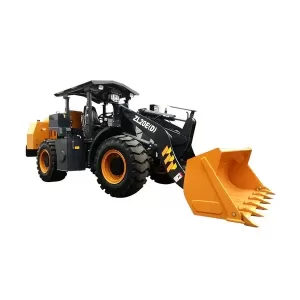

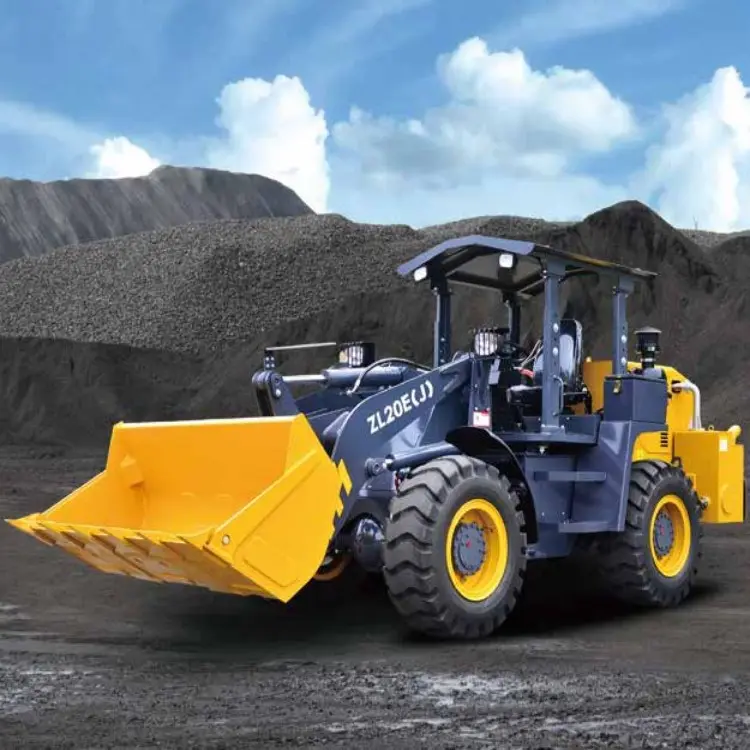

The ZL20E features a compact structural layout and reduced height profile, specifically developed for underground mines and small-bore tunnels. Its streamlined dimensions allow it to operate effectively in restricted spaces where vertical clearance is a primary constraint.
Reinforced Structural Integrity
Designed for the harsh conditions of underground operations, the machine incorporates a reinforced front and rear frame. The box-type structural design is engineered to withstand the torsional stress and impact loads common in rock mining and tunneling environments, ensuring long-term operational reliability.
Efficient Material Handling
Equipped with a 1.0 m³ specialized bucket, the ZL20E delivers powerful breakout force and fast cycle times. The hydraulic system is calibrated to provide smooth control during loading and dumping, enhancing productivity in high-frequency material transport tasks.
Maneuverability in Confined Spaces
The articulated steering system and optimized wheelbase allow for a tight turning radius. This agility is essential for navigating narrow underground tracks, sharp corners, and crowded loading zones within tunnel infrastructure projects.
Technical Specifications
| Item | Unit | Parameter |
| Rated Operating Load | kg | 2000 |
| Bucket Capacity | m³ | 1.0 |
| Machine Operating Weight | kg | 6700 |
| Dump Clearance at Maximum Lift | mm | 2510 |
| Reach at Maximum Lift | mm | 920 |
| Wheelbase | mm | 2300 |
| Overall Machine Dimensions (L×W×H) | mm | 6125 × 2050 × 2350 |
| Maximum Breakout Force | kN | 65 |
| Maximum Traction Force | kN | 55 |
| Turning Radius (Outside Bucket) | mm | 5350 |
Dimensions and Operating Range
The XCMG ZL20E is designed with a total length of 6125 mm and a width of 2050 mm, ensuring it remains within standard transport and operational dimensions for underground projects. The dumping clearance of 2510 mm is suitable for loading specialized underground hauling trucks and low-profile hoppers. Its wheelbase of 2300 mm is specifically selected to balance structural stability with the maneuverability required for site-specific constraints.
Supplier Support
We provide comprehensive procurement support for the XCMG ZL20E wheel loader. Our services include assisting international buyers with detailed technical documentation, equipment configuration consulting, and logistical coordination for global delivery. To ensure long-term equipment uptime, we facilitate access to relevant spare parts and maintenance components through our supply network.
Frequently Asked Questions
What is the primary application of the XCMG ZL20E?
The ZL20E is specifically designed for underground mining, tunneling, and construction projects where a low-profile machine is required to operate in height-restricted areas.
What is the rated load capacity of this loader?
This model has a rated operating load of 2000 kg (2 tons) with a standard 1.0 m³ bucket.
Can the XL20E navigate narrow tunnels?
Yes, with an overall width of 2050 mm and an articulated steering design, the machine is highly maneuverable and suited for narrow underground environments.
What is the maximum dumping height of the ZL20E?
The machine provides a maximum dumping height of 2510 mm, which is optimized for loading underground transport equipment and hoppers.
