Product Details:
Key Features and Applications
Reinforced Mining-Grade Structure

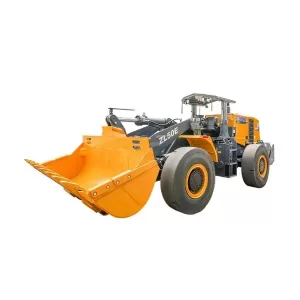

The ZL50E-RC features a super-strong structural build, specifically intended to withstand the high torsional stress and heavy impact loads typical of rock mining and quarrying. Both the front and rear frames are reinforced to ensure a stable platform during full-load maneuvering on uneven terrain.
High-Efficiency Power System
Equipped with a 162kW high-torque engine, the loader provides consistent traction and hydraulic power. The powertrain is optimized for heavy-load penetration, ensuring that the machine can handle tough materials and maintain productive cycle times during high-frequency loading tasks.
Optimized Working Device
The machine utilizes a heavy-duty linkage system and a 3.0m³ specialized rock bucket. The geometry of the working device is calibrated to maximize breakout force and bucket retention, which is essential for handling high-density materials like minerals and blasted rock.
Reliable Hydraulic Performance
The integrated hydraulic system ensures smooth transitions and precise control over hoisting and dumping maneuvers. This sensitivity allows for accurate material placement, reducing operational wear and enhancing overall job site safety and efficiency.
Multi-Sector Industrial Use
This 5-ton mining loader is suitable for several demanding applications:
-
Mining & Quarrying: Loading and transporting ores, aggregate, and stone.
-
Heavy Construction: Large-scale site grading and bulk material handling.
-
Industrial Yards: Efficient loading of high-sided trucks and material hoppers.
Technical Specifications
| Item | Unit | Parameter |
| Rated Operating Load | kg | 5000 |
| Bucket Capacity | m³ | 3.0 |
| Operating Weight | kg | 18000 |
| Dump Clearance at Max. Lift | mm | 3110 |
| Reach at Max. Lift | mm | 1200 |
| Engine Rated Power | kW | 162 |
| Engine Rated Speed | r/min | 2200 |
| Maximum Breakout Force | kN | 170 |
| Maximum Traction Force | kN | 160 |
| Total Cycle Time | s | < 11.5 |
Dimensions and Operating Range
The XCMG ZL50E-RC is designed with a wheelbase and tread width that prioritize longitudinal stability for 5-ton material cycles. The standard dumping height of 3110 mm is suitable for most mining-class transport vehicles and industrial hoppers. Its articulated steering mechanism allows for efficient maneuvering in restricted working faces and loading zones, ensuring consistent performance in high-density job sites.
Supplier Support
We provide comprehensive procurement and technical support for the XCMG ZL50E-RC wheel loader. Our services include the provision of detailed technical documentation and assistance with equipment configuration to meet international project standards. All relevant maintenance parts and spare components for this model are available through our global supply chain to support the long-term uptime of the equipment.
Frequently Asked Questions
What is the primary application of the XCMG ZL50E-RC?
The ZL50E-RC is specifically designed for mining, quarrying, and heavy-duty industrial material handling, where high breakout force and structural reinforcement are required.
What is the rated load capacity of this loader?
This model has a rated operating load of 5,000 kg (5 tons) and comes standard with a 3.0m³ bucket.
What type of engine is used in the ZL50E-RC?
The loader is equipped with a 162 kW high-torque engine, optimized for industrial performance and reliability in heavy-lift duty cycles.
Is the frame reinforced for rock handling?
Yes, the “RC” mining version features reinforced front and rear frames designed to resist impact and torsional stress common in mining environments.
