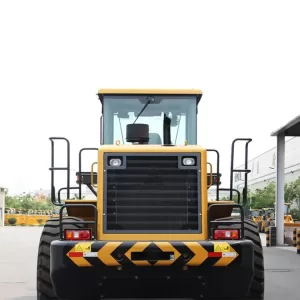

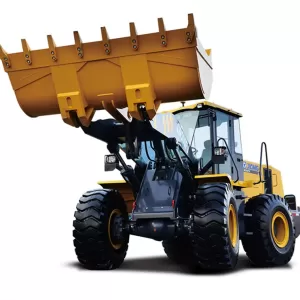

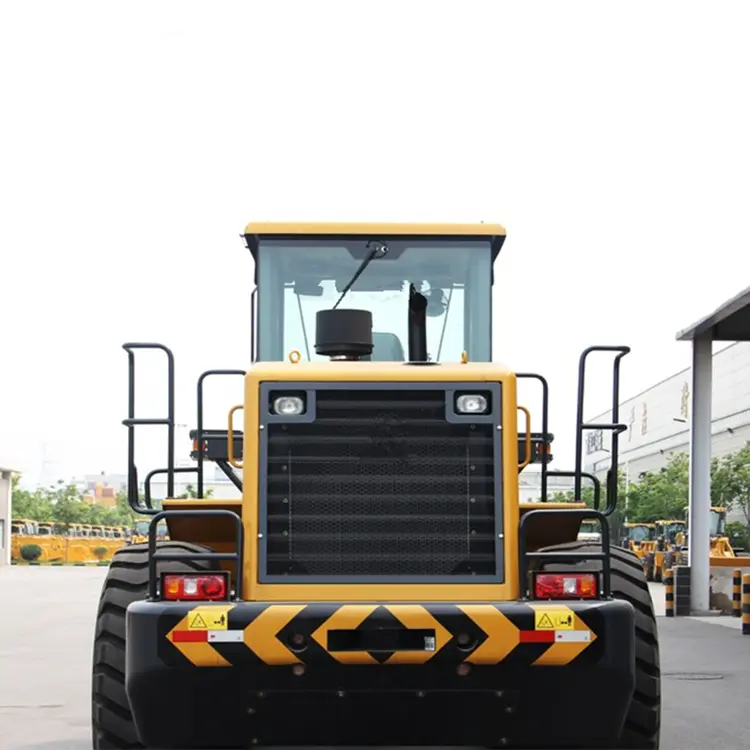

ZL50FV 5 Ton Wheel Loader
Product Details:
Product Description
On the basis of international technological resources, the ZL50FV 5 ton wheel loader is the most recent cross-generation product.
The new generation loader boasts remarkable benefits (such as efficiency) in the domains of engineering constructions, aggregate yards, and coal logistics by focusing on customer value and stressing customer experiences.
Main Parameters
| Item | Unit | Parameter |
| Rated operating load | kg | 5000 |
| Bucket capacity | m³ | 2.5-4.5 |
| Machine weight | kg | 16900 |
| Max. breakout force | kN | 170 |
| Wheel tread | mm | 2250 |
| Wheelbase | mm | 2960 |
| Overall machine dimension L×W×H | mm | 7910×3016×3515 |
| Engine model | – | SC9DK220G3 |
| Rated Power | kW | 250 |
Product Performance
1. The proprietary high-torque, high-efficiency transmission chain has reasonable matching properties.
2. The front frame is made up of an integrally cast box structure, with lugs and the rear beam welded together by a special-shaped box beam and a high-bearing-capacity bent plate.
3. The front and rear frame joints use a rolling bearing + steering knuckle bearing arrangement, which provides excellent bearing capacity and operating stability.
4. This product features high mobility and flexibility, as well as good field adaptability, thanks to its short wheelbase and tiny turning radius.
5. Ergonomic layout The cab has an overall skeleton construction, superb interior elements, sound insulation and noise reduction techniques, a huge field of vision, a lot of space, and a lot of comfort.
6. There is a variety of configurations.
* The 160kN traction force and ≥3.5m high dumping capacity
handle the severe conditions with ease.
* ≥7,500kg lifting capacity and 170kN breakout force handle all kinds of materials with ease.
*ZL50FV 5 ton wheel loader has various attached tools meeting requirementsof different working conditions
Clamp: For grab and transport of various woods and tubing.
Snow plough: For snow removing in roads and urban streets.
