Product Details:
Key Features and Applications
Reinforced Structural Design

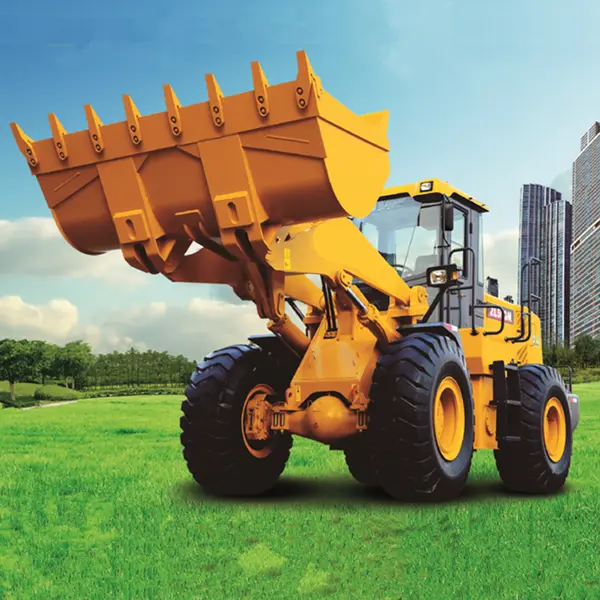

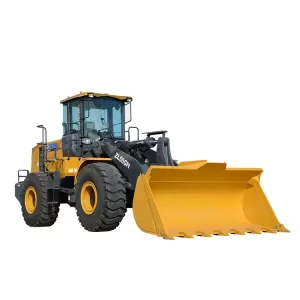

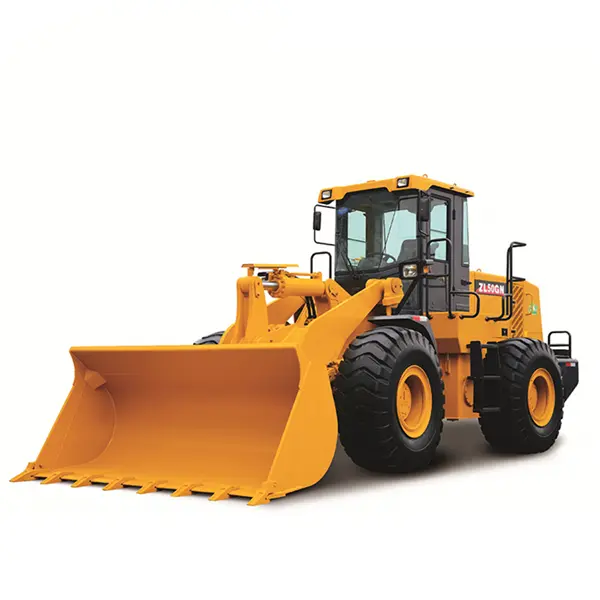

The ZL50GN features a super-strong structural build, incorporating reinforced front and rear frames with a heavy-duty box-type structure. This design increases the carrying capacity and improves the equipment’s resistance to torsional stress and heavy impact loads typical of mining and quarrying environments.
High Breakout Force and Traction
Equipped to handle tough materials and hard stockpiles, the machine delivers a breakout force of ≥170kN and a traction force of ≥160kN. These performance metrics ensure efficient penetration into material piles and stable performance during heavy-duty stockpiling cycles.
Reliable Powertrain and Efficiency
Powered by a high-torque 162kW engine and paired with a specialized heavy-duty drive system, the loader provides smooth power transmission. The optimized hydraulic system enables a total work cycle time of less than 10.5 seconds, significantly increasing productivity in high-frequency loading scenarios.
Ergonomic Operator Environment
The full-view cab is designed with human-machine ergonomics as a priority. It provides the operator with maximum visibility, reduced noise levels, and intuitive control layouts. These features are essential for maintaining safety and productivity during long shifts in demanding industrial settings.
Versatile Industrial Utility
This 5-ton loader is a multipurpose asset suitable for several sectors:
-
Infrastructure & Construction: Bulk material transport and site grading.
-
Mining & Quarrying: Loading heavy minerals, rocks, and aggregate handling.
-
Ports & Logistics: Efficient loading and unloading of transport vehicles and hoppers.
Technical Specifications
| Item | Unit | Parameter |
| Rated operating load | kg | 5000 |
| Bucket capacity | m³ | 2.5 ~ 4.5 |
| Machine weight | kg | 17500 ± 300 |
| Dump clearance at maximum lift | mm | 3100 ~ 3700 |
| Reach at maximum lift | mm | 1100 ~ 1220 |
| Wheelbase | mm | 3300 |
| Overall machine dimension (L×W×H) | mm | 8225 × 3016 × 3485 |
| Engine Rated Power / Speed | kW / rpm | 162 / 2200 |
| Traction Force | kN | ≥ 160 |
| Breakout Force | kN | ≥ 170 |
| Total Cycle Time | s | < 10.5 |
Dimensions and Operating Range
The XCMG ZL50GN features an overall length of 8225 mm and a width of 3016 mm, providing a stable footprint for 5-ton material cycles. With a dump clearance ranging from 3100 mm to 3700 mm (depending on configuration), it is highly effective for loading standard high-sided trucks and industrial hoppers. The 3300 mm wheelbase ensures a balanced center of gravity, maintaining stability during full-bucket maneuvers on uneven terrain.
Supplier Support
We provide professional procurement and technical support for the XCMG ZL50GN wheel loader. Our services include the provision of detailed technical documentation, official quotations, and assistance with logistical coordination for international delivery. To support long-term operational uptime, all relevant maintenance parts and spare components for this model are available through our supply network for international buyers and dealers.
Frequently Asked Questions
What is the standard bucket capacity of the XCMG ZL50GN?
The standard bucket capacity is approximately 3.0 m³, but it can be configured with buckets ranging from 2.5 m³ to 4.5 m³ to suit different material densities such as coal, rock, or soil.
What engine is used in this 5-ton loader?
The ZL50GN is equipped with a 162 kW engine (typically Weichai or equivalent depending on regional configuration), optimized for high torque and reliability in industrial construction.
Is the ZL50GN suitable for mining applications?
Yes, due to its reinforced box-frame structure and high breakout force (≥170kN), the ZL50GN is specifically designed to perform reliably in mining and quarrying environments.
What is the maximum travel speed of the ZL50GN?
The loader is designed for efficient site relocation, reaching maximum speeds typical for its class (up to 38-40 km/h depending on gear and terrain).
