Product Details:
Key Features and Applications
Reinforced Mining-Grade Structure
The ZL50GV features a super-strong structural design, including heavy-duty box frames that distribute stress effectively. This reinforced build is specifically intended to withstand the torsional stress and impact loads common in open-pit mining and quarrying environments, ensuring a stable platform for high-frequency loading.
Optimized High-Efficiency Powertrain
Equipped with a high-torque 162kW engine and a specialized heavy-duty drive system, the loader provides smooth power transmission and consistent traction. The powertrain is calibrated to balance fuel economy with the high breakout force required for penetrating hard material stockpiles.
Advanced Hydraulic and Working Device
The machine utilizes an optimized Z-bar linkage system that maximizes breakout force and improves bucket retention. The high-capacity hydraulic system enables a total work cycle time of less than 10.5 seconds, significantly increasing site productivity during truck-loading and stockpiling operations.
Ergonomic Operator Environment
The full-view cab is designed with human-machine ergonomics as a priority. It provides the operator with maximum visibility, reduced noise levels, and intuitive control layouts. These features are essential for maintaining safety and productivity during long shifts in demanding industrial settings.
Versatile Industrial Utility
This 5-ton wheel loader is a multipurpose asset suitable for:
-
Mining & Quarrying: Loading heavy minerals, rocks, and aggregate.
-
Infrastructure & Construction: Bulk material transport and site grading.
-
Ports & Logistics: Efficient loading and unloading of transport vehicles and hoppers.
Technical Specifications
| Item | Unit | Parameter |
| Rated Operating Load | kg | 5000 |
| Bucket Capacity | m³ | 2.5 ~ 4.5 |
| Machine Operating Weight | kg | 17500 ± 300 |
| Dump Clearance (at max. lift) | mm | 3100 ~ 3700 |
| Reach at Max. Lift | mm | 1100 ~ 1220 |
| Wheelbase | mm | 3300 |
| Engine Rated Power | kW | 162 |
| Rated Engine Speed | rpm | 2200 |
| Traction Force | kN | ≥ 160 |
| Breakout Force | kN | ≥ 170 |
| Total Cycle Time | s | < 10.5 |

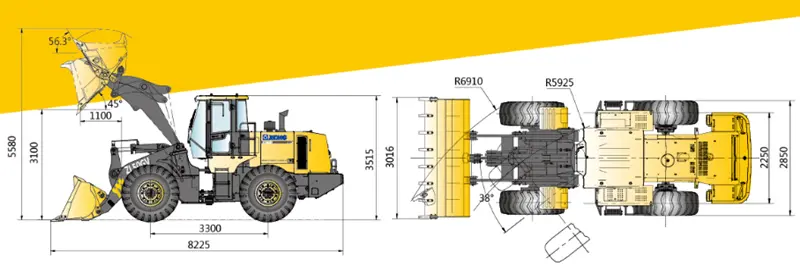

Dimensions and Operating Range
The XCMG ZL50GV features a wheelbase of 3300 mm and overall dimensions of approximately 8225 × 3016 × 3485 mm, providing a stable footprint for 5-ton material cycles. It offers a versatile dumping range, with a clearance height between 3100 mm and 3700 mm depending on the bucket configuration. The maximum reach of 1220 mm at full lift height ensures the machine can efficiently load various high-sided trucks and material hoppers.
Supplier Support
We provide technical documentation and procurement support for the XCMG ZL50GV wheel loader. Our services assist international buyers with equipment configuration consulting and logistical coordination for global delivery. To ensure long-term equipment uptime, relevant maintenance parts and spare components for this model are available through our supply network.
Frequently Asked Questions
What is the maximum rated load of the XCMG ZL50GV?
The XCMG ZL50GV has a rated operating load capacity of 5000 kg (5 tons).
What are the bucket options for this loader?
The standard bucket capacity is 3.0 m³, but the ZL50GV can be configured with buckets ranging from 2.5 m³ to 4.5 m³ to suit different material densities such as coal, earth, or stone.
Is the ZL50GV suitable for mining operations?
Yes, this model is a reinforced version specifically designed for “GV” (mining/heavy-duty) conditions, featuring a reinforced frame and high breakout force for tough materials.
What engine is equipped in this model?
The ZL50GV is equipped with a high-torque 162 kW engine, optimized for balancing fuel efficiency with heavy-duty performance.
