Product Details:
Key Features and Applications
High-Efficiency Stacking Performance

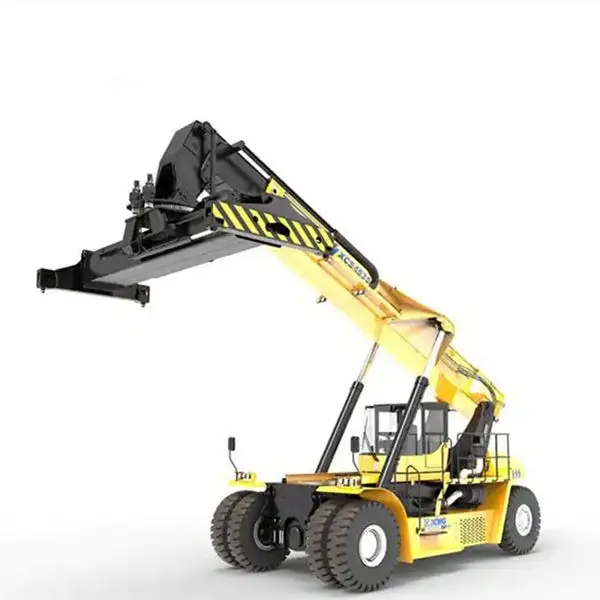

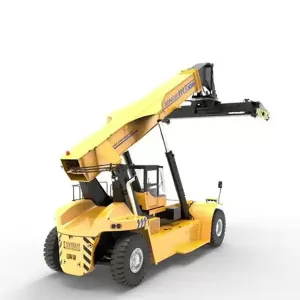

The XCS4535K is optimized for high-density storage yards, capable of stacking containers up to five layers high in the first row. The telescopic boom and rotating spreader allow for precise container placement and rapid handling cycles, significantly improving terminal throughput.
Advanced Intelligent Control System
Equipped with a comprehensive electronic monitoring system, the reach stacker provides real-time load management and anti-tip protection. This intelligent interface assists operators in maintaining stability and preventing overload scenarios during complex lifting maneuvers.
Robust Structural Engineering
The chassis and boom are constructed from high-strength steel to withstand the torsional stresses typical of heavy container movements. The reinforced structural design ensures consistent stability even when extending to handle containers in the second or third tracks.
Operator-Centric Design
The cab is designed with a focus on ergonomics and visibility. The high-sitting position and expansive glass area provide the operator with a clear view of the container corner castings and the surrounding workspace, supporting safety and reducing fatigue during long shifts.
Reliable Drive Components
Utilizing internationally recognized powertrain components, the XCS4535K delivers steady traction and smooth gear shifting. This configuration is essential for consistent travel performance and gradeability on various industrial surfaces typical of port terminals.
Technical Specifications
| Item | Unit | Parameter |
| Max. Lifting Capacity (1st Row) | kg | 45,000 |
| Max. Lifting Capacity (2nd Row) | kg | 35,000 |
| Max. Lifting Capacity (3rd Row) | kg | 19,000 |
| Max. Stacking Layers | – | 5 (9′ 6″ Container) |
| Wheelbase | mm | 6,000 |
| Engine Rated Power | kW | 250 |
| Max. Travel Speed (Full/No Load) | km/h | 21 / 25 |
| Spreader Rotation Angle | deg | +105 / -195 |
| Overall Machine Weight | kg | 71,000 |
Dimensions and Operating Range
The XCMG XCS4535K features a 6,000 mm wheelbase designed to maintain a low center of gravity during high-reach maneuvers. The telescopic boom allows for a versatile working radius, capable of reaching containers in second or third rows. Its articulated steering system ensures the maneuverability required to operate effectively in restricted loading lanes and crowded warehouse aisles.
Supplier Support
We provide technical documentation and procurement support for the XCMG XCS4535K reach stacker. Our services include assistance with equipment configuration and logistical planning for international shipping. To ensure ongoing operational uptime, we facilitate access to relevant maintenance components and spare parts for international buyers and port authorities.
Frequently Asked Questions
What is the maximum stacking height of the XCMG XCS4535K?
The XCS4535K is capable of stacking standard 9’6″ ISO containers up to 5 layers high in the first row.
Can this reach stacker handle both 20-foot and 40-foot containers?
Yes, it is equipped with a telescopic spreader that is adjustable to securely handle both standard 20-foot and 40-foot containers.
What is the lifting capacity for containers in the second row?
The machine is rated to lift 35,000 kg in the second row and 19,000 kg in the third row, providing high flexibility for yard sorting and container organization.
Is the cabin designed for safe operations?
Yes, the cab offers a wide field of vision and is integrated with an intelligent safety system that monitors real-time load data to prevent tipping and overloading.
