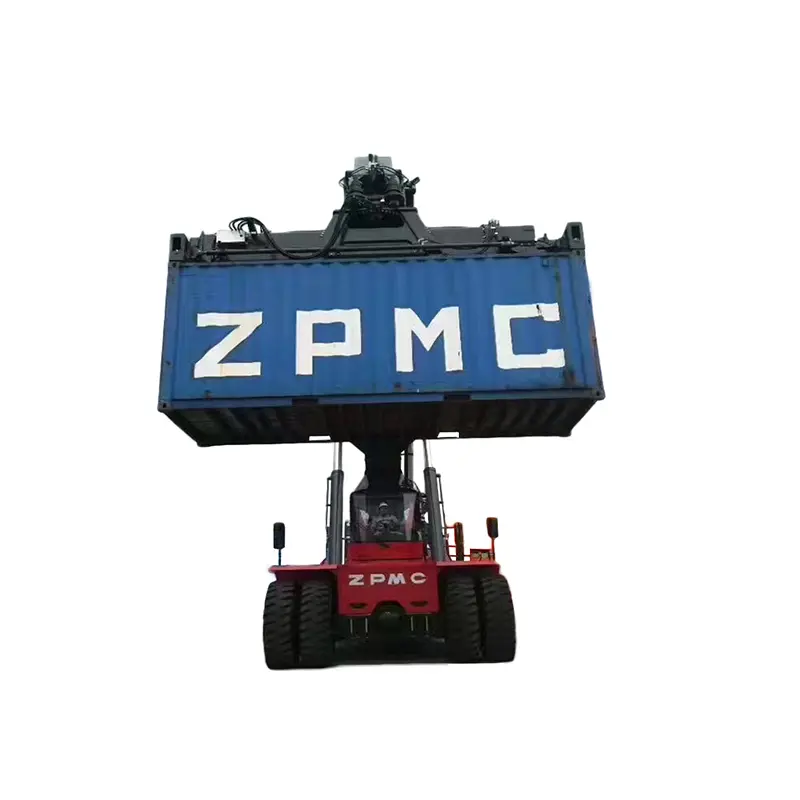

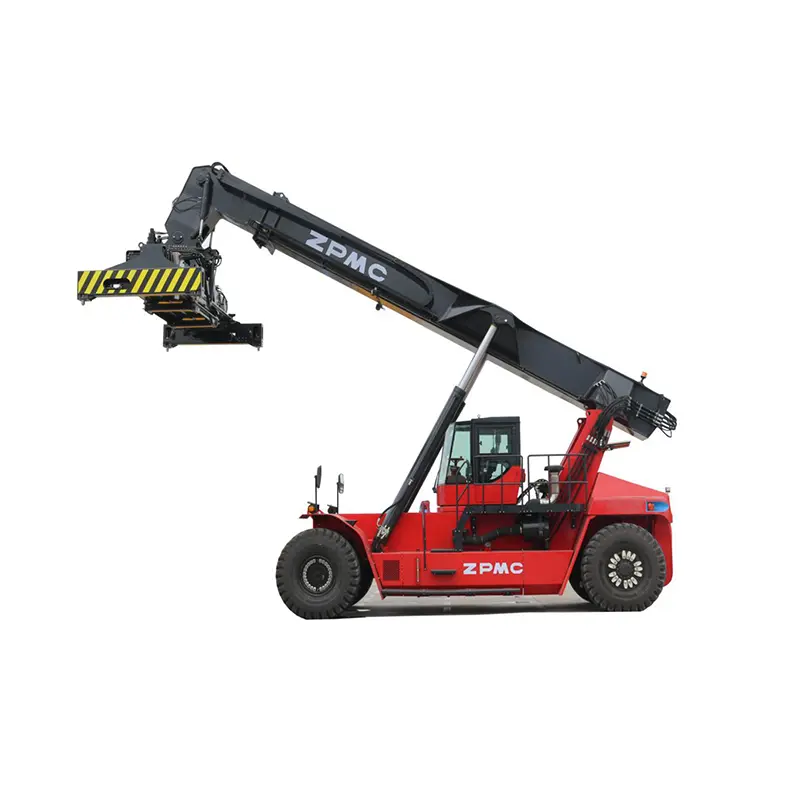

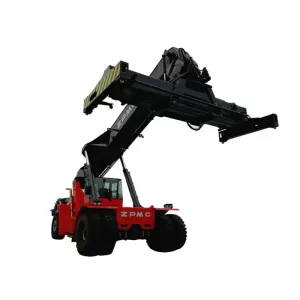

ZHRS4545 ZPMC 45ton container reach stacker
The ZPMC ZHRS4545 is a heavy-duty container reach stacker designed for efficient material handling in port terminals, railway hubs, and large-scale logistics yards. With a maximum rated capacity of 45 tons, this machine is engineered to handle 20-foot and 40-foot ISO containers with precision. It balances powerful lifting performance with high maneuverability, allowing for optimized container stacking and transport in high-density environments. The ZHRS4545 focuses on structural durability and stable load management to meet the rigorous demands of international port operations.
Quick Specifications
-
Rated Load: 45,000 kg (1st row)
-
Stacking Height: Up to 5 layers (9’6″ containers)
-
Spreader Range: 20′ – 40′ Telescopic
-
Engine Power: 250 kW – 265 kW (typical configuration)
-
Drive Axle: Kessler series
Product Details:
Key Features and Applications
High Lifting Capacity and Stacking Reach
The ZHRS4545 provides substantial lifting power, managing 45 tons in the first row, 31 tons in the second row, and 15 tons in the third row. This multi-row reach capability allows operators to stack containers up to five layers high, significantly maximizing yard storage density.
Durable Structural Engineering
The chassis and boom are constructed from high-strength steel to withstand the torsional stresses associated with heavy container movements. The reinforced boom design ensures consistent stability even when extending to handle containers in the second or third tracks of a railway or stacking row.
Precision Control System
Equipped with an advanced hydraulic system and ergonomic joystick controls, the machine offers smooth and sensitive maneuvering. This enables the precise alignment of the spreader with container corner castings, reducing cycle times and improving operational safety.
Proven Drive Components
The stacker utilizes internationally recognized components, including Kessler drive axles and high-torque transmissions. These parts are selected for their ability to deliver reliable traction and braking performance on various industrial surfaces typical of port terminals.
Versatile Logistical Utility
This equipment is a multipurpose solution for various sectors:
-
Port Terminals: Efficient loading, unloading, and yard stacking of shipping containers.
-
Intermodal Railway Hubs: Moving containers between rail cars and yard storage.
-
Logistics Centers: Managing high-volume freight movements and container organization.
Technical Specifications
| Item | Unit | Parameter |
| Model | – | ZHRS4545 |
| Rated Load (1st/2nd/3rd row) | kg | 45,000 / 31,000 / 15,000 |
| Max. Stacking Height | layers | 5 (9’6″ containers) |
| Spreader Rotation Angle | deg | +105 / -195 |
| Spreader Side-shift | mm | ± 800 |
| Wheelbase | mm | 6,000 |
| Overall Machine Weight | kg | ~70,000 |
| Travel Speed (Full/No Load) | km/h | 21 / 25 |
Dimensions and Operating Range
The ZHRS4545 features a 6,000mm wheelbase designed to maintain a low center of gravity during high-reach operations. The telescopic boom allows for flexible radius management, while the rotating spreader provides the necessary orientation adjustments for placing containers in narrow lanes or uneven stacks. Its compact turning radius ensures site accessibility in restricted intermodal terminals.
Supplier Support
We provide technical documentation and procurement coordination for the ZPMC ZHRS4545 reach stacker. Our supply chain support includes assistance with equipment configuration and logistical planning for international shipping. To ensure ongoing operational uptime, we facilitate access to maintenance components and spare parts for international buyers and port authorities.
Frequently Asked Questions
What is the maximum stacking height of the ZPMC ZHRS4545?
The ZHRS4545 can stack standard 9’6″ ISO containers up to 5 layers high in the first row.
Can this reach stacker handle both 20′ and 40′ containers?
Yes, it is equipped with a telescopic spreader that can be adjusted to securely handle both 20-foot and 40-foot standard containers.
What is the lifting capacity for containers in the second row?
The machine is rated to lift 31 tons in the second row, providing versatility for yard sorting and container organization.
Which components are used in the drive system?
The ZHRS4545 typically utilizes high-performance Kessler drive axles and engines from recognized manufacturers like Volvo, depending on the specific model year and configuration.
