Product Details:
Key Features and Applications
High Operational Efficiency
This straddle carrier is purpose-built for the horizontal transfer of shipping containers. It streamlines yard operations by straddling containers directly, eliminating the need for auxiliary loading equipment and reducing overall cycle times in busy terminal environments.
Advanced Hydrostatic Drive
Equipped with hydrostatic travel technology, the machine provides stepless speed regulation and smooth acceleration. This drive system ensures precise positioning during stacking and fluid movement during transit, contributing to energy savings and reduced mechanical wear.
Intelligent Electric Control
The integration of a CAN-bus system allows for accurate data transmission and high reliability over long distances. High-performance electrical components and sensors monitor the machine’s status in real-time, providing the operator with critical feedback for safe and efficient maneuvers.
Robust Structural Design
Utilizing dynamic simulation technology in the design process, the steel structure is built for a long service life. The frame is engineered to withstand the torsional stresses associated with high-reach lifting and transport on various industrial surfaces.
Integrated Safety Systems
To safeguard operators and cargo, the unit is equipped with an anti-rollover protection system and a specialized side-shift mechanism for precise stacking. Solid tires are used to ensure endurance and stability under heavy-load conditions.
Technical Specifications
| Item | Unit | Parameter |
| Rated Lifting Capacity | kg | 40,000 |
| Max. Stacking Height | Layers | 2 (1 over 1) |
| Travel Speed (Unladen) | km/h | 20 – 30 |
| Travel Speed (Laden) | km/h | 15 – 20 |
| Drive Type | – | Hydrostatic |
| Control System | – | CAN-bus |
| Spreader Type | – | 20ft/40ft Telescopic |
| Tire Type | – | Solid Tires |

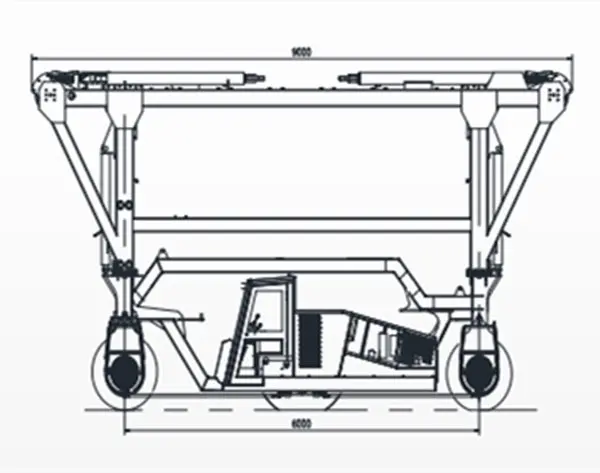

Dimensions and Operating Range
The Customizable Double Deck Container Straddle Carrier features structural dimensions that can be tailored to specific site requirements. Its internal clear width is designed to straddle standard highway transport trailers and yard stacks. The vertical lifting range is optimized for 2-high stacking of standard 9’6″ ISO containers. The articulated or multi-wheel steering system provides the maneuverability required to operate effectively in restricted loading lanes.
Supplier Support
We provide technical consultation and procurement support for customizable straddle carriers. Our services include assistance with technical documentation, equipment configuration consulting based on yard layout, and logistical coordination for global delivery. To ensure ongoing operational reliability, relevant maintenance parts and technical guidance for the hydraulic and electronic control systems are available through our supply network.
Frequently Asked Questions
What container sizes can this straddle carrier handle?
The machine is equipped with a telescopic spreader compatible with standard 20-foot and 40-foot ISO shipping containers.
Is the lifting capacity customizable?
Yes, while the standard rated load is 40 tons for ISO containers, the structural design can be customized to meet specific load requirements and industrial component handling needs.
What are the benefits of the hydrostatic drive?
The hydrostatic drive system offers smoother movement, more precise control during stacking, and lower maintenance costs compared to traditional mechanical transmission systems.
Does the machine include safety protection against tipping?
Yes, the unit features an integrated anti-rollover protection system and electronic sensors to maintain stability during travel and lifting operations.
