Product Details:
Key Features and Applications
High-Reach Telescopic Performance

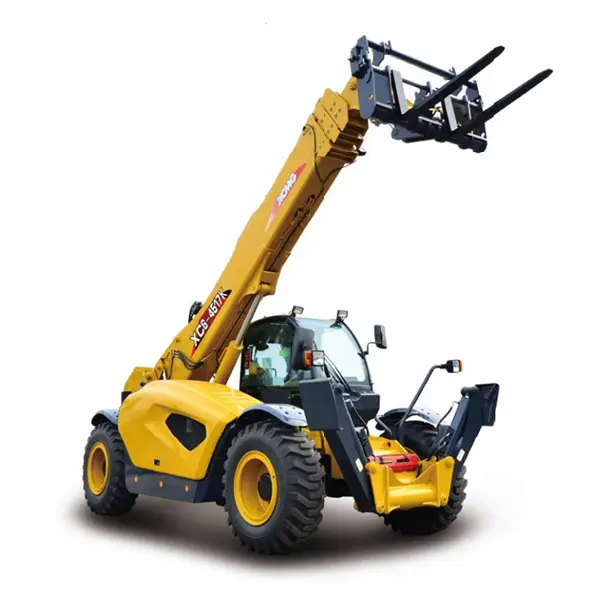

The XC6-4517K is equipped with a high-strength telescopic boom that reaches a maximum height of approximately 16.7 meters. This allows operators to transport and place loads onto high-tier scaffolding or multi-story structures with precision. Its horizontal reach of over 12 meters is ideal for loading from the far side of transport trailers or reaching across job site obstacles.
Advanced Maneuverability and Steering
To enhance site efficiency, the machine features a multi-mode steering system. Operators can switch between front-wheel steering for road travel, four-wheel steering for tight turning radii in restricted areas, and crab-walk steering for lateral movement near building walls or warehouse racks.
Reliable Off-Road Capability
With its four-wheel-drive (4WD) system and high ground clearance, the telehandler is designed for challenging off-road conditions. The powertrain is built to maintain consistent traction on unpaved surfaces, while the hydraulic outriggers provide a stable foundation for stationary heavy lifting at maximum height and reach.
Ergonomic and Safe Operator Cabin
The cab is designed with human-machine interaction at the forefront, offering an expansive field of vision. It incorporates critical safety features, including a Load Moment Indicator (LMI) to prevent overloading and FOPS/ROPS certified structures to protect the operator during intensive industrial work cycles.
Multi-Functional Attachment Utility
This telescopic handler serves as a multi-purpose platform. It can be fitted with standard pallet forks, buckets, aerial work platforms, or specialized clamps. This flexibility makes it a cost-effective asset for contractors needing one machine to handle diverse tasks including material transport, site cleaning, and structural installation.

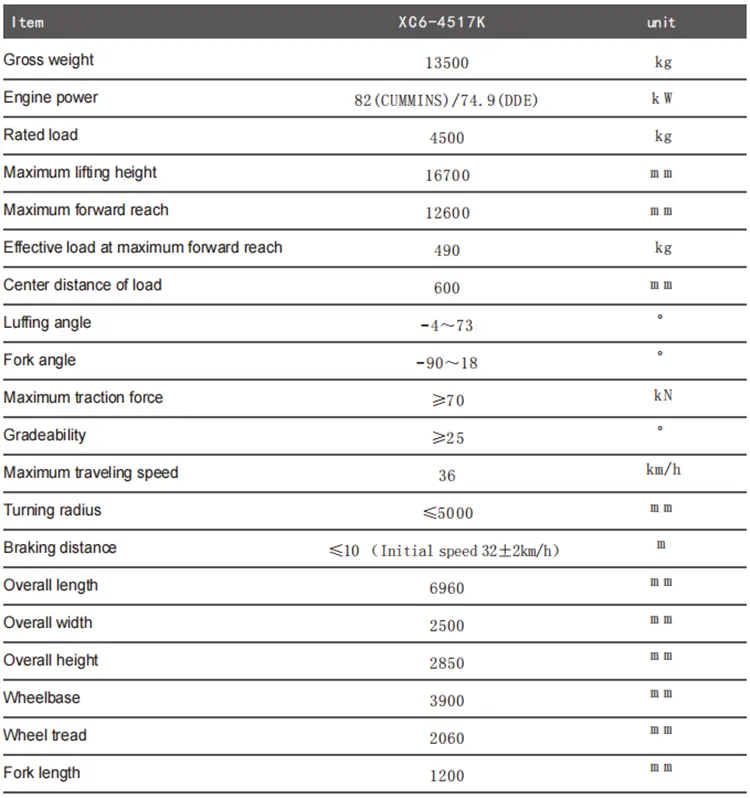

Technical Specifications
| Item | Unit | Parameter |
| Rated Operating Load | kg | 4500 |
| Max Lift Height | mm | 16700 |
| Max Horizontal Reach | mm | 12600 |
| Operating Weight | kg | 13600 |
| Engine Rated Power | kW | 75 |
| Max Travel Speed | km/h | 35 |
| Max Gradeability | % | 45 |
| Wheelbase | mm | 3070 |
| Min Turning Radius | mm | 4500 |
| Overall Length (without fork) | mm | 6250 |
| Overall Width | mm | 2500 |
| Overall Height | mm | 2800 |
Dimensions and Operating Range
The XCMG XC6-4517K is designed for site accessibility, featuring an overall width and travel height optimized for standard logistics and entry into warehouse environments. The vertical reach of 16,700 mm ensures the ability to handle materials across multiple stories. The forward reach capability allows for horizontal material handling across trenches or site debris that would typically block a conventional reach truck or forklift.
Supplier Support
We provide professional procurement and technical support for the XCMG XC6-4517K telehandler. Our services include the provision of detailed technical documentation and assistance with equipment configuration to meet your project standards. Relevant maintenance components and technical guidance for this model are available through our supply network to ensure long-term operational uptime for international buyers.
Frequently Asked Questions
What is the maximum lifting capacity of the XCMG XC6-4517K?
The XC6-4517K has a maximum rated lifting capacity of 4500 kg (4.5 tons) at its standard configuration.
What steering modes are available on this telehandler?
This model features three steering modes: front-wheel steering, four-wheel steering, and crab-walk steering for superior maneuverability in restricted spaces.
Can the XC6-4517K be used for high-rise construction?
Yes, with its approximately 17-meter maximum lift height, it is specifically designed for high-altitude material placement and maintenance work on multi-story building sites.
Is this model suitable for off-road use?
Yes, the machine is equipped with four-wheel drive and has high gradeability (45%), allowing it to operate on unpaved construction sites and uneven industrial yard surfaces.
What engine power does it provide?
The XC6-4517K is powered by a high-torque engine with a rated output of 75 kW, providing the necessary energy for both travel and hydraulic operations.
