Product Details:
Key Features and Applications
High-Torque Cummins Power Unit

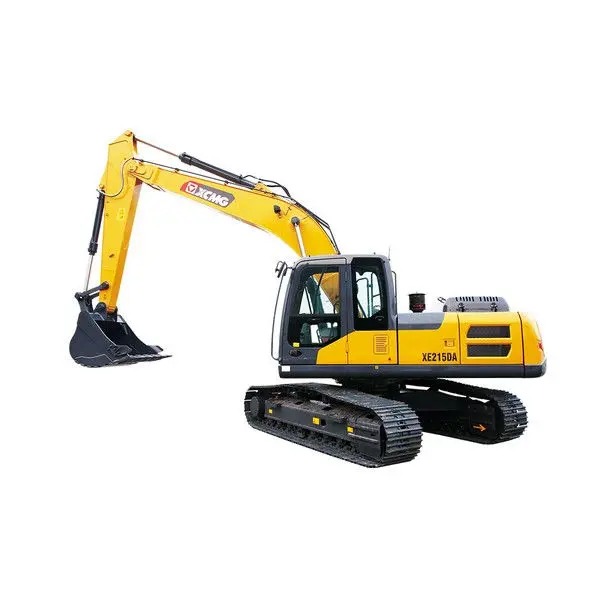

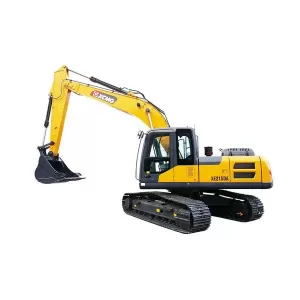

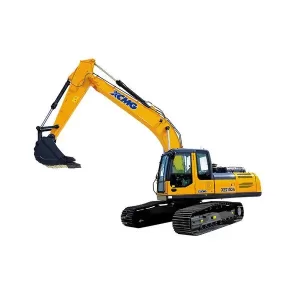

The XE215DA is powered by a 6-cylinder Cummins QSB7 turbocharged diesel engine with a 6.7-liter displacement. Featuring electronic injection and an air-to-air intercooler, the engine produces up to 740 N.m of torque at 900–1,600 rpm. This high torque reserve delivers consistent hydraulic performance, responsive operation, and lower fuel consumption under continuous load.
Optimized Hydraulic Flow Distribution
Equipped with a dual-pump variable displacement hydraulic system delivering 2 × 216 L/min, the machine features an independent sub-pump control architecture and a large-diameter main control valve. This layout minimizes pressure loss, dampens boom and arm start-stop impact, and provides coordinated compound movements during simultaneous digging, swinging, and travel maneuvers.
Reinforced Structural Build and Cylinders
The working device incorporates large-bore bucket and arm cylinders, increasing effective digging force across tough soil and rock layers. Critical stress areas on the boom, arm, and turntable are built with high-strength steel plates, paired with an enlarged 1.05 m³ heavy-duty bucket designed for abrasion resistance and material retention.
Ergonomic, Low-Noise Operator Cab
The cabin is sealed and sound-insulated to reduce interior noise levels and vibration. It features a wide field of view, an adjustable suspension seat, high-output automatic climate control, and an intuitive multi-function display panel, helping operators maintain focus and reducing fatigue during long working shifts.
Multi-Sector Jobsite Versatility
The XE215DA accommodates diverse hydraulic attachments to handle multiple construction roles:
-
Infrastructure & Civil Works: Bulk earth excavation, site leveling, and foundation digging.
-
Pipeline & Utilities: Deep trenching, drainage channel dredging, and backfilling.
-
Quarry & Mining Support: Aggregate handling, overburden removal, and truck loading.
-
Demolition & Forestry: Concrete crushing, scrap shearing, and land clearing with specialized attachments.
Technical Specifications
| Item | Unit | Parameter |
| Operating Weight | kg | 21,500 – 21,900 |
| Standard Bucket Capacity | m³ | 1.05 |
| Engine Model | – | Cummins QSB7 |
| Number of Cylinders | – | 6 |
| Engine Displacement | L | 6.7 |
| Rated Power / Speed | kW / rpm | 135 / 2,050 |
| Maximum Torque / Speed | N.m / rpm | 740 / 900–1,600 |
| Bucket Digging Force | kN | 149 |
| Arm Crowding Force | kN | 111 |
| Maximum Tractive Force | kN | 184 |
| Hydraulic Pump Rated Flow | L/min | 2 × 216 |
| Main Relief Valve Pressure | MPa | 34.3 / 37.0 |
| Travel Speed (High / Low) | km/h | 5.4 / 3.1 |
| Swing Speed | r/min | 11.8 – 13.0 |
| Gradeability | ° | ≤ 35 |
| Ground Contact Pressure | kPa | 47.2 |
| Fuel Tank Capacity | L | 400 |
Dimensions and Operating Range
| Item | Unit | Parameter |
| Maximum Digging Reach | mm | 9,940 |
| Maximum Digging Depth | mm | 6,680 |
| Maximum Digging Height | mm | 9,620 |
| Maximum Dumping Height | mm | 6,780 |
| Minimum Swing Radius | mm | 3,630 |
| Boom Length | mm | 5,680 |
| Arm Length | mm | 2,910 |
| Overall Transport Length | mm | 9,625 |
| Overall Transport Width | mm | 2,990 |
| Overall Transport Height | mm | 3,100 |
| Track Shoe Width (Standard) | mm | 600 |
| Ground Clearance | mm | 486 |
Supplier Support
We provide technical documentation and procurement support for the XCMG XE215DA crawler excavator. Our services include machine specification matching, export documentation, and international shipping coordination. To ensure continuous equipment uptime, relevant maintenance components, wear parts, and hydraulic elements for this model are accessible through our supply network.
Frequently Asked Questions
What engine is equipped on the XCMG XE215DA excavator?
The XE215DA is powered by a 6-cylinder Cummins QSB7 turbocharged diesel engine with a displacement of 6.7 liters, producing a rated power output of 135 kW at 2,050 rpm and a maximum torque of 740 N.m.
What is the maximum digging depth and reach of the XE215DA?
The machine achieves a maximum digging depth of 6,680 mm and a maximum horizontal digging reach of 9,940 mm at ground level.
How does the XE215DA hydraulic system improve fuel efficiency?
The upgraded hydraulic system integrates an independent control sub-pump system and a large-displacement main pump, precisely distributing hydraulic flow and reducing pressure loss to lower overall fuel consumption during intensive work cycles.
Can the XE215DA be fitted with auxiliary attachments?
Yes. The machine supports auxiliary hydraulic circuits for attachments such as hydraulic breakers, shears, grapples, compactors, and rippers to support diverse engineering tasks.
