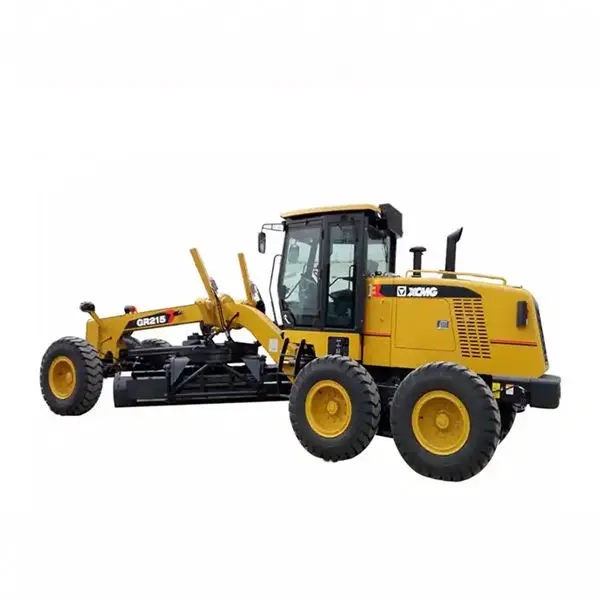

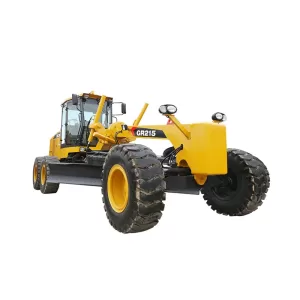

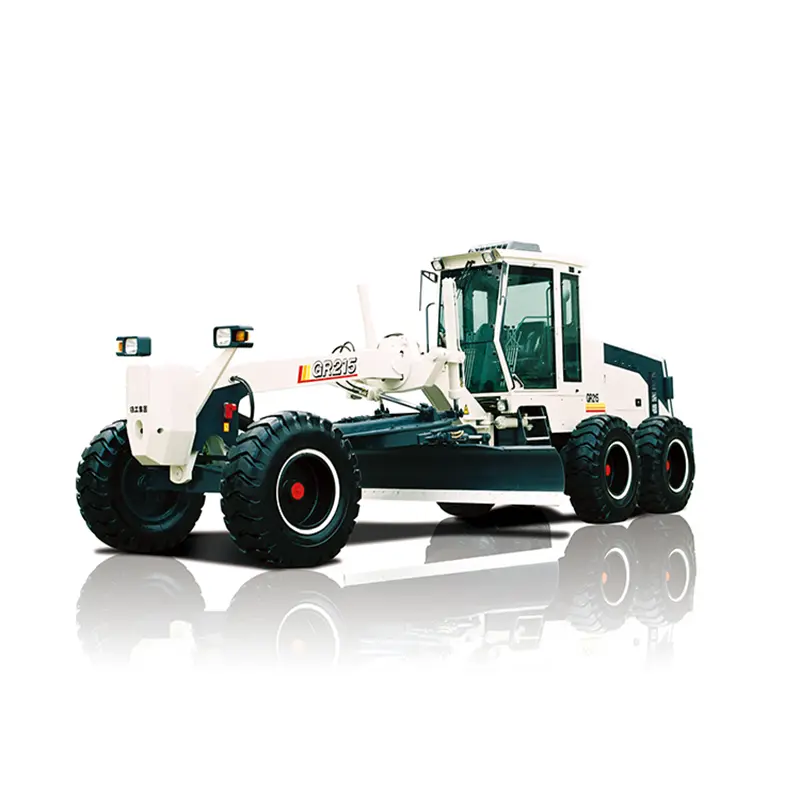

GR215 215hp road motor grader for sale
Product Details:
Product Description
Road motor grader GR215 is mainly used for ground leveling, ditching, slope scraping, bulldozing, scarification, and snow removal for large areas such as highways, airports, farmlands, etc. It is the construction machinery required for national defense, mine construction, urban and rural road construction, water conservation, agriculture enhancement, and so on.
Main Parameters
| Item | Unit | Parameter |
| Engine model | – | Cummins 6CTA8.3 |
| Rated power/speed | kW/rpm | 160/2200 |
| Forward speed | km/h | 5/8/11/19/23/38 |
| Back speed | km/h | 5/11/23 |
| Traction force f=0.75 | kN | ≥85 |
| Minimum turning radius | m | 7.3 |
| Blade length x chord height | mm | 3965*610 |
| Overall dimension | mm | 8970*2625*3420 |
| Total weight | kg | 16500 |
Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.
Product Performance
1. Adopt a new visual style.
2. Use an articulated chassis that works in tandem with front-wheel steering to provide a tight turning radius and mobility.
3. Powershift transmission with electro-hydraulic control, 6 forward, and 3 reverse gears.
4. Use international hydraulic parts for dependable performance.
5. A three-stage drive axle with a NO-SPIN self-locking differential is used in the rear axle.
6. The adjustable console, seat, joystick, and instrument are well-organized, simple to operate, and enhance driving comfort.
7. The cab is elegant and attractive, with a large field of vision and excellent sealing.

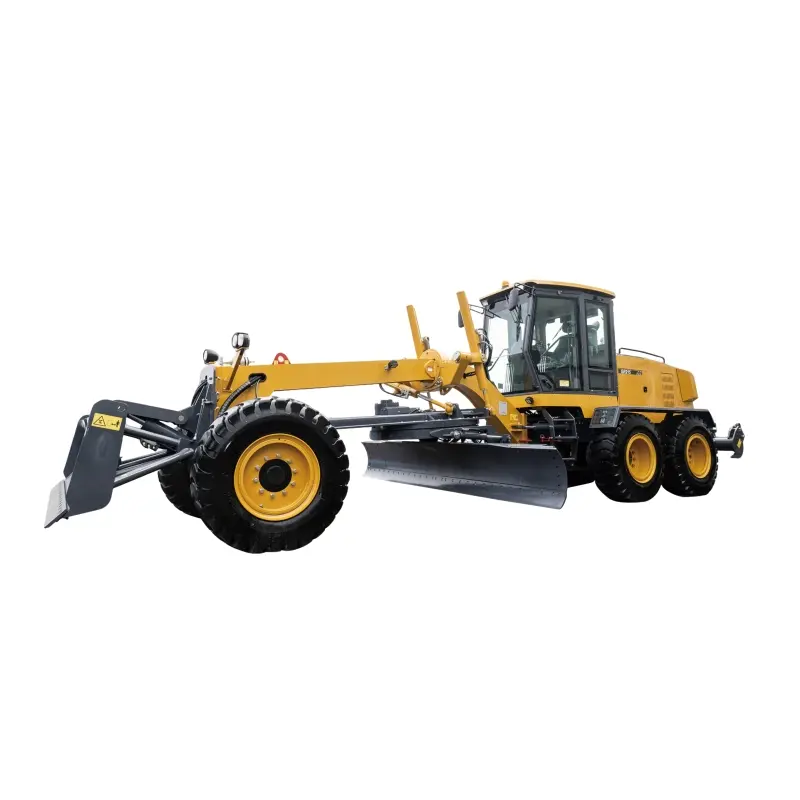

8. It is possible to install a front bulldozer, a rear ripper, a front ripper, and an automatic leveling device.
* All relevant spare parts for the GR215 motor grader are available.
