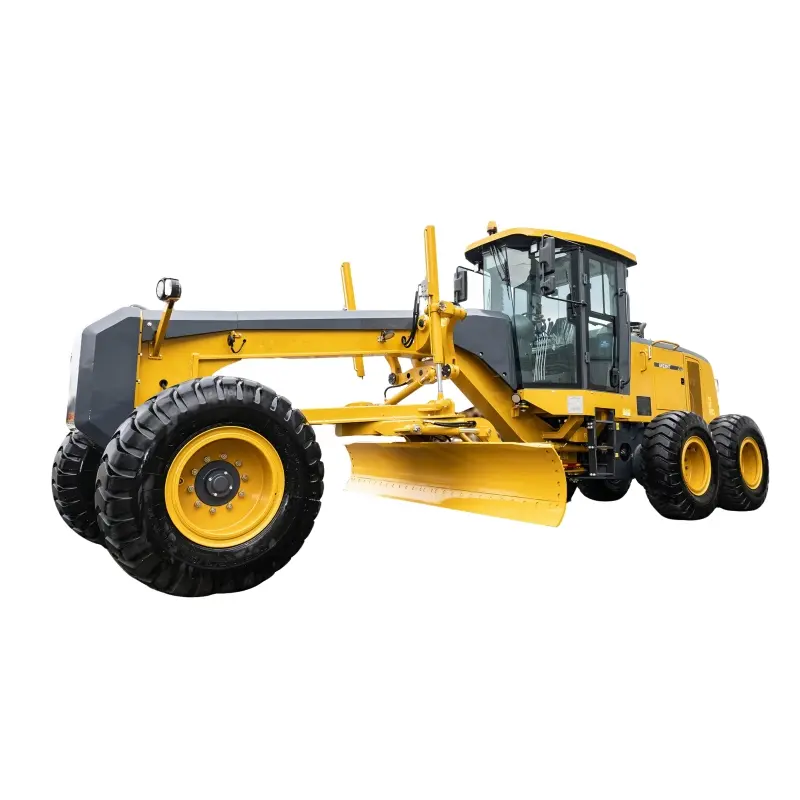

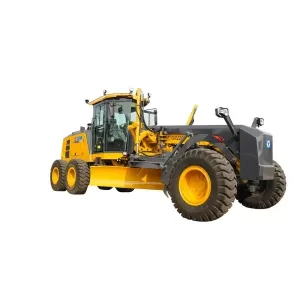

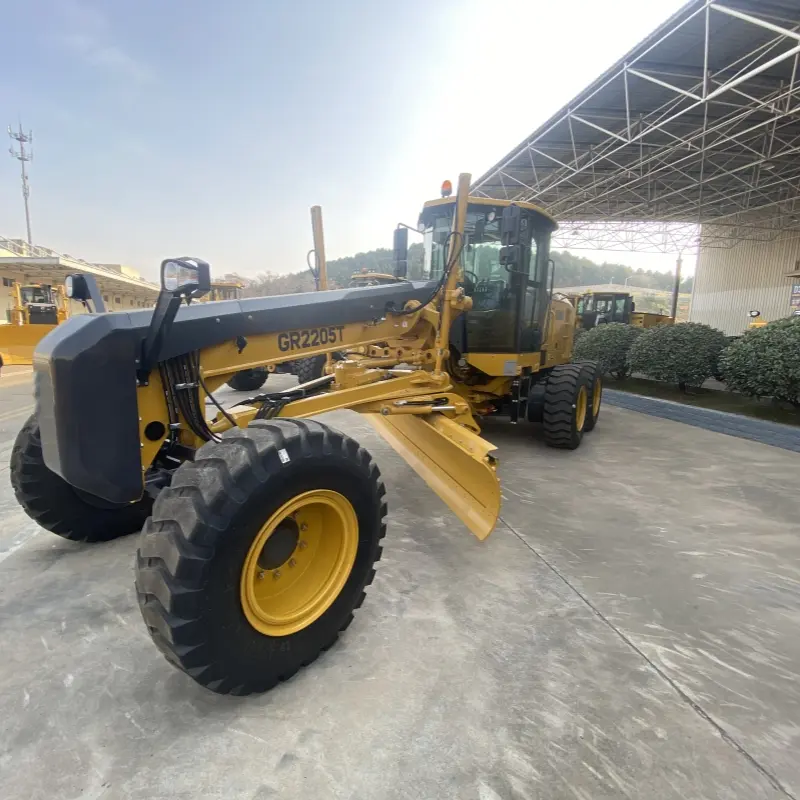

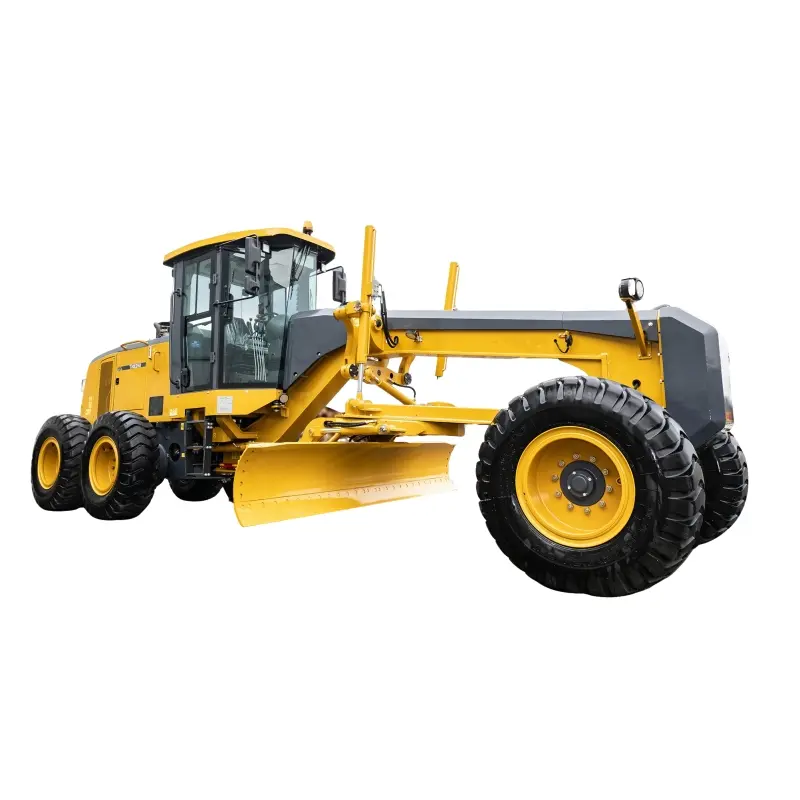

Widely used motor grader GR2205T for sale
Product Details:
Product Description
The GR2205T motor grader for sale adopts a new design platform. Front bulldozer, rear ripper, front ripper, and automatic leveling device are optional.
Main Parameters
| Item | Unit | Parameter |
| Engine model | – | Cummins QSB6.7 |
| Rated power/speed | kW/rpm | 164/2200 |
| Forward speed | km/h | 5/9/12/20/25/45 |
| Back speed | km/h | 5/12/25 |
| Minimum turning radius | m | 7.6 |
| Blade length x chord height | mm | 4270×610 |

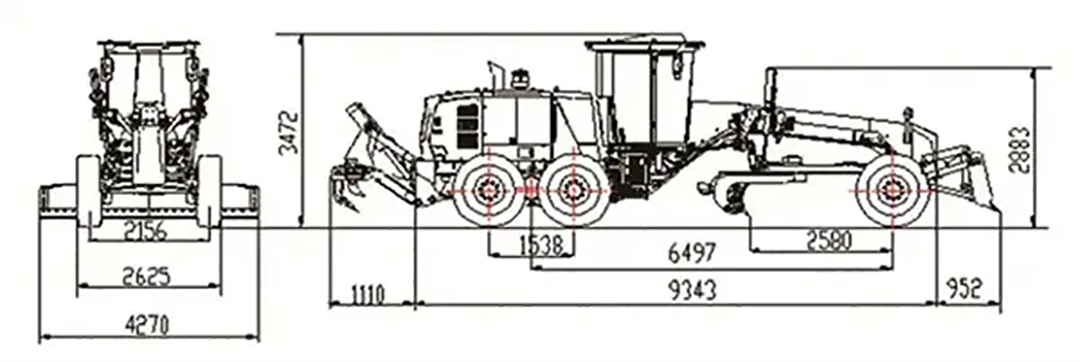

| Overall dimension | mm | 9230×2625×3432 |
| Total weight | kg | 16500 |
Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.
Product Performance
Using a three-stage electronically controlled engine with a substantial power reserve coefficient is recommended.
Load sensing technology, labor-saving operation, accurate control, and compound action capabilities are all available.
On-load slewing technology allows for a more efficient operation.
Ultra-luxury cab with plenty of interior room, a sensible arrangement, and an integrated interior and air duct design.
Small turning radius and flexible maneuverability thanks to the use of an articulated frame that works in tandem with front axle steering.
The operating table, seat, joystick, and instrument are all adjustably organized, the operating force is light, it is simple to operate, and driving comfort is improved.
* All relevant spare parts for the GR2205T motor grader are available.
* If you have any purchasing needs for second-hand equipment of this model, you can also contact us!
