Road construction GR2605 road motor grader machine for sale
The CNFORCE GR2605 is a heavy-duty road motor grader designed for surface leveling, ditching, slope trimming, earthmoving, scarification, and snow clearing. Powered by a 194 kW Cummins diesel engine with an operating weight of 19,000 kg, it provides dependable power matching and strong drawbar pull across highway construction, airfield ground preparation, open-pit mine haul road maintenance, water conservancy projects, and large-scale agricultural improvement works.
Quick Specifications
-
Operating Weight: 19,000 kg
-
Engine Model: Cummins QSL8.9
-
Rated Engine Power: 194 kW (260 HP) @ 2,200 rpm
-
Moldboard Dimensions: 4,270 mm × 610 mm
-
Traction Force: ≥ 99 kN
-
Maximum Gradeability: ≥ 25%
Product Details:
Key Features and Applications
Cummins Powertrain and Heavy-Duty Drivetrain
The GR2605 is powered by a turbocharged Cummins QSL8.9 diesel engine delivering 194 kW at 2,200 rpm. Matched with a multi-speed power shift transmission, the machine provides 6 forward speeds (up to 47 km/h) and 3 reverse speeds (up to 26 km/h), generating a traction force of ≥ 99 kN for heavy subgrade spreading, deep blade cuts, and rapid road transit.
Load-Sensitive Plunger Pump Hydraulics
The hydraulic architecture employs a variable displacement plunger pump and a load-sensitive valve system. By automatically distributing oil flow and working pressure according to the load demands of each actuator, the system enables smooth multi-cylinder composite operations, high responsiveness, and precise moldboard control during fine grading and bank slope trimming.
Circle Drive with Overload Protection
Engineered for severe earthmoving and open-pit haul road maintenance, the working device incorporates a heavy-duty slewing bearing and an overload-protected circle drive. When the moldboard strikes embedded boulders or encounters extreme resistance, the overload mechanism slips to absorb shock loads and protect hydraulic cylinders and drive gears from structural stress.
Wet Brake Axle and Travel Stability
The grader utilizes a reinforced drive axle fitted with wet service brakes, providing stable braking torque and thermal dissipation during continuous duty on sloped grades and mine haul roads. Articulated frame steering paired with front-wheel steering angles up to ±48° provides dependable directional stability and a turning radius of 7.9 m.
Broad Infrastructure and Heavy-Duty Applications
Built for high-load working conditions, the machine performs large-scale subgrade leveling, base course spreading, side ditch excavation, bank profiling, and snow removal across highway projects, airfields, mining access roads, and water conservancy earthworks.
Technical Specifications
| Parameter | Specification |
| Machine Model | GR2605 |
| Equipment Category | Heavy-Duty Road Motor Grader |
| Operating Weight (Standard) | 19,000 kg |
| Engine Model | Cummins QSL8.9 |
| Rated Engine Power | 194 kW (260 HP) |
| Rated Engine Speed | 2,200 rpm |
| Forward Travel Speeds | 6 gears (5, 8, 11, 19, 26, 47 km/h) |
| Reverse Travel Speeds | 3 gears (5, 11, 26 km/h) |
| Traction Force (f = 0.75) | ≥ 99 kN |
| Maximum Gradeability | ≥ 25% |
| Hydraulic Working System Pressure | 22 MPa |
| Transmission Box Pressure | 1.85–2.2 MPa |
| Service Brake System | Wet service brake system |
| Tire Specification | 20.5-25 |
| Tire Inflation Pressure | 350 kPa |

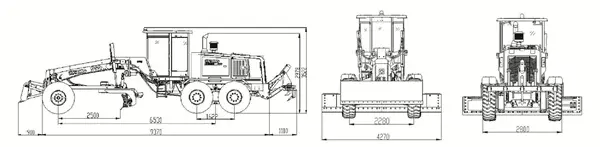

Dimensions and Operating Range
| Dimensional & Working Parameter | Technical Data |
| Overall Dimensions (Length × Width × Height) | 9,370 × 2,800 × 3,522 mm |
| Moldboard Dimensions (Length × Chord Height) | 4,270 × 610 mm |
| Maximum Blade Lift Height Above Ground | 480 mm |
| Maximum Blade Cutting Depth | 715 mm |
| Maximum Blade Tilt Angle | 90° |
| Blade Cutting Angle Range | 29°–69° |
| Circle Slew Rotation Angle | 360° |
| Minimum Turning Radius | 7.9 m |
| Front Axle Ground Clearance | 592 mm |
| Wheelbase (Front to Rear Axle) | 6,531 mm |
| Tandem Wheelbase (Middle to Rear Wheel) | 1,622 mm |
| Maximum Front Wheel Steering Angle | ±48° |
| Maximum Front Wheel Tilt Angle | ±17° |
| Maximum Front Axle Oscillation Angle | ±15° |
| Maximum Frame Articulation Angle | ±20° |
Supplier Support and Procurement Services
-
Genuine Spare Parts Supply: Supply support covers maintenance packages, moldboard cutting edges, end bits, circle drive wear components, and hydraulic replacement filters.
-
Factory-Direct Procurement: Direct commercial pricing coordination for contractors, equipment dealers, and fleet procurement projects.
-
Technical Consultation: Engineering guidance, operation documentation, and maintenance support for international equipment operators.
-
Export Logistics & Shipping: Export packing, container shipping coordination, and commercial trade documentation for overseas delivery.
Frequently Asked Questions
What engine and power output are provided on the CNFORCE GR2605?
The GR2605 is powered by a Cummins QSL8.9 diesel engine delivering a rated power output of 194 kW (260 HP) at 2,200 rpm, engineered to provide high torque across variable earthmoving loads.
What are the moldboard dimensions and cutting capacities of the GR2605?
The standard moldboard measures 4,270 mm in length and 610 mm in chord height. It provides full 360-degree rotation, a maximum blade lift height of 480 mm above ground, and a cutting depth of up to 715 mm.
How does the load-sensitive hydraulic system enhance grading accuracy?
The load-sensitive plunger pump system automatically adjusts oil delivery and pressure according to actual resistance. This allows smooth coordination of multiple hydraulic cylinders simultaneously, ensuring stable blade control during fine grading and slope trimming.
What makes the GR2605 suitable for high-load and mining road conditions?
The machine combines a 19,000 kg operating weight, 99 kN traction force, heavy-duty wet brake drive axle, and an overload-protected circle drive to handle embedded rocks, heavy roadbed mixtures, and sustained grade operations safely.
