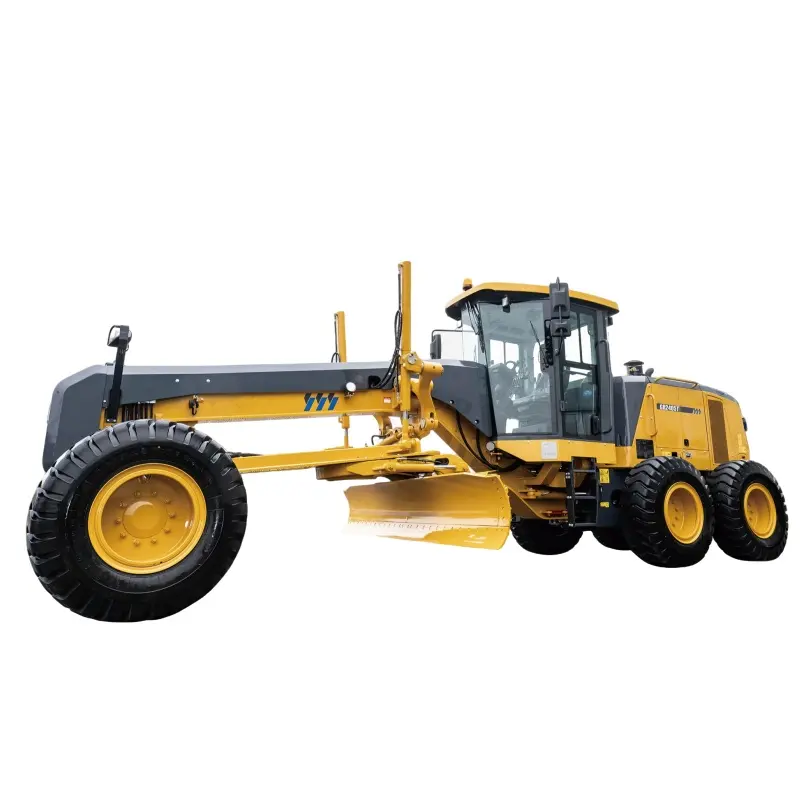

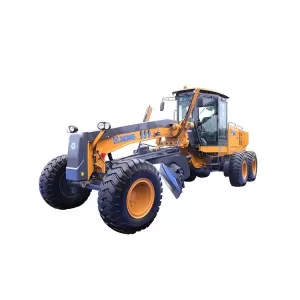

Compact motor grader GR2405T for sale
The CNFORCE GR2405T is a compact road motor grader engineered for large-scale surface leveling, ditching, slope scraping, bulldozing, soil scarification, and snow clearing. Powered by a 178 kW Cummins diesel engine with an operating weight of 17,000 kg, it integrates load-sensing hydraulics and variable power control to deliver precise blade control and high fuel efficiency across highway works, airfield construction, farmland improvement, and municipal infrastructure projects.
Quick Specifications
-
Operating Weight: 17,000 kg
-
Engine Model: Cummins QSB6.7
-
Rated Engine Power: 178 kW (approx. 240 HP) @ 2,200 rpm
-
Moldboard Dimensions: 3,965 mm × 610 mm
-
Tractive Effort: ≥ 82 kN
-
Minimum Turning Radius: 7.3 m
Product Details:
Key Features and Applications
Cummins Powertrain with Variable Power Control
Driven by a turbocharged Cummins QSB6.7 diesel engine producing 178 kW at 2,200 rpm, the GR2405T features integrated variable power control technology. This system automatically optimizes engine power output across varying load cycles, reducing fuel consumption during light-duty passes while providing high low-speed torque for heavy subgrade cuts.
Load-Sensing Hydraulic Micro-Control System
The hydraulic architecture employs a load-sensing system that distributes hydraulic pressure and flow according to working resistance. This configuration lowers control lever operating forces, enhances tactile feedback, and provides responsive micro-control during compound multi-valve operations such as slope scraping and bank trimming.
Protected Working Device and Circle Drive
Engineered for demanding earthmoving and road construction environments, the working assembly incorporates high-strength rotary support, an integral angle positioning mechanism, and a worm gearbox with overload protection. If the moldboard strikes buried boulders or rigid obstacles, the overload mechanism slips to absorb shock loads and prevent damage to hydraulic cylinders and circle drive gears.
Wet-Brake Axle and Maneuverability
The rear tandem assembly features a heavy-duty wet-type brake axle, providing reliable braking torque, thermal dissipation, and long service intervals. Combined with front-wheel steering angles up to ±48° and frame articulation of ±25°, the grader achieves a tight minimum turning radius of 7.3 m for navigating narrow roads and restricted job sites.
Broad Civil and Agricultural Applications
Configured for heavy-duty earthwork, the GR2405T handles subgrade leveling, canal ditching, slope shaping, earthmoving, scarifying, and snow clearance across national highway projects, airfields, irrigation works, and agricultural land development.
Technical Specifications
| Parameter | Specification |
| Machine Model | GR2405T |
| Equipment Category | Compact Road Motor Grader |
| Operating Weight (Standard) | 17,000 kg |
| Engine Model | Cummins QSB6.7 |
| Rated Engine Power | 178 kW (approx. 240 HP) |
| Rated Engine Speed | 2,200 rpm |
| Forward Travel Speeds | 6 gears (5, 8, 11, 19, 23, 38 km/h) |
| Reverse Travel Speeds | 3 gears (5, 11, 23 km/h) |
| Tractive Effort (f = 0.75) | ≥ 82 kN |
| Maximum Gradeability | 25% |
| Hydraulic Working System Pressure | 22 MPa |
| Transmission Operating Pressure | 1.85–2.2 MPa |
| Brake System Type | Wet-type brake axle |
| Tire Specification | 17.5-25 |
| Tire Inflation Pressure | 260 kPa |
Dimensions and Operating Range
| Dimensional & Working Parameter | Technical Data |
| Overall Dimensions (Length × Width × Height) | 9,300 × 2,625 × 3,420 mm |
| Moldboard Dimensions (Length × Chord Height) | 3,965 × 610 mm |
| Maximum Blade Lift Height | 480 mm |
| Maximum Blade Cutting Depth | 715 mm |
| Maximum Blade Lateral Tilt Angle | 90° |
| Blade Cutting Angle Adjustment Range | 29°–69° |
| Circle Slew Rotation Angle | 360° |
| Minimum Turning Radius | 7.3 m |
| Ground Clearance (Front Axle) | 586 mm |
| Distance Between Front and Rear Axles | 6,447 mm |
| Distance Between Middle and Rear Wheels | 1,538 mm |
| Wheel Tread | 2,156 mm |
| Maximum Front Wheel Steering Angle | ±48° |
| Maximum Front Wheel Lean Angle | ±17° |
| Maximum Front Axle Oscillation Angle | ±15° |
| Maximum Frame Articulation Angle | ±25° |
Supplier Support and Procurement Services
-
Genuine Spare Parts Supply: Supply support covers replacement components, cutting edges, end bits, filters, and hydraulic maintenance parts for the GR2405T.
-
Commercial Export Coordination: Direct factory-aligned quotations, commercial invoicing, and equipment specification consulting for international buyers.
-
Technical Documentation: Operation manuals, technical data sheets, and maintenance documentation to assist overseas equipment operators.
-
International Shipping Logistics: Export packaging, container shipping coordination, and freight management for port-to-port delivery.
Frequently Asked Questions
What engine and power output are featured on the CNFORCE GR2405T?
The GR2405T is powered by a Cummins QSB6.7 turbocharged diesel engine delivering 178 kW (approx. 240 HP) at 2,200 rpm, paired with variable power control technology for optimized fuel efficiency.
How does the load-sensing hydraulic system benefit grading operations?
The load-sensing hydraulic system adjusts fluid pressure and flow according to real-time resistance. This lowers operator control effort, enhances lever sensitivity, and enables precise multi-function blade maneuvering during finishing work.
What are the blade reach and cutting specifications of the GR2405T?
The standard moldboard measures 3,965 mm in length and 610 mm in chord height. It provides 360-degree circle rotation, a maximum blade lift height of 480 mm above ground, and a cutting depth of up to 715 mm.
What mechanism protects the moldboard circle drive from impact?
The working device is equipped with a worm gearbox featuring an overload protection clutch. If the blade strikes an immovable underground object, the mechanism slips automatically to protect the circle drive and hydraulic cylinders from structural damage.
