Product Details:
Key Features and Applications
Electronically Controlled Cummins Powertrain
The grader is powered by an electronically controlled Cummins QSB6.7 diesel engine delivering 164 kW at 2,200 rpm. Featuring a substantial power reserve coefficient, the power plant delivers steady torque under demanding earthmoving loads and works with a multi-speed transmission to achieve forward travel speeds up to 45 km/h for rapid jobsite transfers.
Load-Sensing Hydraulics and On-Load Slewing
The hydraulic system incorporates load-sensing technology that dynamically allocates oil pressure and flow to match real-time working resistance. This design lowers control lever operating effort, provides responsive tactile feedback, and allows smooth compound operations. Supported by on-load slewing technology, operators can rotate the moldboard circle under active working resistance to streamline grading passes.
Articulated Chassis and High Maneuverability
By coordinating front-wheel steering with an articulated frame structure, the GR2205T achieves a compact minimum turning radius of 7.6 m. This steering configuration enables operators to follow sharp road curves, turn around efficiently on narrow subgrades, and navigate confined municipal and rural road corridors.
Ergonomic Enclosed Operator Cab
The spacious operator cab features an integrated interior layout with built-in air ducts for uniform ventilation and climate control. The workstation incorporates an adjustable steering console, suspension seat, low-effort joysticks, and clearly visible instruments to reduce operator fatigue and maintain control precision over long work shifts.
Modular Tooling for Earthmoving Duty
Built to adapt to varied site requirements, the machine supports multiple optional attachments, including a front dozer blade, a front ripper, a rear multi-shank ripper, and an automatic leveling system for high-precision subgrade and base course leveling.
Technical Specifications
| Parameter | Specification |
| Machine Model | GR2205T |
| Equipment Category | Road Motor Grader |
| Operating Weight (Standard) | 16,500 kg |
| Engine Model | Cummins QSB6.7 |
| Rated Engine Power | 164 kW |
| Rated Engine Speed | 2,200 rpm |
| Forward Travel Speeds | 6 gears (5, 9, 12, 20, 25, 45 km/h) |
| Reverse Travel Speeds | 3 gears (5, 12, 25 km/h) |
| Hydraulic System Type | Load-sensing hydraulic system |
| Moldboard Dimensions (L × H) | 4,270 × 610 mm |
| Minimum Turning Radius | 7.6 m |
| Steering Configuration | Articulated frame + front-wheel steering |

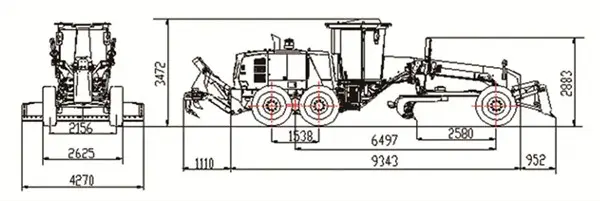

Dimensions and Operating Range
| Dimensional & Working Parameter | Technical Data |
| Overall Dimensions (Length × Width × Height) | 9,230 × 2,625 × 3,432 mm |
| Moldboard Dimensions (Length × Chord Height) | 4,270 × 610 mm |
| Minimum Turning Radius | 7.6 m |
| Maximum Forward Speed | 45 km/h |
| Maximum Reverse Speed | 25 km/h |
| Moldboard Slewing Capability | On-load slewing operation |
| Optional Working Attachments | Front dozer, front ripper, rear ripper, auto-leveling device |
Supplier Support and Procurement Services
-
Genuine Spare Parts Supply: Complete supply support for replacement components, moldboard cutting edges, ripper teeth, hydraulic filters, and routine maintenance parts for the GR2205T.
-
Commercial Export Coordination: Direct factory-aligned quotations, technical parameter verification, and procurement consultation for overseas contractors and equipment dealers.
-
Technical Documentation: Operation manuals, parts books, and remote technical consultation to support machine servicing and maintenance.
-
International Shipping Logistics: Export packing, container loading coordination, and freight management for port-to-port delivery.
Frequently Asked Questions
What engine powers the CNFORCE GR2205T motor grader?
The GR2205T is equipped with a Cummins QSB6.7 electronically controlled diesel engine rated at 164 kW at 2,200 rpm, engineered with a high power reserve coefficient for consistent earthmoving performance.
What are the moldboard dimensions of the GR2205T?
The standard moldboard measures 4,270 mm in length and 610 mm in chord height, providing wide blade coverage for large-area surface leveling and bank profiling.
What optional attachments can be installed on this model?
The machine can be fitted with several optional implements, including a front bulldozer blade, a front ripper, a rear multi-shank ripper, and an automatic leveling system.
How does the load-sensing hydraulic system benefit grading operations?
The load-sensing hydraulic system delivers oil flow and pressure based strictly on actuator resistance. This reduces operating lever force, improves fine-control sensitivity, and supports simultaneous compound blade movements with reduced energy losses.
