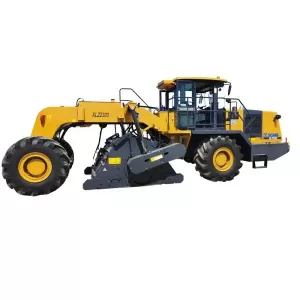

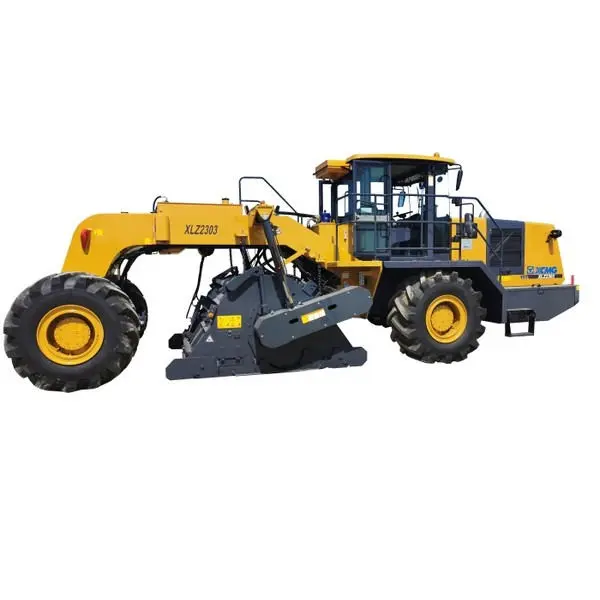

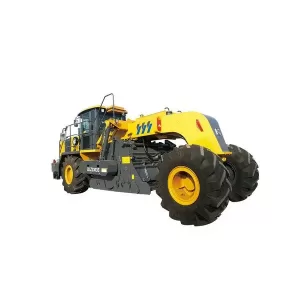

China cold recycler XLZ2303S for sale
China cold recycler XLZ2303S for sale
China XLZ2303S cold recycler is mainly used for upgrading and reconstruction of old asphalt roads and on-site stable soil mixing operations.
Model: XLZ2303S
Engine Model: WP13G530E310
Dimensions: 9232*3262*3450mm
Rated power/speed: 390/2100kW/rpm
Product Details:
Product Description
The XLZ2103S cold recycler is a multi-functional road maintenance machine that is mostly used for upgrading old asphalt county and township roads, as well as on-site stable soil mixing. The XLZ2103S Pavement Cold Recycler is designed to improve the mechanical and physical properties of natural soil by combining it with filler, cement, and lime. It’s also appropriate for in-situ stabilized soil mixing operations for highways, city roads, squares, ports, parking lots, and other projects’ base and roadbed.
*We also sell second-hand machinery. If you are in need, please contact us for consultation!
Main Parameters
| Item | Unit | Parameter |
| Engine Model | – | WP13G530E310 |
| Rated power | kw | 390 |
| Walking speed | km/h | 0-3.2/4 |
| Traveling speed | km/h | 0-22.8/29 |
| Theoretical gradeability | % | ≥20 |
| Working weight | kg | 26500/22500 |
| Maximum Milling width | mm | 2100/2300 |
| Overall dimensions | mm | 9232*3262*3450 |
Remarks: This product is continuously improved with the progress of technology. The difference between the parameters and structural characteristics listed above is subject to the actual product.
Product Performance
● The milling width of this machine is 2300mm, 2100mm rotor is optional, the maximum milling depth is 400mm, and the tool spacing is 18mm;
● The traveling system has two speed-adjusting gears, high and low. The front/rear axle is a steering drive axle (rear wheel steering axle can be optional), four-wheel steering, and the installed low-pressure wide-base large-pattern tires run smoothly and have strong adhesion;
● The engine has advanced functions such as online display, fault diagnosis and fault alarm. At the same time, it can read various data more intuitively through the equipped display;
● Braking system: air brake mode, realize the function of service brake and parking brake of the machine;
● The cab adopts a wide-body structure, is equipped with dual-purpose air conditioners, and is equipped with fans, radios and other devices for comfortable operation;
● The instrument panel is equipped with a color liquid crystal display, which can display the main working parameters of the whole machine online in real time, which is convenient for the operator to observe the working condition of the machine;
● The lighting system is used for night work, which can make the rear of the machine, the cab, the working edge and the front of the machine have good lighting.
* All relevant spare parts for XLZ2303S cold recycler are available.
