Double drum road roller XD83 for sale
The XCMG XD83 is a compact double drum road roller engineered for efficient compaction performance in asphalt paving, municipal road maintenance, and small-to-medium construction projects. Designed to deliver smooth surface finishes, this compactor is ideal for urban roads, parking lots, and patchwork applications. It provides contractors and equipment fleets with a dependable and mobile compaction solution optimized for precise rolling operations.
Quick Specifications
-
Operating Weight: 3,000 kg
-
Engine Rated Power: 24.5 kW / 2400 rpm
-
Vibration Frequency: 50 / 60 Hz
-
Centrifugal Force: 30 / 20 kN
-
Drum Width: 1,200 mm
Product Details:
Key Features and Applications
Dual-Frequency Vibration System
Equipped with a dual-frequency and dual-amplitude vibration system, the XD83 allows operators to adjust compaction forces depending on the asphalt layer thickness and material type, ensuring optimal density and smoothness.
Optimized Hydraulic Transmission
The machine utilizes an advanced hydraulic drive system that provides smooth speed regulation, seamless directional changes, and precise control during start and stop maneuvers to protect fresh asphalt surfaces from scuffing.
Compact Maneuverability
With an operating weight of 3,000 kg and a drum width of 1,200 mm, the compact design allows for easy navigation in restricted spaces, narrow urban streets, and confined paving zones.
Ergonomic Operator Workspace
The operator station features a comfortable layout with intuitive controls, providing high visibility to both drums and the surrounding work area to enhance safety and efficiency on the job site.
Technical Specifications
| Item | Unit | Parameter |
| Operating weight | kg | 3,000 |
| Engine Rated Power / Speed | kW / rpm | 24.5 / 2400 |
| Vibration frequency (High / Low) | Hz | 50 / 60 |
| Centrifugal force (High / Low) | kN | 30 / 20 |
| Drum width | mm | 1,200 |
| Drum diameter | mm | 700 |
| Max. travel speed | km/h | 10 |
| Gradeability | % | 30 |

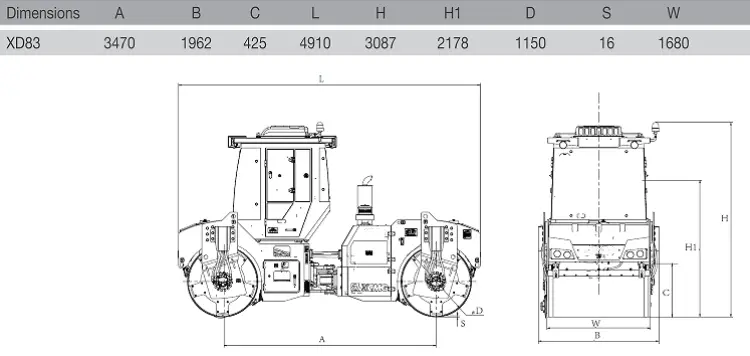

Dimensions and Operating Range
The XCMG XD83 features an optimized compact footprint with a drum width of 1,200 mm and a drum diameter of 700 mm. Its balanced dimensions and tight turning capability enable it to operate smoothly along curbs, walls, and narrow paving joints while maintaining consistent compaction coverage.
Supplier Support / After-sales Support
We provide technical documentation, configuration consulting, and export procurement support for the XCMG XD83 double drum road roller. Our team assists international buyers with equipment matching and international shipping coordination. To maintain continuous operational uptime, relevant maintenance components and replacement parts for this model are accessible through our supply network.
Frequently Asked Questions
What is the operating weight of the XCMG XD83?
The operating weight of the XCMG XD83 double drum road roller is 3,000 kg.
What is the drum width of this compactor?
The drum width is 1,200 mm, providing a compact compaction path suited for smaller-scale paving and repair tasks.
What engine powers the XD83 road roller?
The XD83 is equipped with an engine delivering a rated power of 24.5 kW at 2400 rpm.
Is the XD83 suitable for asphalt compaction?
Yes, it is designed specifically for asphalt pavement compaction in municipal road maintenance, parking lots, and urban construction projects using adjustable vibration parameters.
