Dump Trailer

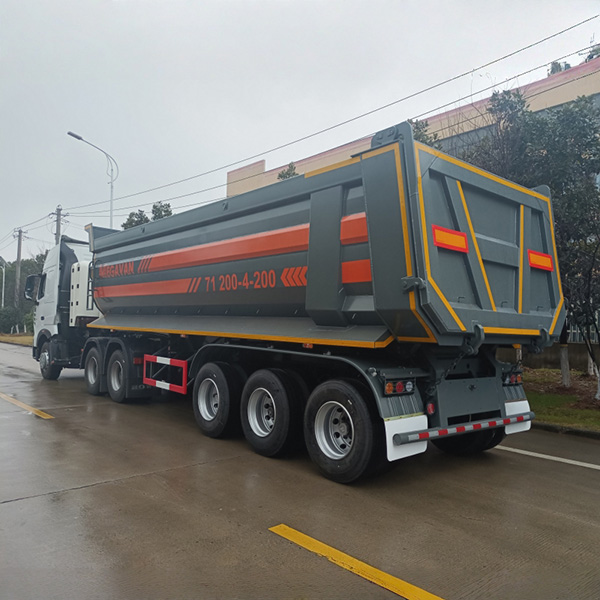

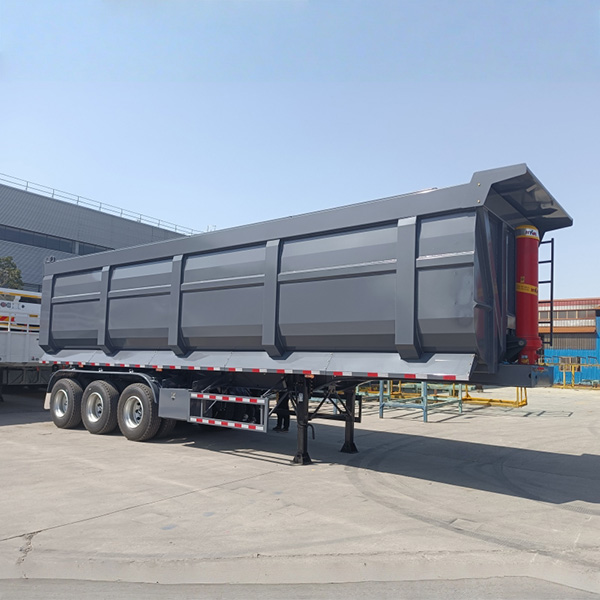

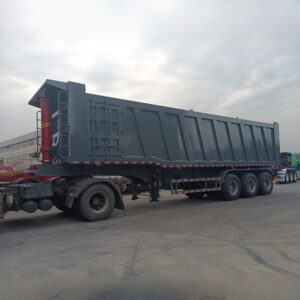

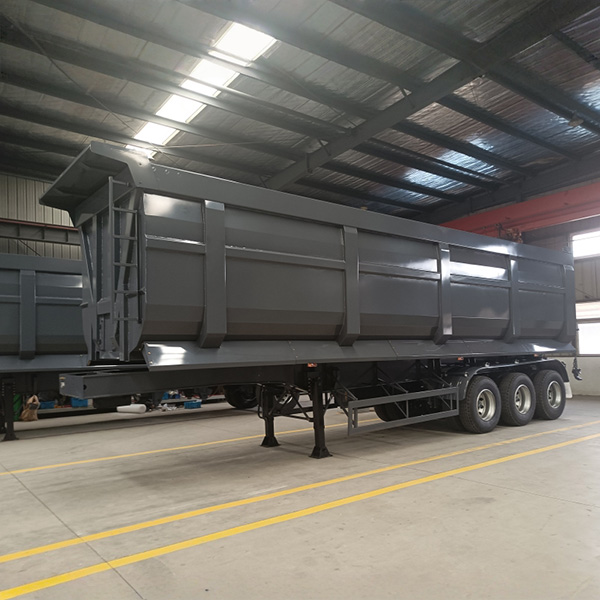

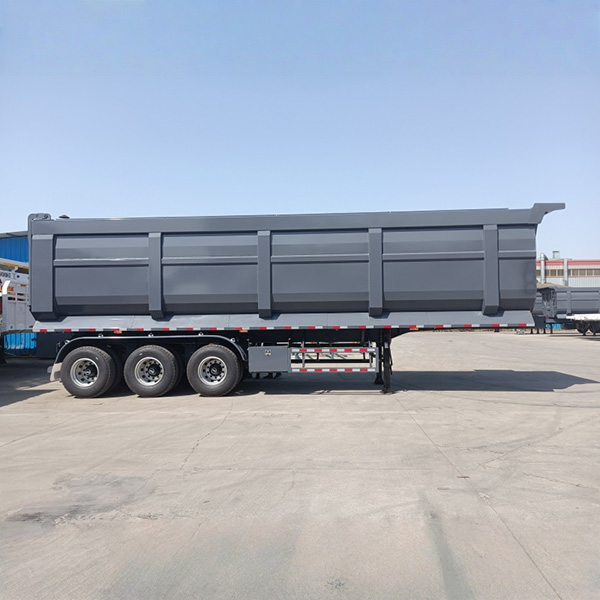

The CNFORCE Heavy-Duty Dump Semi Trailer is engineered for high-volume bulk material transport across mining, quarry, and infrastructure construction sites[1][2]. Built with high-tensile T700L steel main beams and wear-resistant NM450 cargo bodies, this tipper trailer handles aggressive materials such as sand, gravel, crushed stone, and mining ores[3][4]. Equipped with heavy-duty FUWA axles and a reliable HYVA hydraulic lifting system, it delivers rapid tipping cycles, structural stability, and high payload efficiency[3].
Quick Specifications
Product Details:
Key Features and Applications
Wear-Resistant Cargo Body Construction
The dump body is fabricated from high-strength NM450 wear-resistant steel, utilizing a 6 mm bottom plate and 3 mm side walls[3]. This design provides high impact and abrasion resistance, preventing floor deformation and premature wear when hauling sharp blasted rock, mineral ores, and coarse gravel[3][4].
High-Tensile Steel Chassis Structure
The main chassis beams are fabricated from T700L high-strength steel using automated submerged arc welding, reinforced by 18 mm channel steel side beams[3]. This rigid framework resists twisting, cracking, and bending moments under heavy payloads when navigating uneven haul roads and unpaved quarry terrains[3][5].
Reliable HYVA Hydraulic Tipping System
The tipping mechanism incorporates a heavy-duty, multi-stage telescopic hydraulic cylinder from HYVA[3]. The front-end lifting geometry provides stable lifting power, smooth hydraulic oil return, and reliable tipping balance during full-capacity discharge cycles[3].
Multi-Axle Suspension Configuration
Equipped with four 13-ton FUWA axles, the chassis integrates an air suspension with an axle-lifting system on the first axle and heavy-duty mechanical leaf spring suspensions on the rear three axles[3]. This setup balances axle load distribution when loaded and reduces tire friction and fuel consumption when running empty[3].
Primary Industry Applications
-
Mining & Quarrying: Transporting coal, iron ore, copper ore, and blasted quarry rock[4][6].
-
Infrastructure Construction: Bulk transit of sand, gravel, subgrade soil, and crushed stone[4][7].
-
Civil Earthworks: Site leveling, excavation backfill, and building waste removal[7].
Technical Specifications
| Item | Unit | Parameter |
| Model | – | Dump Semi Trailer[3] |
| Loading Capacity | t | 70 (40 m³)[3] |
| Curb Weight | kg | 12,500[3] |
| Outside Dimensions (L×W×H) | mm | 11,000 × 2,500 × 3,850[3] |
| Inside Cargo Dimensions (L×W×H) | mm | 10,000 × 2,350 × 1,700[3] |
| Dump Body Material | – | NM450 (Floor: 6 mm, Side: 3 mm)[3] |
| Hydraulic Cylinder | – | Complete HYVA Hydraulic Lifting System[3] |
| Main Beam | – | Submerged Arc Welded T700L Steel[3] |
| Side Beam | – | 18 mm Channel Steel[3] |
| Axles | – | FUWA Brand, 13 Tons × 4 pcs[3] |
| Suspension System | – | 1st Axle Air Lift; Rear 3 Axles Mechanical Leaf Spring[3] |
| Leaf Springs | – | 90 mm × 13 mm × 10 Layers[3] |
| Kingpin | – | JOST 2.0-inch / 3.5-inch Interchangeable[3] |
| Landing Gear | – | JOST 28 Tons[3] |
| Tires | – | 13R22.5 or 315/80R22.5[3] |
| Brake Chamber | – | T30/30 + T30 with 45L Air Tank, WABCO Relay Valve[3][5] |
| Electrical System | V | 24[3] |
| Tool Box | mm | 1,000 × 500 × 500[3] |
Dimensions and Operating Range
The dump semi trailer features external dimensions of 11,000 mm in length, 2,500 mm in width, and 3,850 mm in height[3]. The internal cargo bed measures 10,000 mm × 2,350 mm × 1,700 mm, delivering an effective loading volume of 40 cubic meters[3]. The front-lift hydraulic configuration allows a steep dumping angle to ensure clean, residue-free discharge of sticky clay, sand, and aggregate materials[3][4].
Supplier Support
We provide technical documentation, configuration consulting, and export procurement support for CNFORCE dump semi trailers[1][8]. Our engineering team assists with fifth-wheel height matching and kingpin compatibility for seamless pairing with your prime movers[9]. For international transport, trailers are shipped via RORO or bulk cargo vessels, with comprehensive surface treatment including sandblasting, protective paint coating, and maritime wax spraying to prevent saltwater corrosion[2][10]. Replacement components and maintenance parts are supported through our export supply chain[1].
Frequently Asked Questions
What is the payload capacity and body volume of this dump trailer?
The trailer is rated for a 70-ton payload with an internal cargo volume of 40 cubic meters, making it suitable for high-density mining and construction bulk transport[3].
What hydraulic lifting cylinder is used on this trailer?
This model is equipped with a complete front-mounted HYVA hydraulic telescopic cylinder system, providing stable lifting power and controlled tipping speeds[3].
What materials are used to construct the chassis and cargo box?
The cargo box is constructed from NM450 wear-resistant steel (6 mm floor and 3 mm side walls), while the main chassis beams are built from submerged arc welded T700L high-tensile steel[3].
Can the kingpin and landing gear match standard tractor trucks?
Yes, the trailer is equipped with standard JOST 28-ton two-speed landing gear and interchangeable JOST 2.0-inch (50 mm) or 3.5-inch (90 mm) kingpins compatible with standard tractor truck fifth wheels[3][9].
