XCMG GR5505T Motor Grader: High-Performance Road Construction Machinery for Global Projects

Introduction

According to industry reports, the global road construction machinery market is currently in a phase of steady growth. In 2022, the market size reached $35.5 billion and is projected to climb to $55.3 billion by 2030, representing a Compound Annual Growth Rate (CAGR) of 5.4%. (Source: https://www.grandviewresearch.com/industry-analysis/motor-grader-market-report) This trend reflects the continuous expansion of global infrastructure demand, thereby providing a stable environment for the development of the construction machinery industry. For contractors and project managers who supervise the development of large highway, mining and industrial areas, the challenge is to find a grader that can provide consistent high-precision grading under heavy and continuous workloads. Meeting this need head-on, the XCMG GR5505T motor grader emerges as a premium, high-performance solution engineered to elevate productivity and reliability on the world’s most demanding job sites.

What Is a Motor Grader?

A motor grader, also known as a road grader, is a heavy-duty construction machine equipped with a long blade used to create a flat surface during grading. Motor graders are usually used for road construction and maintenance, which is very important for achieving the required slope and height, ensuring proper drainage and a smooth driving experience. These machines are widely used and can handle various tasks, such as snow removal, soil preparation and trenching, making them indispensable tools in the construction industry.

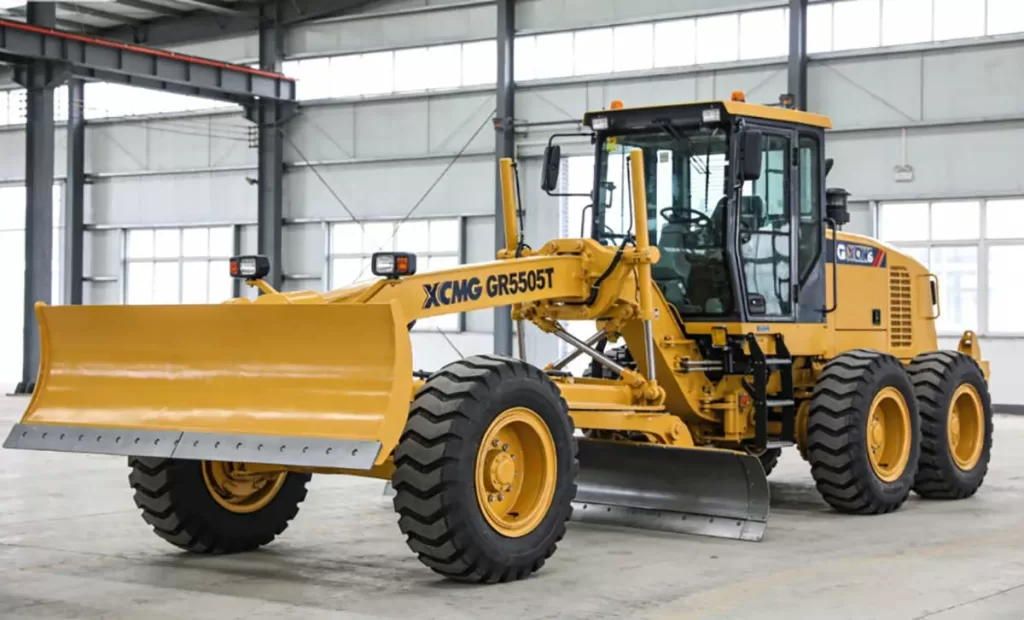

XCMG GR5505T Motor Grader: A Game-Changer in Road Construction

The GR5505T distinguishes itself through a suite of advanced features that ensure superior performance, durability, and operator comfort.

1. Strong Engine Performance

At its core, the motor grader is powered by a high-torque engine, which is specially designed for continuous heavy-duty work. This powerful power transmission system can ensure sufficient traction and consistent power output to move a lot of material, climb hills and maintaining productivity throughout long shifts, making it a great driving force in the field of road construction machinery.

2. Stable and Precise Hydraulic System

The machine is integrated with complex load sensing hydraulic system. This provides incredible stability and response control over the blade, enabling the operators to achieve a higher degree of classification accuracy with less effort. This precision is crucial for meeting tight engineering tolerances on modern infrastructure projects.

3. Durable Blade and Frame Structure

GR5505T is specially designed to prolong the service life, and adopts reinforced frame and a high-strength and wear-resistant blade assembly. This sturdy structure enables it to withstand the continuous pressure and wear materials encountered on harsh workplaces, from rock mining areas to busy construction areas, ensuring a longer service life and reducing downtime.

4. Comfortable and Ergonomic Operator Cab

Productivity starts with the operator. The cab of GR5505T has been designed with ergonomics and wide view. Intuitive controls devices, a comfortable seat and an environment that minimizes noise and vibration can reduce the fatigue of operators, thus improving the safety and efficiency of long-term work.

Product Specifications

Major Application Scenarios

The versatility and robustness of the XCMG GR5505T make it suitable for a wide range of applications in the construction industry. Here are some of the main scenarios where this machine excels.

1. Construction of Mine Transportation Road

In mining operations, the construction and maintenance of transportation roads are very important to ensure effective material transportation and safety. The XCMG GR5505T’s powerful engine and precise blade control make it ideal for leveling and shaping mine transport roads, even in challenging terrains. Its ability to handle heavy loads and pass through steep slopes ensures that roads are built according to the highest standards, reduces vehicle wear and improves overall operational efficiency.

2. Preparation and Leveling of Site

Before any construction project starts, the site must be properly prepared and leveled. The XCMG GR5505T’s versatility and precision make it an excellent choice for this task. Whether preparing a foundation for a building, a parking lot or a sports ground, this machine can quickly and accurately level the surface, ensuring proper drainage and a smooth surface. Its compact size and operability also make it suitable for projects with limited space, in which large machines may be difficult to operate effectively.

3. Snow Removal and Ice Control

In areas prone to heavy snow, keeping roads smooth and safe is the primary task. The XCMG motor grader can be equipped with specialized snow removal attachments, such as snow plows and blowers, to efficiently clear snow from roads, parking lots, and other surfaces. Its powerful engine and precise control system ensure the rapid and effective removal of snow, reducing the risk of accidents, and ensuring smooth traffic. In addition, the machine can also be used to sprinkle salt or sand to control icing, further improving the safety in winter.

4. Ditching and Digging

Creating trenches and ditches is another common task in building and infrastructure projects. The shovel blade of XCMG GR5505T can be adjusted to form ditches with various widths and depths, making it suitable for laying pipelines, cables and other public facilities. Its precise control system can ensure that ditches are dug according to the required precise specifications, reducing the need for manual adjustments, and improve the overall efficiency.

Core Component Technology

The outstanding performance of XCMG GR5505T is attributed to its advanced core component technology. Here are some key technologies that make this machine stand out.

1. Mine Ultra-High Pressure Intelligent Engine System

The XCMG GR5505T is equipped with a fifth-generation high-pressure common rail fuel injection system, delivering an injection pressure of 280 MPa. The electronic control module of ECM integrates an AI mine condition identification algorithm, which can monitor the changes of rock hardness, slope and load in real time, thus adjusting power output accordingly. This ensures the best performance and fuel efficiency in various operating conditions. The engine is also equipped with a three-stage reversible temperature control independent cooling system, and the fan speed can be intelligently adjusted between 1000-2800 r/min according to the working conditions. This improves the cooling efficiency by 50% in extreme environment, making the engine suitable for three shifts and 24 hours continuous operation, and meets the high-intensity construction requirements of super-large mines.

2. Intelligent Heavy-Duty Load-Sensing Hydraulic System

The hydraulic system of the XCMG GR5505T is a marvel of engineering, featuring two imported variable displacement piston pumps with a total flow rate of 2 × 320 l/min. The system incorporates XCMG’s proprietary “four-pump convergence+blade automatic obstacle crossing+attitude intelligent compensation+load adaptation” technology, which recovers up to 45% of the energy during boom retraction, arm descent, and swing braking. The system integrates a high-precision position/angle sensors (accuracy ± 0.08), the operating force of the electronic control double handles is less than 5 n, and the coordination of compound action is improved by 40%, thus realizing micron-level accurate leveling. The dual-worm gear swing combination drive technology significantly enhances swing stability, ensuring smooth and precise operation.

3. Super-intensified Working Device and Drive Axle for Mine

The working device of the XCMG GR5505T is designed for durability and performance in the most demanding conditions. The blade is welded from NM 600 wear-resistant steel, and has a Y-shaped frame reinforcement structure, thus enhancing its impact and wear resistance. The return bearing is made of high-strength nodular cast iron (tensile strength ≥ 600 MPa) and designed with a long-life arc-shaped hot tooth ring. The overload protection worm gearbox can withstand a maximum torque of ≥ 8000 n · m, and the blade can rotate continuously 360°, adapting to multi-angle trimming operations in mines. The four-bar swing frame structure further enhances impact resistance, and the blade is coated with tungsten carbide to increase the wear resistance (by 70%).

4. The Y-Shaped Frame Structure Increases Overall Rigidity by 35%

The drive axle is a mine-specific reinforced wet brake model, featuring an integral cast steel housing (bearing capacity 75 t). The brake pads are made of ceramic-based composite material, which has the function of automatic braking gap compensation, and its service life is ≥ 12000 hours. All-wheel drive design, with an anti-slip differential, improves traction by 60% on muddy mine roads. The drive axle gears are carburized and quenched, with a surface hardness of HRC 65, and a double-stage reduction structure that increases torque amplification by 25%.

Certification Standards

The XCMG GR5505T motor grader adheres to the highest international and industry standards, ensuring its reliability, safety, and environmental compliance. The following is a list of its certifications.

• International Safety Certifications: ISO 3471:2020 (Earth-Moving Machinery – Roll-Over Protective Structures (ROPS)), ISO 3449:2018 (Earth-Moving Machinery – Falling-Object Protective Structures (FOPS).
• Emission Certifications: US TIER 3 Emission Standard (Certificate No. EPA-2025-HEAVY-3129), China Non-Road National III Emission Standard (Certificate No. CNCERT-2025-NR 3-5876), EU Stage ⅢB Emission Standard (Certificate No. EU-EMC-2025-4123).
• Global High-end Market Certifications: CE certification (directive: 2006/42/EC mechanical directive +2014/30/EU electromagnetic compatibility directive, certificateNo. CE-2025-ME-10287), Australian AS 4024.3501: 2020 mine safety certification, and Rio Tinto mine site access certification (certificateNo. Rio-2025-)
• Certification of Hydraulic System: It conforms to ISO 4413:2020 (Hydraulic Fluid Power-General Rules and Safety Requirements for Systems and Components) and GB/t 3766-2021 (Hydraulic Fluid Power-General Rules and Safety Requirements for Systems and Components).
• Special Certifications of Mining Machinery: In line with GB/t 25624-2021 (mining machinery-safety Requirements), ISO 12140:2017 (grader-performance test method) and Russian GOST-R mining equipment certification. Rated as internationally leading by the China Machinery Industry Federation, filling the gap in China’s large-scale mine motor graders.

The Industry Distribution of Typical Customers

The XCMG GR5505T has gained widespread recognition and adoption across various industries, with the following being the top three application sectors.

1. Transnational Super-Large Open-Pit Coal Mines (50%)

Representative customers include Rio Tinto Group, China National Energy Group and Yanzhou Coal Industry International Company. GR5505T is used to repair mine transportation roads, level the stripping site of deep overburden, repair ore piles and pushing heavy objects. This is a core equipment in the Simandou iron ore project in Guinea.

2. Global Giant Metal Open-Pit Mines (40%)

Representative customers include BHP Billiton, China Minmetals, Codelco, etc. This machine is used to level the sites after stripping high hardness metal ores, building mining roads, trimming slopes and organizing waste dumps. It is batch applied in core mining areas in Australia and Africa.

3. International Super Infrastructure Stripping Project (10%)

Representative clients include China Communications Construction Overseas Business Department, Saudi Aramco Infrastructure, Dubai World Group, etc. GR5505T is used for the infrastructure related to super-large mines, leveling the foundations of deep-water ports, and organizing the site of desert oil field to adapt to high-load conditions such as original terrain reconstruction.

FAQs

Q 1: In the process of mining operations, how to diagnose the problem if the blade has attitude deviation and the classification accuracy decreases?

A: ① Calibrate the position/angle sensors (error margin must be ≤ 0.08 °) and update the attitude compensation algorithm via the XCMG Cloud Platform; ② inspect the backlash in the dual-worm slewing drive (if exceeding 0.2 mm, adjustment or replacement is required); ③ check the pressure of hydraulic system (standard: 38 MPa), remove any impurities from the main spool, and verify the parameters of the load adaptive system.

Q 2: In high dust environment, if the engine frequently triggers alarms, the power output will drop obviously. What is the possible reason?

A: ① Remove the five-stage air filtration system; Clean the primary filter and the oil-bath filter components, and replace the fine filter, nano-filter, and activated carbon filter elements (these should be replaced periodically every 2,000 hours); ② inspect the turbocharger intake duct for dust accumulation and purge it using a high-pressure air gun; ③ check the fuel filter elements for clogging (all three stages of the filtration system must be replaced simultaneously) and verify the atomization performance of the fuel injectors.

Q 3: If the hydraulic system fails to respond after a cold start and the blade can not be operated, how should this be resolved?

A: ① Start the five-stage preheating function (including engine, hydraulic oil, fuel oil, hydraulic system and cab) and wait for 25 minutes until the temperature of hydraulic oil reaches ≥ 25℃; ② inspect the hydraulic lock valve spool (if it is stuck due to low temperatures, disassemble it and replace the seals with low-temperature-resistant perfluoroelastomer seals); ③ vent the air from the hydraulic system (by repeatedly raising and lowering the blade to vent the trapped air), and verify whether the viscosity of hydraulic oil meets the required specifications.

Q 4: In hard rock mining, if the cutting edge of the blade wears too fast, it will continue to be damaged quickly even after replacement. What are the potential problem?

A: ① Use NM 600 wear-resistant blade (characterized by hard cutting edge of tungsten carbide); Ensure the installation gap is ≤ 0.1 mm and securely tighten all anti-loosening bolts; ② adjust the working angle (to avoid direct vertical impact between the blade and hard rock); ③ activate the blade’s automatic obstacle-bypassing function to minimize impact from rocks, and inspect the four-link swing frame for any signs of deformation.

Conclusion

The XCMG GR5505T stands as a testament to engineering focused on power, precision, and durability. It is a reliable and high-performance partner, aiming to solve the most challenging leveling tasks in the fields of road construction, mining and large-scale infrastructure development. If you are looking for a motor grader with stable performance, global export and network support, the GR5505T is an ideal choice. Please contact us immediately for a detailed quotation, a comprehensive product catalogue and a tailor-made transportation plan for your next project.
