Product Overview
As one of the core sectors of XCMG Group, XCMG Road Machinery has been deeply engaged in the road construction equipment field for decades. Focusing on infrastructure scenarios such as highways, municipal engineering, airports, and ports, it has built a full product matrix covering asphalt pavers, road rollers, cold planers, motor graders, road mixers, etc. With the advantages of reliability, efficiency and intelligence, it adapts to the full-process operation needs from subgrade construction, pavement paving to maintenance and repair, and is the preferred equipment brand for road construction and maintenance projects at home and abroad.
Relying on XCMG’s national-level technology R&D center, the road machinery series products integrate core technologies such as intelligent control, energy conservation and environmental protection, and heavy-duty durability. Optimized design for different working conditions, they can flexibly adapt to various road projects such as expressways, urban main roads, rural highways, and airport runways. They can not only meet the large-scale, high-intensity standardized construction needs, but also cope with refined operations under complex terrain and extreme environments, helping road construction projects improve quality, efficiency and reduce costs, and promoting the high-quality development of road infrastructure.
Core Product Series and Function Introduction

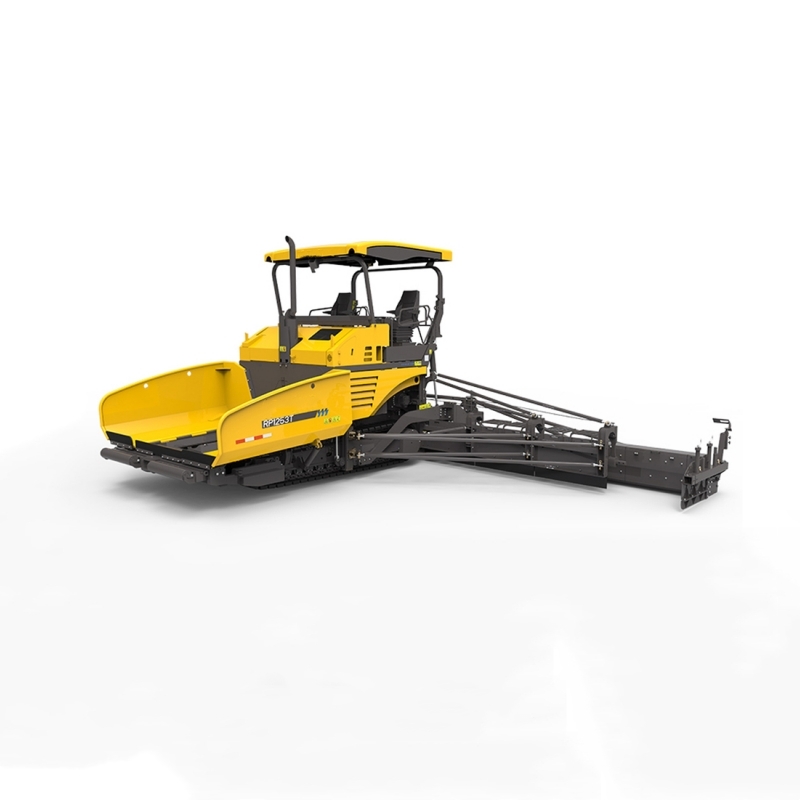

1. Asphalt Paver Series (Core Models: RP1253, RP953)
XCMG asphalt pavers are the core equipment for pavement paving, focusing on “precision paving, uniform flatness, high efficiency and energy saving”. They are suitable for various paving materials such as asphalt mixture and stabilized soil, and are widely used in pavement surface paving operations of expressways, urban roads, airport runways, etc. They can realize flexible adjustment of paving width from 8 to 12.5 meters to meet the paving needs of different road grades.
Core Functions: Adopt intelligent paving control system, which can accurately control paving thickness (error ≤ ±3mm) and paving speed (0-12m/min stepless adjustment) to ensure that the pavement flatness and compactness meet the standards; equipped with a large-capacity hopper (volume ≥15m³), reducing the frequency of feeding and improving continuous operation efficiency; equipped with high-frequency vibration screed, vibration frequency adjustable from 0 to 50Hz, suitable for different particle size mixtures, the paved pavement has no segregation and no waves, and the forming effect is excellent; supports remote monitoring and fault early warning, can collect paving parameters in real time, facilitating on-site management and maintenance.
Core Advantages: Adopt high-power National Ⅵ engine, strong power, energy saving and environmental protection, fuel consumption is 8% lower than similar products in the industry; the screed adopts integral heat treatment process, anti-deformation and wear-resistant, service life is increased by 30%; optimized hydraulic system, stable operation, no jitter during paving, suitable for long-term continuous operation; humanized design of operation panel, easy to learn and use, reducing the labor intensity of operators.

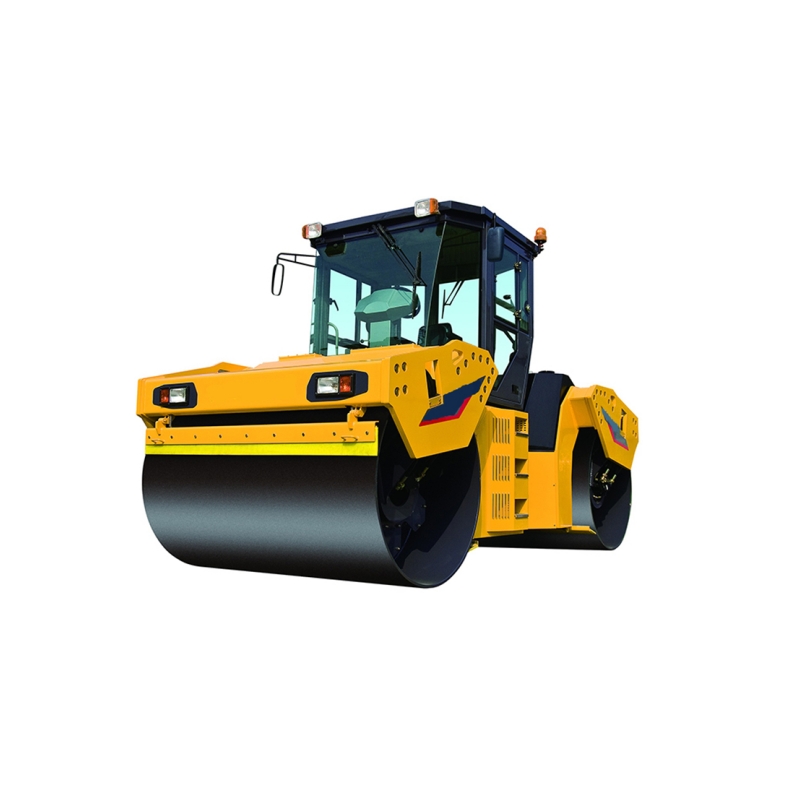

2. Road Roller Series (Core Models: XD133, XS263)
XCMG road rollers cover three categories: single drum, double drum and tire rollers, focusing on “high-efficiency compaction, uniform force and wide adaptability”. They are the key equipment for subgrade and pavement compaction, suitable for various compaction scenarios such as asphalt pavement, cement pavement and subgrade filling. They are widely used in infrastructure projects such as highways, municipal engineering, airports and ports to ensure the bearing capacity and stability of pavement and subgrade.
Core Functions: Single drum road roller is equipped with a super large exciting force system (exciting force up to 500kN), which can quickly compact subgrade filling and gravel cushion, with compaction rate ≥98%; double drum road roller adopts high-frequency vibration technology (vibration frequency 50-70Hz), suitable for asphalt pavement rolling, avoiding pavement sanding and cracking, and ensuring pavement flatness; tire road roller adopts flexible compaction technology, which can perform final compaction on asphalt pavement, improve pavement compactness and flatness, and eliminate wheel marks; equipped with intelligent compaction control system, which can detect compaction degree in real time, automatically adjust exciting force and rolling speed, avoiding over-compaction or missing compaction.
Core Advantages: Adopt anti-vibration cab design, excellent shock absorption effect, greatly improving the comfort of operators; the steel drum is made of wear-resistant materials, treated by special quenching, long service life and not easy to deform; hydraulic walking system, flexible steering, can realize in-situ steering, suitable for narrow site operation; supports fault self-diagnosis function, facilitating quick troubleshooting and reducing downtime for maintenance.
3. Cold Recycler Series (Core Models: XM200K, XM130K)
XCMG cold recyclers are the core equipment for pavement maintenance and repair, focusing on “precision milling, high-efficiency operation, energy saving and environmental protection”. They can be used for old pavement milling, defective pavement repair, pavement leveling, anti-skid layer milling and other operations. They are widely used in maintenance projects such as highways, municipal roads and airport runways, effectively extending the service life of roads and reducing maintenance costs.
Core Functions: Milling width can be flexibly adjusted (0.3-2.0 meters), milling depth can be steplessly adjusted from 0 to 300mm, which can accurately remove the damaged layer and crack layer of old pavement, laying the foundation for new pavement paving; equipped with high-efficiency milling drum, the cutter head is made of wear-resistant alloy material, with high milling efficiency, up to 200-800㎡ per hour; equipped with dust collection system, which can effectively reduce dust pollution during milling and meet environmental protection standards; supports intelligent control, can display milling depth, speed, area and other parameters in real time, facilitating precise operation and data statistics.
Core Advantages: Adopt high-power engine, strong power, no jamming during milling, suitable for high-intensity maintenance operations; the milling drum adopts optimized design, reasonable layout of cutter heads, the milled pavement is flat, no potholes and no steps; the body adopts high-strength steel structure, impact resistance, vibration resistance, suitable for complex pavement working conditions; dust collection efficiency ≥90%, meeting environmental protection construction requirements and improving the operating environment.

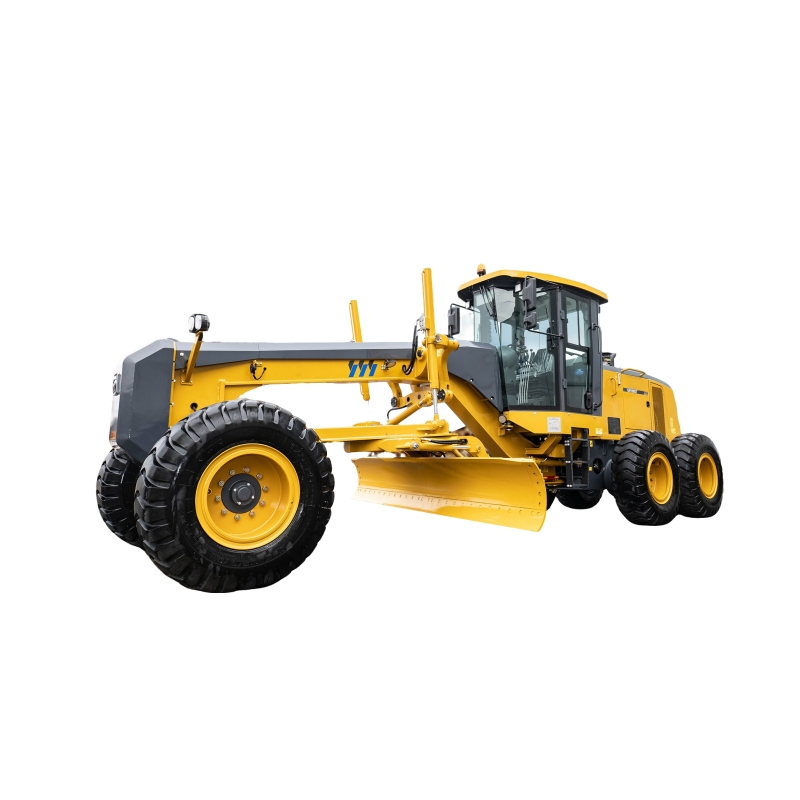

4. Motor Grader Series (Core Models: GR1805, GR215)
XCMG motor graders focus on “precision leveling, flexible operation and multi-functional adaptation”. They can be used for various operations such as subgrade leveling, site cleaning, slope trimming and snow removal. They are widely used in road subgrade construction, municipal engineering, mine sites, airport construction and other scenarios, and are indispensable multi-functional equipment in infrastructure projects.
Core Functions: Adopt intelligent leveling system, which can accurately control the leveling accuracy (error ≤ ±5mm) to ensure that the subgrade and site are leveled up to standard; the scraper can rotate 360°, lift and tilt flexibly, adapting to different leveling and trimming needs; equipped with ripper, push plate and other auxiliary devices, it can realize multi-purpose, improving operation efficiency; supports low-speed and stable operation, facilitating refined trimming of slopes, corners and other parts.
Core Advantages: Adopt hydraulic drive system, flexible operation, quick response, and can realize precise control; the scraper is made of wear-resistant materials, treated specially, not easy to wear and deform; the cab has a wide field of vision, comfortable operation, equipped with air conditioning, suitable for operation in different environments; the body structure is compact, small turning radius, suitable for narrow site operation.
Core Advantages of the Full Series Products
Intelligent Upgrade: The full series of products are equipped with XCMG intelligent control system, supporting remote monitoring, fault early warning, parameter adjustment, data statistics and other functions, realizing intelligent operation and management, reducing labor costs, and improving operation accuracy and efficiency.
Heavy-Duty Durability: Adopt high-strength steel structure, wear-resistant parts and optimized hydraulic system, impact resistance, vibration resistance and corrosion resistance, suitable for long-term and high-intensity operation. The average service life is more than 25% longer than similar products in the industry, reducing equipment failure rate and maintenance cost.
Energy Conservation and Environmental Protection: Equipped with National Ⅵ emission standard engine, optimized power transmission system, low fuel consumption, low noise and up-to-standard emission; some products are equipped with energy-saving mode, which can automatically adjust power output according to operating conditions, further reducing energy consumption; environmental protection devices such as dust collection and exhaust gas treatment meet various construction environmental protection requirements.
Wide Adaptability: Covering full-process road construction equipment, it can flexibly adapt to various scenarios such as expressways, urban roads, rural highways, airports, ports and mines. It can not only meet large-scale standardized construction, but also cope with operations under complex terrain and extreme environments (-40℃~50℃).
Convenient Maintenance: Optimized equipment structure design, strong versatility of parts, easy disassembly; equipped with fault self-diagnosis system, which can quickly locate fault points; a complete after-sales service network nationwide provides timely maintenance, repair and spare parts supply services to ensure equipment attendance.
Application Scenarios
New construction, expansion and maintenance projects of expressways and national provincial trunk highways (subgrade construction, pavement paving, compaction, milling and repair);
New construction and maintenance of urban main roads, municipal roads and community roads, including pavement trimming, pothole repair, snow removal, etc.;
Construction and maintenance of airport runways and aprons, requiring high-precision paving, compaction and milling operations;
Leveling, compaction and cleaning operations of ports, terminals and mine sites;
New construction and upgrading of rural highways and county-township roads, adapting to small and medium-sized construction scenarios and complex terrain operations.
With “technology leadership, reliable quality and thoughtful service” as the core, XCMG Road Machinery relies on a full range of high-quality equipment and full-process services to empower various road infrastructure projects, helping to achieve the goals of “efficient road construction, high-quality pavement and convenient maintenance”. It has become a benchmark brand in the road construction field and provides strong support for the development of global infrastructure.
