Product Details:
Key Features and Applications
Maneuverability for Confined Spaces
The LW180KV features a compact structural design with a 2300mm wheelbase. This allows for a small turning radius, enabling the operator to navigate narrow urban streets, basement projects, and crowded freight yards where larger loaders cannot operate.
Robust Power and Traction
Equipped with a 58kW turbocharged engine, the loader provides high torque and reliable traction. This power ensures the machine can handle heavy material loading and maintain stable travel performance across unpaved construction terrains.
Optimized Hydraulic System
The updated hydraulic technology in the KV-series offers more sensitive control and optimized energy efficiency. This results in smoother movements for hoisting and dumping, reducing cycle times and operational costs during intensive material handling tasks.
Multi-Sector Industry Utility
This mini wheel loader is a versatile tool suitable for:
-
Municipal Engineering: Supporting road maintenance, pipe laying, and landscaping.
-
Logistics & Freight: Efficient loading and unloading of cargo in stations and wharves.
-
Construction: Handling building materials and site grading in residential developments.
Technical Specifications
| Item | Unit | Parameter |
| Rated Operating Load | kg | 1800 |
| Bucket Capacity | m³ | 0.9 ~ 1.1 |
| Machine Operating Weight | kg | 6200 |
| Dump Clearance at Maximum Lift | mm | 2650 ~ 2970 |
| Reach at Maximum Lift | mm | 900 ~ 1000 |
| Wheelbase | mm | 2300 |
| Overall Machine Dimensions (L×W×H) | mm | 5980 × 2060 × 2950 |
| Engine Rated Power | kW | 58 |
| Rated Power/Speed | kW/rpm | 58 / 2400 |
| Max. Travel Speed | km/h | 26 |

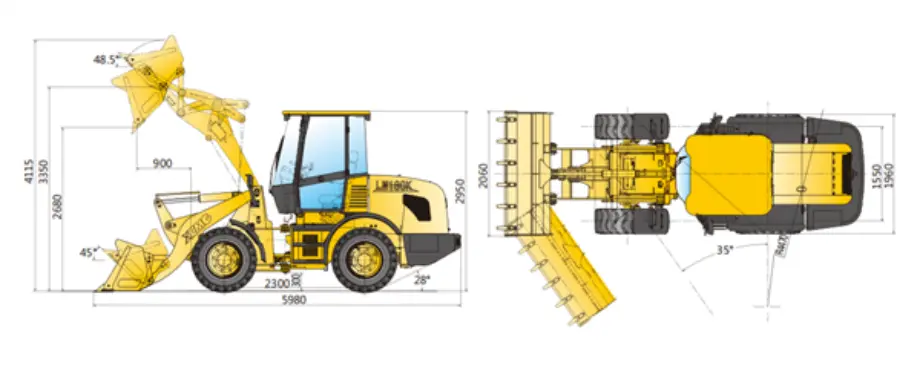

Dimensions and Operating Range
The XCMG LW180KV is designed with stability in mind, featuring an overall length of 5980mm and a width of 2060mm. The dump clearance at maximum lift reaches up to 2970mm, allowing the machine to load standard small-to-medium trucks and hoppers efficiently. Its structural build is reinforced to withstand standard wear in industrial settings while maintaining a weight distribution that minimizes ground pressure.
Supplier Support
We provide comprehensive procurement support for the XCMG LW180KV wheel loader. Our services include technical documentation and assistance with purchasing logistics for international delivery. To support long-term operational uptime, all relevant spare parts and maintenance components for this model are available through our supply network.
Frequently Asked Questions
What is the rated lifting capacity of the XCMG LW180KV?
The LW180KV has a rated operating load capacity of 1800 kg (1.8 tons).
Is this loader suitable for narrow work sites?
Yes, its compact dimensions and zero-radius style maneuverability make it specifically engineered for confined areas like urban streets and indoor yards.
What is the bucket capacity for this model?
The standard bucket capacity for the LW180KV ranges from 0.9 m³ to 1.1 m³, depending on the specific configuration and material density.
What type of engine is equipped in the LW180KV?
The machine is powered by a reliable engine with a rated output of 58 kW, optimized for mini-loader work cycles.
