XCMG XE750G Mining Excavator: The Definitive Large Bucket Excavator Redefining Heavy-Duty Mining Efficiency Worldwide

Introduction: The Efficiency Vanguard of Heavy Mining

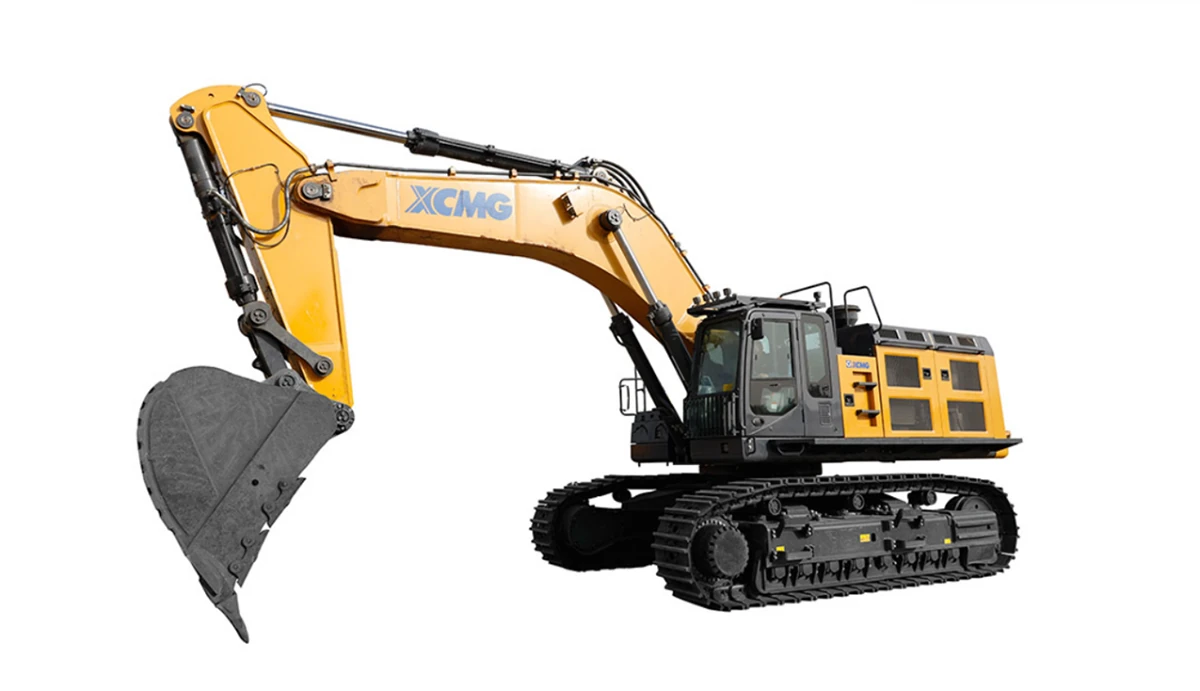

The global mining industry is undergoing a decisive shift. At the center of this transition is the XCMG XE750G mining excavator, a 75-ton large bucket excavator equipped with a 5.2 m³ heavy-duty rock bucket, 563 kW rated power, and 75,000 kg operating weight — purpose-built for strip mining and high-volume loading.

Leveraging the certified XE750G’s capability for 24-hour continuous operation and a monthly availability rate of ≥95%, it serves not merely as an alternative long arm excavator, but establishes a new benchmark for 75-ton class mining excavators.

This guide covers core component engineering, extreme-environment performance validation, and a verified ROI model — providing all the decision-critical data you need when evaluating an excavator for demanding mining applications.

Core Component Technology

1. Power System

This engine is not a generic, off-the-shelf product, but rather a custom-engineered model exclusive to XCMG. It features FFTC pre-injection diesel technology, coupled with a low-speed, high-torque power calibration strategy. This powertrain design concept is consistent with the world’s most advanced long arm excavator platform, but it enables the matching efficiency of the engine and hydraulic system to reach over 95%, and reduces the power recovery time by 25%.

Material Science: The cylinder block and head use high-strength vermicular graphite cast iron; the crankshaft is forged steel with heat treatment — built for continuous heavy-load mining duty.

Patent Application: Patent No. CN113586532B (Excavator Power Follow-Up Control Method) is embedded in the engine-hydraulic collaborative control system, reducing fuel consumption by 15% through real-time load matching. This is the kind of innovation that separates a true large bucket excavator from a basic digging machine.

2. Hydraulic System

The ISSA system uses semi-electronic positive flow control with active variable power management. Pressure loss is reduced by 15%, and composite action efficiency improves by 18%. Large-displacement main pumps and large-bore main valves ensure stable output under the 90-ton-class tracked chassis — a configuration typically reserved for premium long arm excavator designs. It is thanks to this system that the XE750G can maintain a rated hydraulic pressure of 35MPa when the boom, stick, and bucket are working simultaneously—a capability that most competing large bucket excavators cannot consistently match.

3. Work Device

The boom and stick employ large-box-section welding with toe remelting and stress-relief annealing, boosting torsional strength by 40% and extending service life by 50%. This is what allows the XE750G to function as a reliable large bucket excavator even in the most abrasive hard-rock conditions.

Patent Application: Patent No. CN202111332057.8 (Heavy-Duty Work Device Reinforced Structure) applies directly to the boom/stick welding process.

Wear-resistant alloy steel plates line the bucket and stick, with hard-facing on critical contact points — reducing abrasion rates in hard-rock mining by 60%. Every long arm excavator must balance reach with structural integrity, and the XE750G’s reinforced work device ensures that extended digging radius never comes at the cost of durability.

4. Smart Cooling & Cab

An independent temperature-controlled radiator with intelligent reverse-blow dust removal (Patent No. CN102644532A) boosts high-temperature cooling efficiency by 30% while reducing noise by 5dB. Even in a long arm excavator working under extreme thermal load, the system maintains stable oil temperatures.

The cab features positive micro-pressurization dust sealing, an air-suspension seat, and a 10-inch smart instrument panel. Dust isolation rate: ≥99%.

Patent Application: Patent No. CN201920390165.2 (Positive Pressurization Dust-Proof Cab) ensures operator health in high-dust mines — a feature increasingly demanded in modern large bucket excavator specifications.

Product Details

International Quality: Certifications & Safety Standards

The XE750G is not a regional product. It is a China excavator built to global standards, and its certification portfolio proves it.

• Patent No.: CN113586532B (Excavator Power Following Control Method): Applied to the engine-hydraulic coordinated control system, enabling real-time load matching and reducing fuel consumption by 15%.
• Patent No.: CN202111332057.8 (Heavy-Duty Working Device Reinforced Structure): Applied to the boom/stick welding process, featuring remelting annealing + large box structure design, extending service life by 50%.
• Patent No.: CN102644532A (Intelligent Cooling Reverse-Blowing System): Applied to the radiator module, enabling automatic dust removal and improving heat dissipation efficiency by 30% under high-temperature working conditions.
• Patent No.: CN201920390165.2 (Positive Pressure Dustproof Cab): Applied to the cab sealing and pressurization system, achieving a dust isolation rate of ≥99%.

Extreme Environment Survival: All-Weather Operational Design

Temperature Extremes (-40°C to 120°C)

The XE750G handles a temperature range no other large bucket excavator in its class can match. At -40°C, the engine pre-heating and hydraulic oil heating system gets the machine running within 15 minutes, with insulated fuel lines preventing wax buildup. At 120°C, smart thermal control and high-temperature seals keep oil temperatures stable at ≤85°C with no seal degradation. Even specialized long arm excavator models from European brands typically max out at -25°C to 55°C.

High Dust / High Humidity Mines

Dust protection relies on three-stage air filtration plus hydraulic return oil fine filtration, reducing dust ingress by 95%. Critical components carry IP67 ratings. Moisture protection comes from waterproof coatings on electrical components and sealed connectors, eliminating short-circuit risk in humid conditions. For any large bucket excavator operating in metal mines across Yunnan or Xinjiang, these protections are not optional — they are essential.

Heavy Load / Steep Terrain

The 90-ton-class track chassis handles 30° slopes under full load. Hydraulic system pressure redundancy allows peak pressure of 40MPa without leakage. Real-time pressure and temperature monitoring triggers automatic power reduction on overload, cutting failure rates by 70%. For operators who need a long arm excavator capable of working in extreme conditions, the XE750G’s environmental envelope is unmatched.

Real-World Case Study: Inner Mongolia Open-Pit Coal Mine

An open-pit coal mine in Inner Mongolia with annual capacity of 1 million tons. The mine had been operating a foreign-brand long arm excavator for over three years.

The previous machine consumed 49L/h, averaged 3 breakdowns per month, and caused monthly production losses exceeding 80,000 tons. Fuel costs alone surpassed ¥120,000/month. The mine needed a large bucket excavator that could run continuously without sacrificing efficiency.

The mine replaced the foreign unit with the XCMG XE750G large bucket excavator, configured with the 5.2m³ heavy-duty rock bucket, ISSA intelligent hydraulics, and FFTC fuel-saving technology. As a China excavator, the XE750G was initially met with skepticism — but the data silenced doubters within weeks.

Results (Verified Data): Hourly fuel consumption dropped from 49L to 43L, a reduction of 12.2%. Monthly availability jumped from approximately 82% to 98%. Monthly production increased by 120,000 tons, a 12% gain. Annual fuel savings exceeded 20,000 liters, worth ¥140,000. The annual comprehensive benefit surpassed ¥1,600,000.

ROI Model: The Numbers That Matter

Here is the investment return calculation for a single XE750G unit, based on verified operating parameters. This model applies to any operator evaluating a large bucket excavator for high-volume mining.

Assumptions: Annual operating days: 300 days × 20 hours = 6,000 hours. Diesel price: ¥7/L. Mining net profit: ¥5/m³. Purchase price: ¥3,800,000.

Fuel savings alone amount to 3L/h × 6,000h × ¥7 = ¥126,000 per year. Efficiency gains from the 100m³/h higher loading rate yield 100m³/h × 6,000h × ¥5 = ¥3,000,000 annually. Downtime reduction — eliminating 2 breakdowns per month — saves 2 × 12 × ¥50,000 = ¥1,200,000 per year. Maintenance savings add another ¥80,000. The total annual benefit reaches ¥4,406,000, producing a first-year ROI of 116%.

This ROI model confirms the China excavator XE750G as one of the highest-return large bucket excavator investments available today.

FAQs

Q1: How should I address excessive hydraulic system oil temperatures?

A: Check if the radiator is clogged (activate the reverse-blowing function); clean the hydraulic oil filter element; check the hydraulic oil level and quality; and avoid performing combined movements under full load for extended periods.

Q2: What are the common causes of insufficient engine power?

A: Clogged air filter; dirty fuel filter element; carbon buildup in the fuel injectors; hydraulic system overload; or faults in the engine’s intake/exhaust system.

Q3: How do I switch between “Breaking Mode” and “Excavating/Loading Mode”?

A: Access the menu via the 10-inch instrument panel in the cab, then select either “Breaking Mode” or “Excavating/Loading Mode.” The system will automatically adjust the hydraulic flow and pressure; the switching process takes ≤10 seconds.

Q4: What precautions should be taken when starting the machine in extremely cold regions?

A: Activate the engine pre-heating and hydraulic oil heating functions in advance, and allow the engine to warm up at idle speed for 5–10 minutes. Avoid performing heavy-load operations while the machine is still cold. Use specialized -35# diesel fuel.

Q5: Which attachments are compatible with the XE750G?

A: The standard configuration includes a 5.2 m³ heavy-duty rock bucket. Optional attachments include the Model 248 hydraulic breaker, narrow bucket, log grapple, and hydraulic shear, making it suitable for a wide range of scenarios such as breaking, stripping, and truck loading.

Conclusion

The XCMG XE750G mining excavator represents the current state-of-the-art in Chinese excavator manufacturing technology. Whether operating in cement mines or undertaking large-scale infrastructure earthworks, the XE750G handles the task with ease, having been purpose-built to withstand the most demanding working conditions.

If you are interested, please feel free to contact us at any time to request a quotation; we would be happy to discuss specific return-on-investment figures with you.
